Lineare™

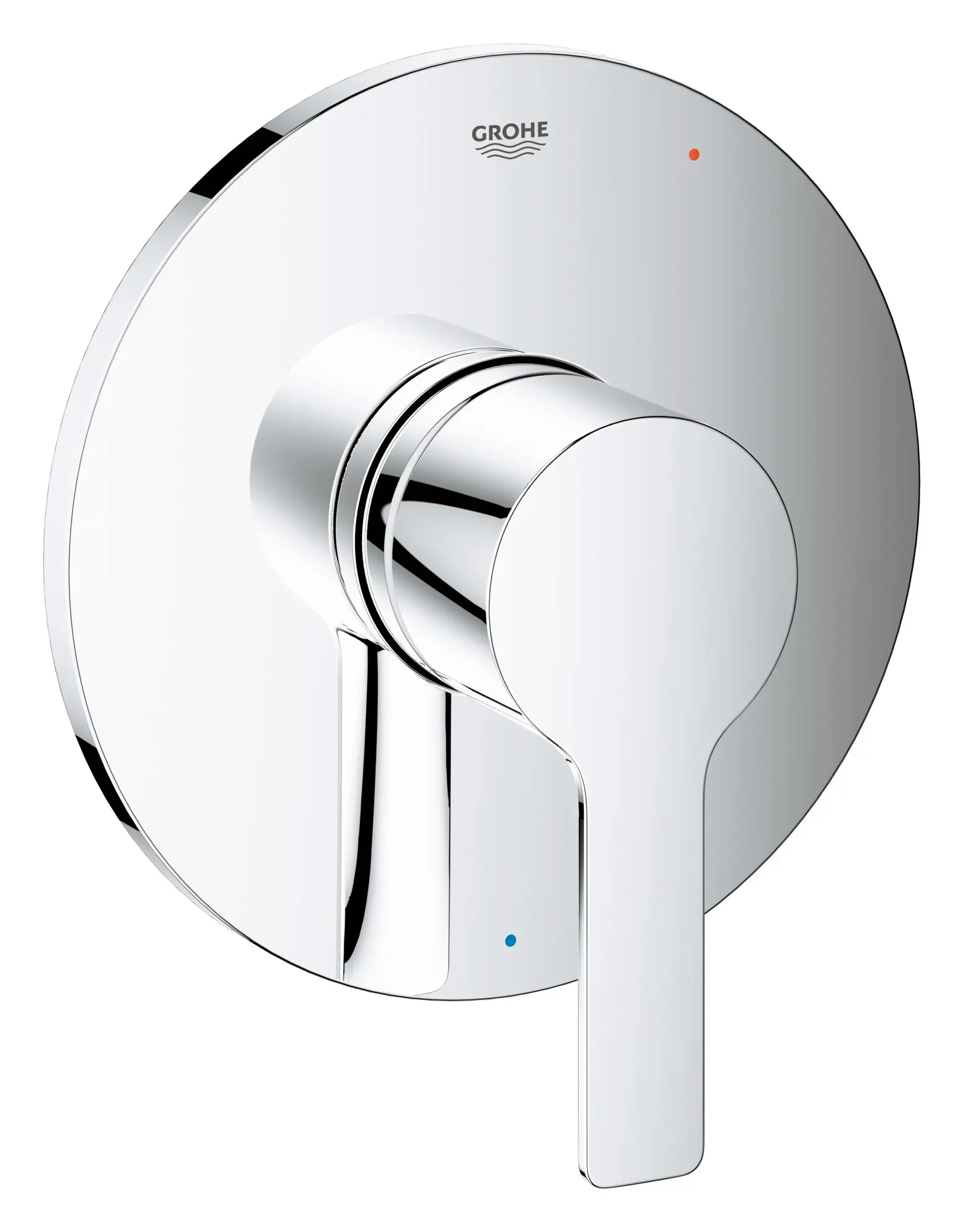

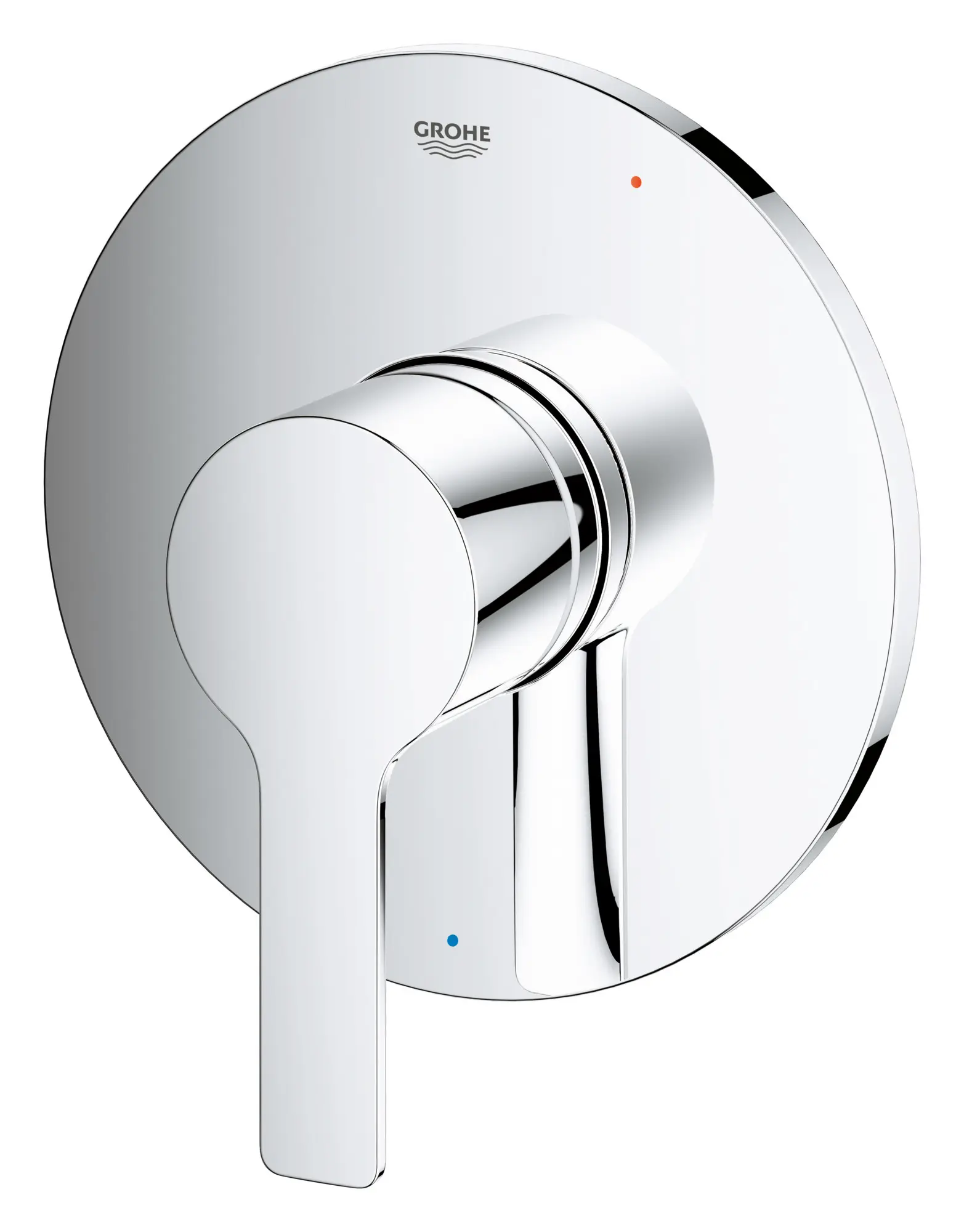

Pressure Balance Valve Trim with Cartridge

29330000 DISCONTINUED
List Price: $0.00
ADA Compliant Enjoy More Rewards LIXIL Select
Items REQUIRED for Install
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Includes one-piece cartridge to simplify installation and maintenance
  • Double ceramic pressure balance cartridge features a ceramic disc mixing valve and a ceramic balancing spool
  • Ceramic disc mixing valve ensures a lifetime of drip-free performance and smooth\nhandle operation
  • Ceramic balancing spool maintains a constant water temperature
  • Integrated check valves are engineered to eliminate cross flow
  • Adjustable hot limit safety stop reduces the risk of accidental scalding
  • Offers a wide comfort zone to fine tune to the desired temperature
  • For use with GrohSafe 3.0 rough-in valves, 35110, 35111, 35112, 35113, 35114 not sold in Canada, 35115, or 35116, each sold separately
Technical Features
  • GROHE LongLife finish
  • GROHE SilkMove
  • Metal handle
  • Metal trim plate with GROHE QuickFix
  • Includes pressure balance cartridge with double ceramic technology
  • 5.2gpm (bottom) and 3.0gpm (top port) at 45psi (19 L/min)
  • Requires GrohSafe 3.0 Pressure Balance Rough Valve (35 110), (35 111), (35 112), (35 113), (35 114 not sold in Canada), (35 115), or (35 116) (sold separately)
Description
Net Weight
SKU
Color
List Price USD
Pressure Balance Valve Trim with Cartridge
1 lb (0.6 kg)
29330000
0
293302430
0
29330A00
0
29330EN0
0
29330GN0
0
Required Components (Not Included)
Pressure Balance Rough-In Valve 1/2" Universal
2 lb (0.8 kg)
35110000
0
spacer
Pressure Balance Rough-In Valve 1/2" PEX Crimp (ASTM F1960) Inlets
2 lb (0.8 kg)
35111000
0
spacer
Pressure Balance Rough-In Valve 1/2" PEX Cold Expansion (ASTM F1960) Inlets
2 lb (0.8 kg)
35112000
0
spacer
Pressure Balance Rough-In Valve 1/2" Stub-out Inlets/Outlets
2 lb (0.8 kg)
35113000
0
spacer
Pressure Balance Rough-In Valve 1/2" CPVC Inlets
2 lb (0.9 kg)
35114000
0
spacer
Pressure Balance Rough-In Valve 1/2" PEX Crimp (ASTM F1807) Elbow Inlets
2 lb (0.9 kg)
35115000
0
spacer
Pressure Balance Rough-In Valve 1/2" PEX Cold Expansion (ASTM F1960) Elbow Inlets
2 lb (0.9 kg)
35116000
0
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: GROHE
Category: Bathroom Faucets
Color / Finish: Chrome (G00)
Collections: Lineare™
Faucet Type: Bath Trim
Handle Material: Metal
Handle Type: Lever
Fitting Material: Zinc
Fixture or Fitting Material: Zinc
Kitchen or Bathroom: Bath
LIXIL Select: Yes
Height: 173
Length: 60
Length: 60
Width: 158
Residential or Commercial: Residential
Subcategory: Bath Trim Bathroom Faucets
Valve Type: Pressure Balance Valves
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions
