Eurocube

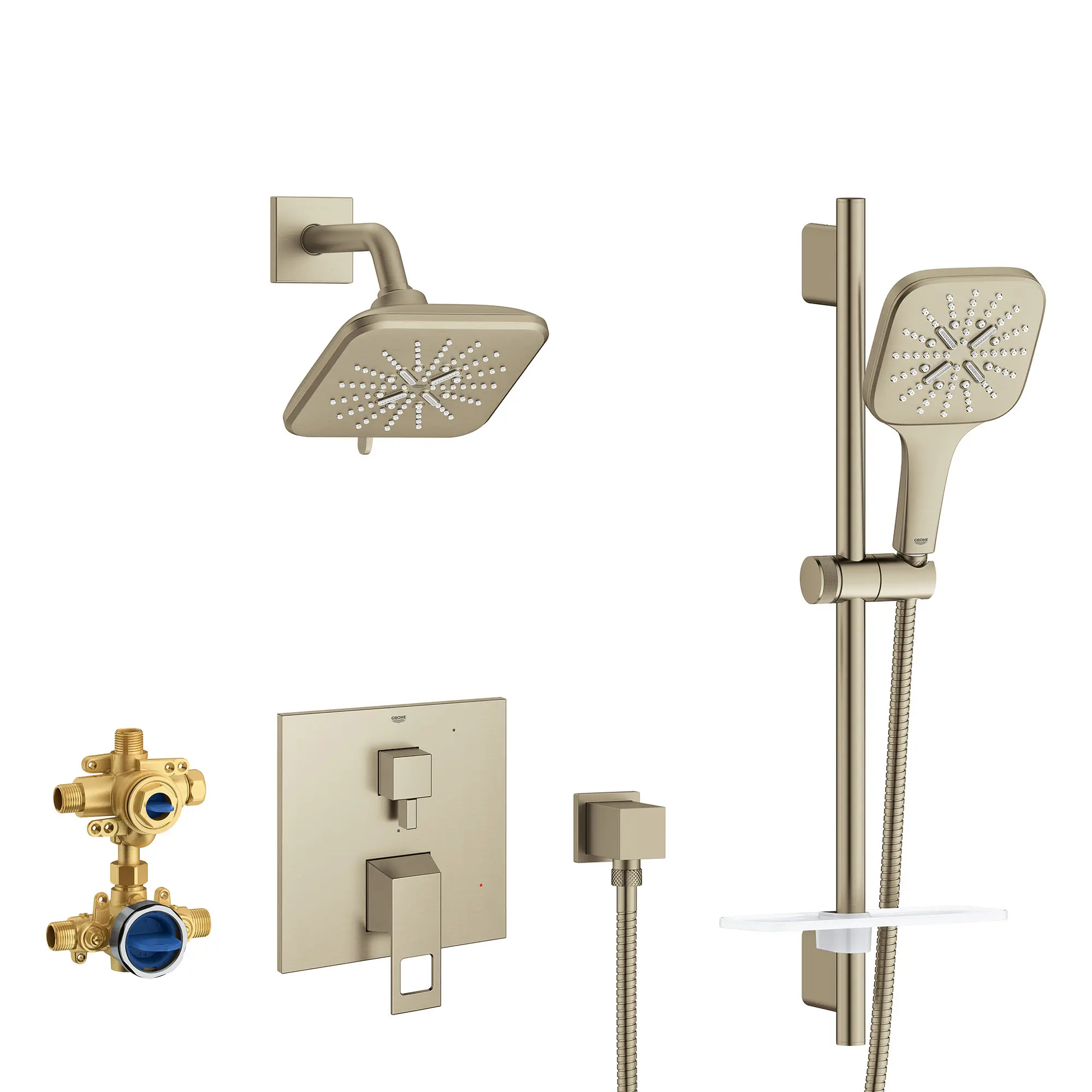

Eurocube 2-Handle Pressure Balance Shower Bundle

The GROHE Eurocube Pressure Balance Shower Set combines precise geometric lines with outstanding reliability for the well-appointed bathroom. Set includes the Rainshower SmartActive shower head and Rainshower SmartActive hand shower, both equipped with controls to easily switch between 3 spray patterns.

Brushed Nickel 29433EN0 DISCONTINUED
List Price: $997.00
Cal Green CEC Certified Enjoy More Rewards LIXIL Select Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Set includes:
  • Eurocube Pressure Balance Valve Trim with 2-way diverter with cartridge that lets you alternate between 2 water outlets and features double ceramic discs for smooth operation and a lifetime of drip-free performance (29 422)
  • GrohSafe 3.0 Pressure Balance Rough Valve with integrated diverter for 2-way or 3-way operation (35 117)
  • Rainshower SmartActive 6 ½” shower head features GROHE SmartToggle lever to easily switch from Rain to Active Massage to Jet sprays, 1.75 gpm (26 797)
  • Relexa 6 ¼" Shower Arm with square flange (26 633)
  • Rainshower SmartActive 24” Shower Set with 3-spray hand shower featuring GROHE SmartTip control to easily alternate between Rain, Active Massage and Jet sprays. Also includes 24” shower bar with adjustable hand shower holder, EasyReach tray and metal hose, 1.75gpm (26 585)
  • Euphoria Cube Wall Union (26 634)
Technical Features
  • Includes Eurocube Pressure Balance Valve Trim with 2-Way Diverter (29 422)
  • Includes GrohSafe 3.0 Pressure Balance Rough Valve with Integrated Diverter (35 117)
  • Includes Rainshower SmartActive 6 ½” shower head, 3 sprays, 1.75gpm (26 797)
  • Includes Relexa 6 ¼" shower arm with square flange (26 633)
  • Includes Rainshower SmartActive 24” Shower Set, 3 sprays, 1.75gpm (26 585)
  • Includes Euphoria Cube wall union (26 634)
  • Double check valves included
  • Max. flow rate: 1.75gpm (6.6L/min)
Description
Net Weight
SKU
Color
List Price USD
Eurocube 2-Handle Pressure Balance Shower Bundle
16 lb (7.4 kg)
29433EN0
Brushed Nickel (GEN)
997
29433000
Chrome (G00)
1141
29433A00
Hard Graphite (GA0)
2628
29433GN0
Brushed Cool Sunrise (GGN)
2628
Separate Components
24" Shower Slide Bar Kit - 3 Sprays, 1.75 gpm (6.6 L/min)
4 lb (1.8 kg)
26585000
Chrome
518
26585EN0
Brushed Nickel
699
spacer
6" Shower Arm
1 lb (0.3 kg)
26633000
Chrome
68
26633EN0
Brushed Nickel
92
spacer
Eurocube Wall Union
0 lb (0.2 kg)
26634000
Chrome
123
26634EN0
Brushed Nickel
166
spacer
Shower Head, 6-1/2" - 3 Sprays, 1.75 GPM (6.6 L/min)
1 lb (0.6 kg)
26789000
Chrome
332
26789EN0
Brushed Nickel
448
spacer
EUROCUBE PRESSURE BALANCE VALVE TRIM WITH 2-WAY DIVERTER WITH CARTRIDGE
5 lb (2.2 kg)
29422000
Chrome
450
29422EN0
Brushed Nickel
608
spacer
GROHSAFE 3.0 PRESSURE BALANCE VALVE WITH INTEGRATED DIVERTER
3 lb (1.5 kg)
35117000
No Finish
291
Download Specification Sheet
Brand: GROHE
Cal Green: Yes
Category: Bathroom Faucets
CEC Certified: Yes
Color / Finish: Brushed Nickel
Department of Energy Certified: Yes
Collections: Eurocube
WaterSense: Yes
Fitting Connection Size Input: 12.70
Fitting Material: Zinc,Metal/Plastic
Fixture or Fitting Material: Zinc<multisep/>Metal/Plastic
Input Connection Type: MPT, MNPT or MIP (Male Pipe Thread)
LIXIL Select: Yes
Height: 156.80
Length: 235.00
Width: 165.90
Residential or Commercial: Residential
Subcategory: Bath Trim Bathroom Faucets
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
There are no videos currently available for this product
3D Objects are not currently available for this product
