Features
- One-Piece Cartridge: Simplifies installation and maintenance
- Double Ceramic Pressure Balance Cartridge: Combination of Ceramic Disc Mixing Valve and a Ceramic Balancing Spool in a one-piece cartridge
- Ceramic Disc Mixing Valve: Assures a lifetime of drip-free performance and smooth handle operation
- Ceramic Balancing Spool: Maintains a constant output temperature in response to changes in relative hot and cold supply pressure. Ceramic material is unaffected by mineral deposits and harsh water conditions
- Integrated Check Valves: Engineered to eliminate cross flow
- Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding
- Comfort Zone: Offers a wider shower range to fine tune the desired temperature within the useful temperature zone
- Back-to-Back Capability: Hot and cold can be reversed quickly and easily
Technical Features
- Wall escutcheon
- Metal lever handle
- For uses with Flash® shower rough-in valves
Nominal Dimensions: 3-5/16 in x 7-13/16 in x 7-13/16 in (84 mm x 198 mm x 198 mm)

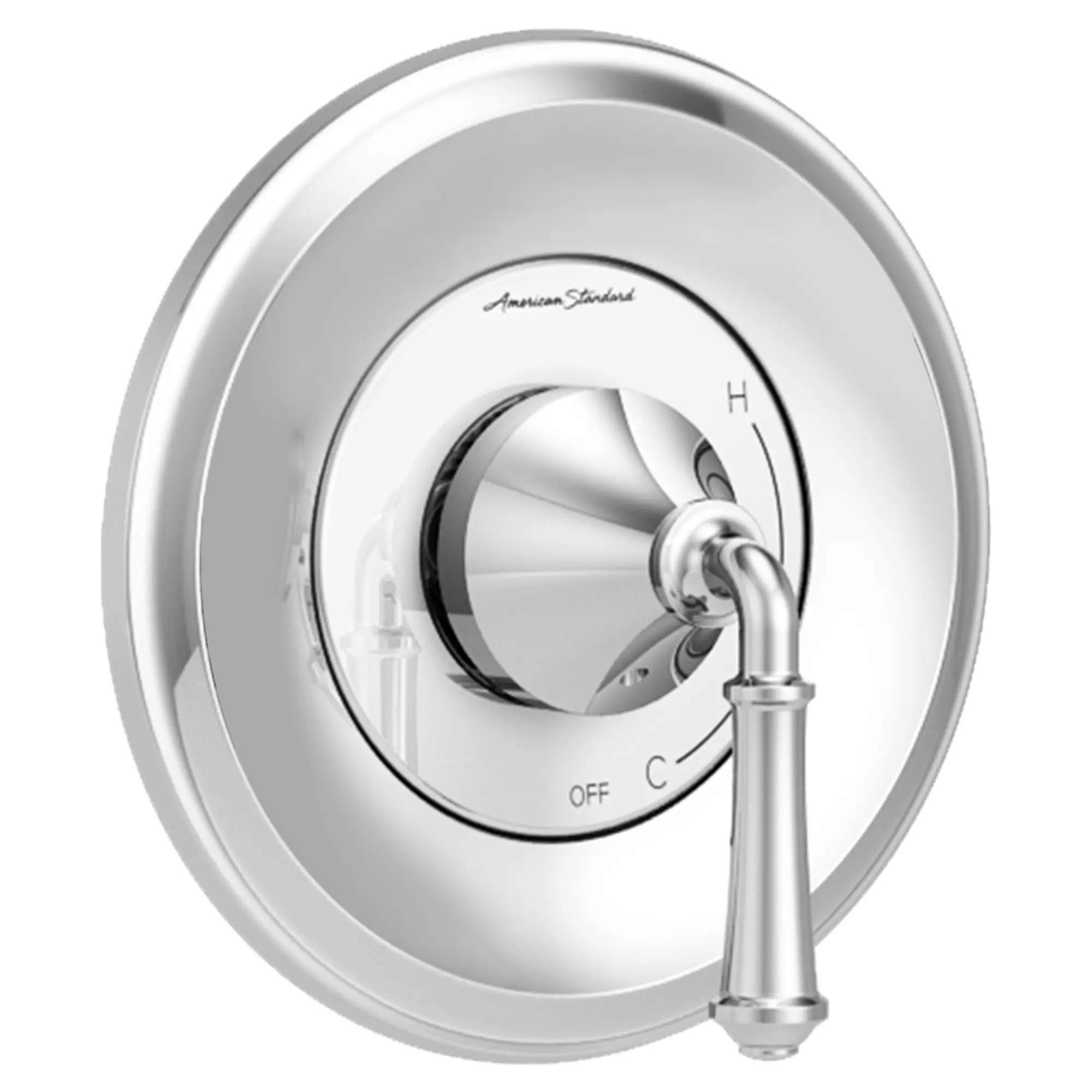

Delancey® Valve Only Trim Kit With Lever Handle
2 lb (0.8 kg)
Chrome (002)
248
Polished Nickel (013)
334
Legacy Bronze (278)
304
Brushed Nickel (006)
334
Brushed Cool Sunrise (GN0)
359
Flash® Shower Rough-In Valve With Universal Inlets/Outlets
2 lb (0.8 kg)
No Finish
80
spacer
Flash® Shower Rough-In Valve With Universal Inlets/Outlets With Screwdriver Stops
2 lb (0.8 kg)
No Finish
115
spacer
Flash® Shower Rough-In Valve With Stub-Outs
2 lb (0.8 kg)
No Finish
85
spacer
Flash® Shower Rough-In Valve With Stub-Outs With Screwdriver Stops
2 lb (0.8 kg)
No Finish
115
spacer
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets for Crimp Ring System
2 lb (0.8 kg)
No Finish
80
spacer
Flash® Shower Rough-In Valve With PEX Inlet Elbows/Universal Outlets for Crimp Ring System
2 lb (0.8 kg)
No Finish
106
spacer
Flash® Shower Rough-In Valve With PEX Inlet Elbows/Universal Outlets With Screwdriver Stops for Crimp Ring System
2 lb (0.8 kg)
No Finish
140
spacer
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets With Screwdriver Stops for Crimp Ring System
2 lb (0.8 kg)
No Finish
115
spacer
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets for Cold Expansion System
1 lb (0.7 kg)
No Finish
80
spacer
Flash® Shower Rough-In Valve With PEX Inlet Elbows/Universal Outlets for Cold Expansion System
2 lb (0.8 kg)
No Finish
106
spacer
Flash® Shower Rough-In Valve With PRX Inlet Elbows/Universal Outlets With Screwdriver Stops for Cold Expansion System
2 lb (0.8 kg)
No Finish
140
spacer
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets With Screwdriver Stops for Cold Expansion System
2 lb (0.8 kg)
No Finish
115
spacer
Flash® Shower Rough-In Valve With CPVC Inlets/Universal Outlets
2 lb (0.8 kg)
No Finish
106
spacer
Flash® Shower Rough-In Valve With CPVC Inlets/Universal Outlets With Screwdriver Stops
2 lb (0.8 kg)
No Finish
140
Delancey® Valve Only Trim Kit With Lever Handle
2 lb (0.8 kg)
Chrome (002)
248
Polished Nickel (013)
334
Legacy Bronze (278)
304
Brushed Nickel (006)
334
Brushed Cool Sunrise (GN0)
359
Flash® Shower Rough-In Valve With Universal Inlets/Outlets
2 lb (0.8 kg)
No Finish
80
spacer
Flash® Shower Rough-In Valve With Universal Inlets/Outlets With Screwdriver Stops
2 lb (0.8 kg)
No Finish
115
spacer
Flash® Shower Rough-In Valve With Stub-Outs
2 lb (0.8 kg)
No Finish
85
spacer
Flash® Shower Rough-In Valve With Stub-Outs With Screwdriver Stops
2 lb (0.8 kg)
No Finish
115
spacer
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets for Crimp Ring System
2 lb (0.8 kg)
No Finish
80
spacer
Flash® Shower Rough-In Valve With PEX Inlet Elbows/Universal Outlets for Crimp Ring System
2 lb (0.8 kg)
No Finish
106
spacer
Flash® Shower Rough-In Valve With PEX Inlet Elbows/Universal Outlets With Screwdriver Stops for Crimp Ring System
2 lb (0.8 kg)
No Finish
140
spacer
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets With Screwdriver Stops for Crimp Ring System
2 lb (0.8 kg)
No Finish
115
spacer
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets for Cold Expansion System
1 lb (0.7 kg)
No Finish
80
spacer
Flash® Shower Rough-In Valve With PEX Inlet Elbows/Universal Outlets for Cold Expansion System
2 lb (0.8 kg)
No Finish
106
spacer
Flash® Shower Rough-In Valve With PRX Inlet Elbows/Universal Outlets With Screwdriver Stops for Cold Expansion System
2 lb (0.8 kg)
No Finish
140
spacer
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets With Screwdriver Stops for Cold Expansion System
2 lb (0.8 kg)
No Finish
115
spacer
Flash® Shower Rough-In Valve With CPVC Inlets/Universal Outlets
2 lb (0.8 kg)
No Finish
106
spacer
Flash® Shower Rough-In Valve With CPVC Inlets/Universal Outlets With Screwdriver Stops
2 lb (0.8 kg)
No Finish
140
Models marked with * are discontinued, but product may still be available while supplies last.
