Delancey

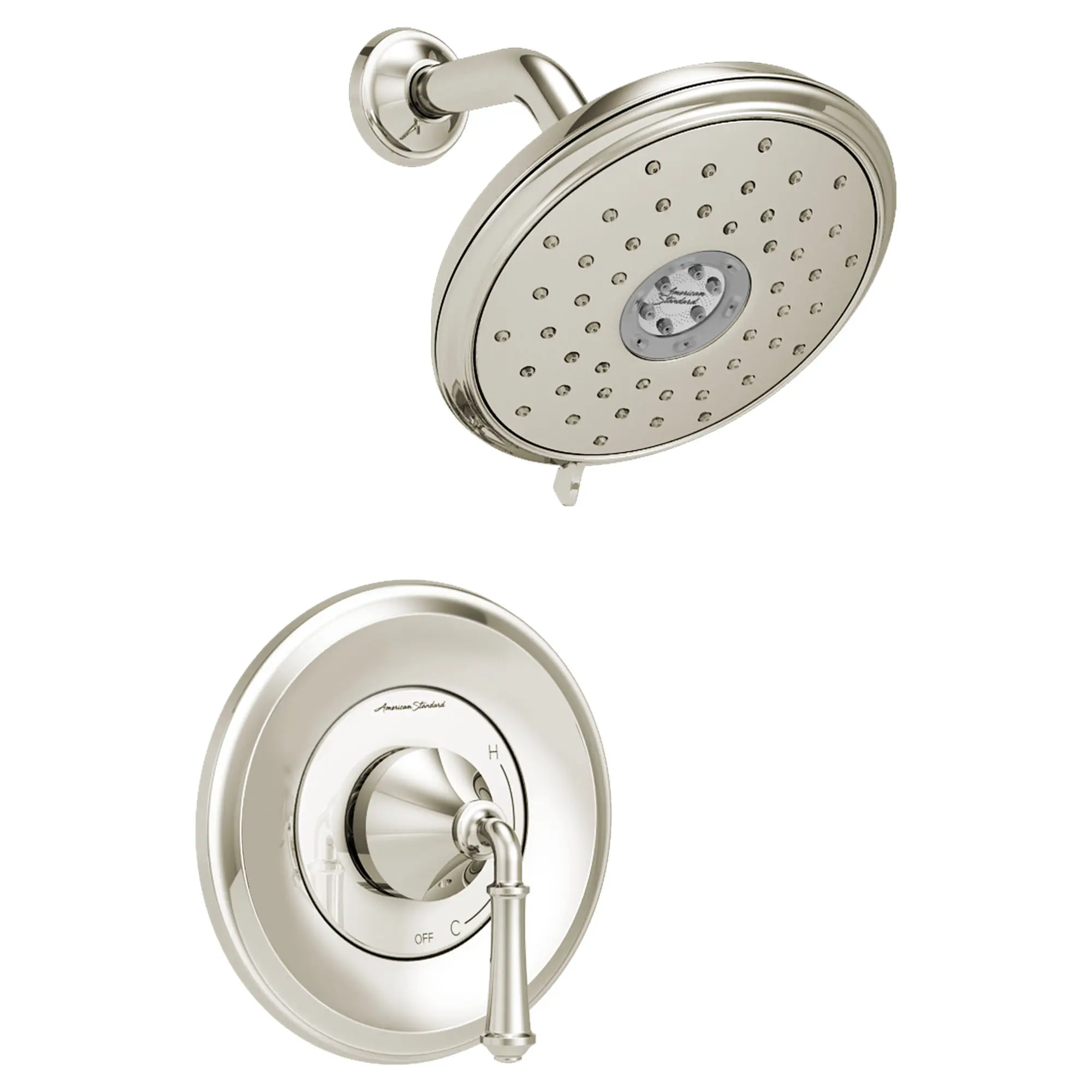

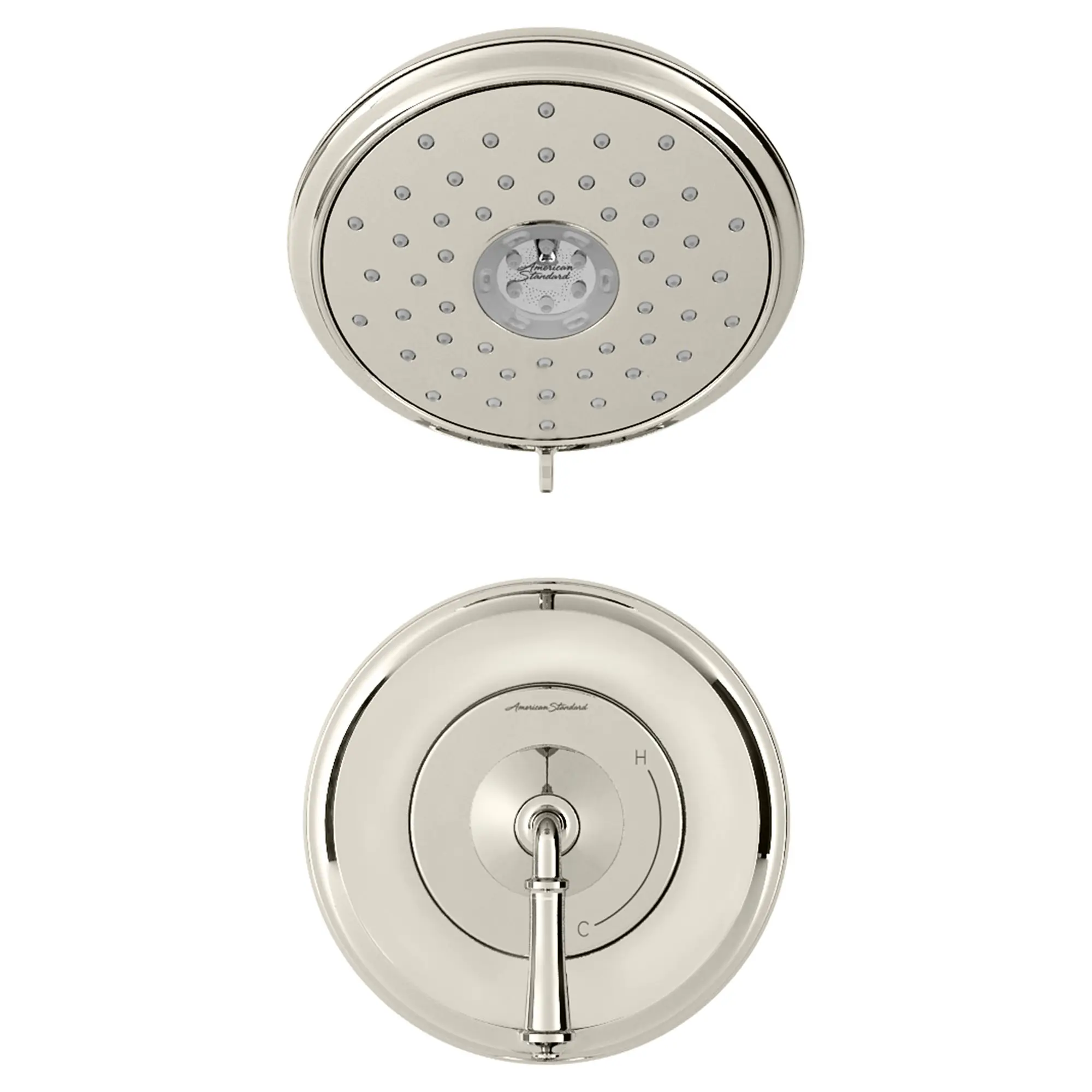

Delancey® 2.5 gpm/9.4 L/min Shower Trim Kit With 4-Function Showerhead and Lever Handle

Inspired by the finer points of classic architecture, the Delancey Bath and Shower Trim from American Standard captures the refined elegance of stately columns and sublime details. It’s equipped with dependable, double ceramic pressure balance technology for consistent water temperature, anti-scald protection, and smooth, flawless operation. Delancey is available in beautiful, tarnish- and scratch-resistant finishes.

Polished Nickel TU052501.013 DISCONTINUED   Substitution Available (TU052507.013)
List Price: $328.00
ADA Compliant
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • One-Piece Cartridge: Simplifies installation and maintenance.
  • Double Ceramic Pressure Balance Cartridge: Combination of Ceramic Disc Mixing Valve and a Ceramic Balancing Spool in a one-piece cartridge.
  • Ceramic Disc Mixing Valve: Assures a lifetime of drip-free performance and smooth handle operation.
  • Ceramic Balancing Spool: Maintains a constant output temperature in response to changes in relative hot and cold supply pressure. Ceramic material is unaffected by mineral deposits and harsh water conditions.
  • Integrated Check Valves: Engineered to eliminate cross flow.
  • Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding.
  • Comfort Zone: Offers a wider shower range to fine tune the desired temperature within the useful temperature zone.
  • Back-to-Back Capability: Hot and cold can be reversed quickly and easily.
Technical Features
  • Showerhead with 2.5 gpm/9.4 L/min maximum flow
  • 4-function showerhead
  • Shower arm and flange
  • Wall escutcheon
  • Metal lever handle
  • For use with Flash® shower rough-in valves
Nominal Dimensions: 9-1/2 in x 7-13/16 in x 7-13/16 in (241 mm x 198 mm x 198 mm)
Description
Net Weight
SKU
Color
List Price USD
Delancey® 2.5 gpm/9.4 L/min Shower Trim Kit With 4-Function Showerhead and Lever Handle
3 lb (1.5 kg)
TU052501.013 *
Polished Nickel (013)
328
TU052501.002 *
Chrome (002)
234
TU052501.278 *
Legacy Bronze (278)
352
TU052501.295 *
Brushed Nickel (006)
328
Substitutions
Delancey® 1.8 gpm/6.8 L/min Shower Trim Kit With Water-Saving 4-Function Showerhead and Lever Handle
3 lb (1.5 kg)
TU052507.013
Polished Nickel
412


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Category: Bathroom Faucets
Color / Finish: Polished Nickel
Department of Energy Certified: Yes
Collections: Delancey
Faucet Type: Bath Trim
Fitting Connection Size Input: 12.70
Handle Height: 3-5/16
Handle Material: Metal
Fitting Material: Zinc
Mount Type: Wall Mount
Fixture or Fitting Material: Zinc
Gallons Per Minute (min-max): 2.5 GPM
Shower Shape: Round
Input Connection Type: NPT (National Pipe Tapered Threads)
Hardware Included: Yes
Number of Jet: 1
Height: 7-13/16
Length: 9-1/2
Width: 7-13/16
Residential or Commercial: Residential
Number of Spray Settings: 3
Subcategory: Bath Trim Bathroom Faucets
Valve Type: Universal Valve
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
