Features
- Water temperature safety – Prevents accidental scalding with adjustable hot-limit safety stop
- Easy installation — Exclusive Speed Connect pop-up drain that uses fewer parts and installs in less time
- Water efficient – EPA WaterSense® certified with 1.2 gpm/4.5 L/min maximum flow rate to save water without sacrificing performance
- Supports sustainability – CEC Listed and CALGreen Compliant
- ADA compliant – For ease of use
- Limited lifetime warranty – Product function and finish is guaranteed to be free from defect. See warranty for details
- 1.2 gallons per minute (4.5 L/min) maximum flow rate helps to save water
- Cast brass valve bodies with flexible hose connections for 6" to 12" (152 to 305 mm) installations
- 1/4 turn washerless ceramic disc valve cartridges
- 20 inch (508 mm) long flexible stainless steel drain cable is pre-assembled to spout
Technical Features
- Brass construction
- Washerless ceramic disc valve cartridge
- Water-conserving 1.2 gpm/4.5 L/min pressure-compensating aerator
- Brass sprout
- Cast brass valve bodies with flexible hose connections for 6"–12" (152–305 mm) installations
- Metal lever handles
- Metal Speed Connect® pop-up drain

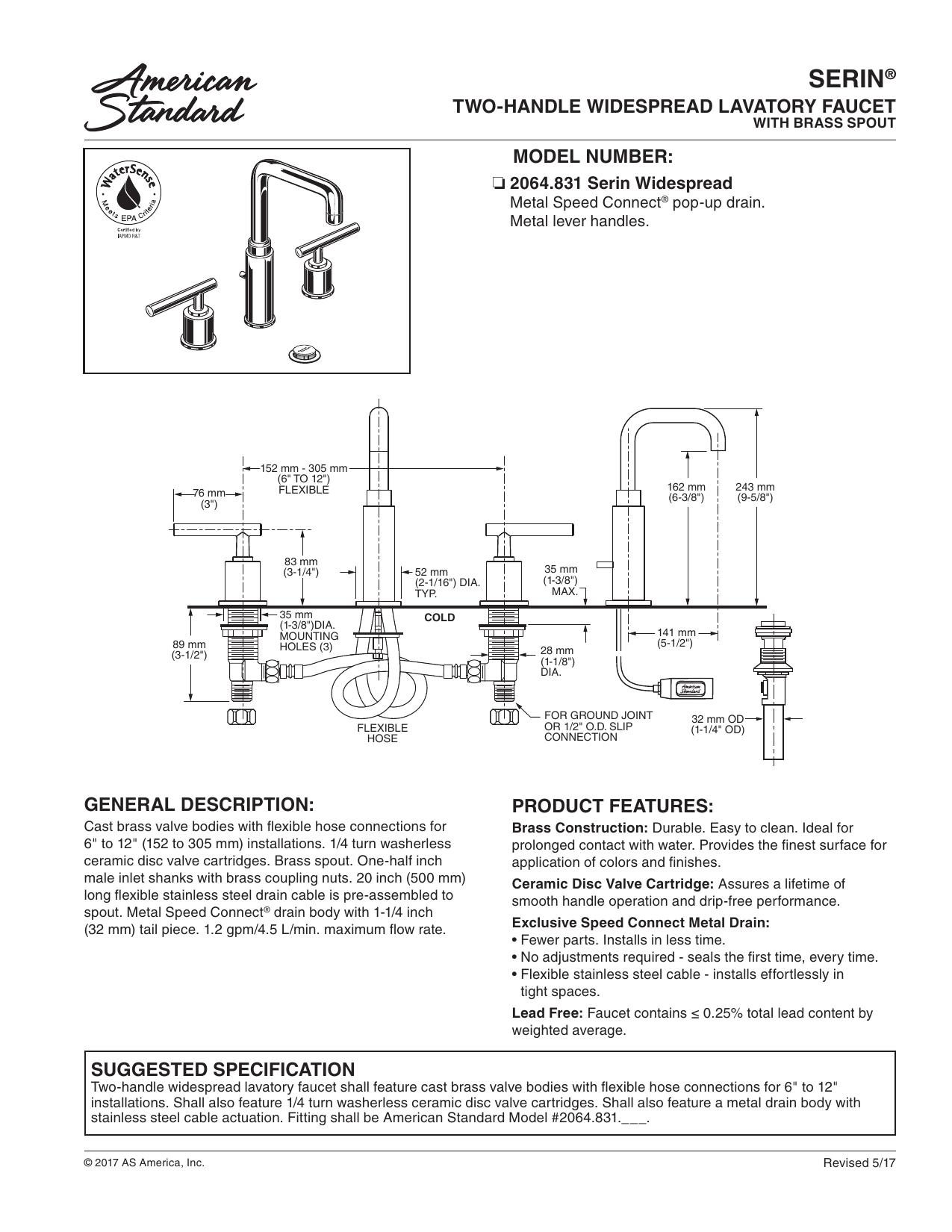

Nominal Dimensions: 6-9/16 in x 18 in x 9-9/16 in (167 mm x 457 mm x 243 mm)
