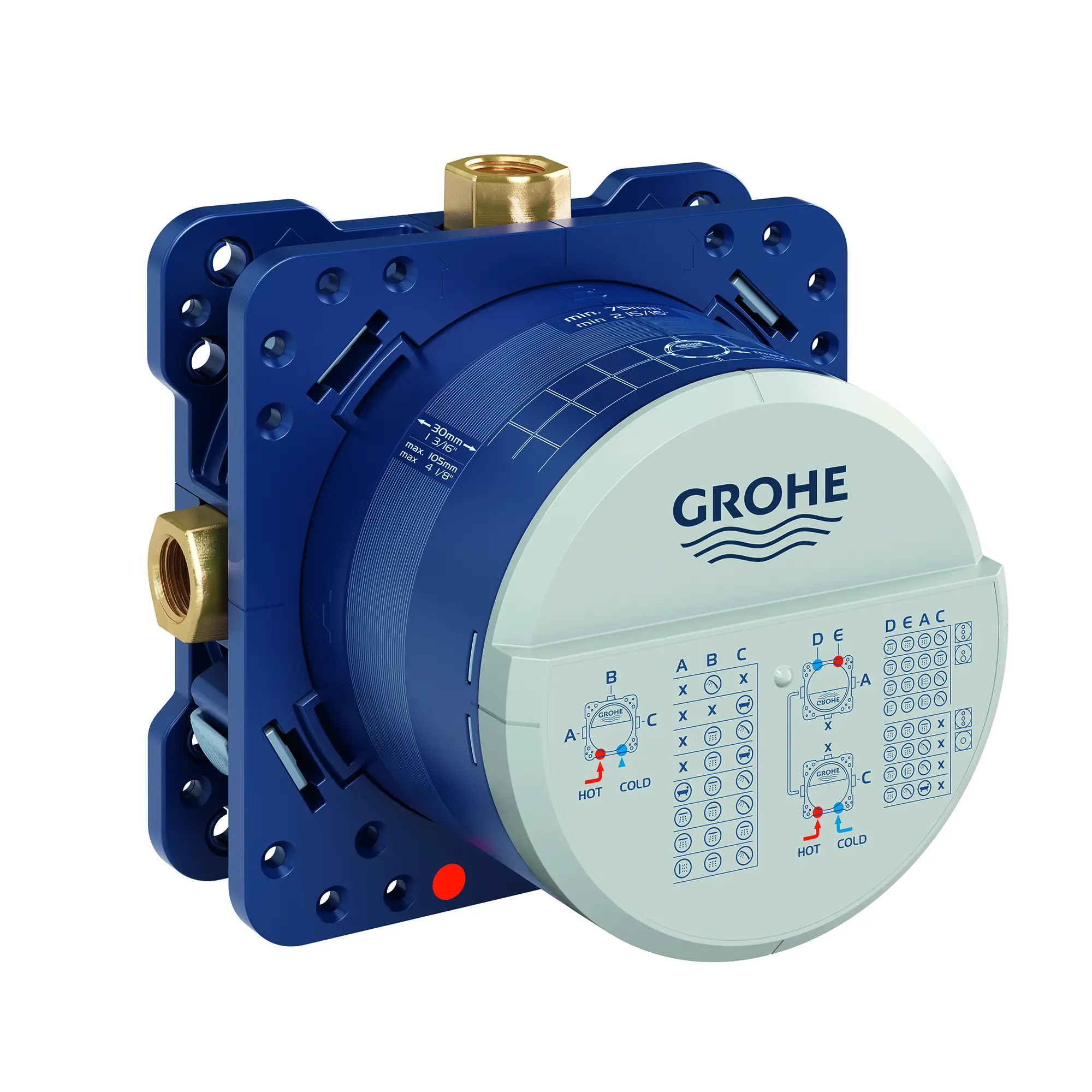

Universal Rough-In Box

The Rapido Smart Box Universal Rough-In provides an innovative solution for creating the ultimate shower and bathing experience. Used in conjunction with a variety of trim packages, sold separately, the rough-in features 3 outlets and 2 inlets for versatility when planning your bathroom design. Suitable for installation on solid or dry walls.

Features
  • 3 outlets 1/2" Female NPT
  • 2 intlets 1/2" Female NPT

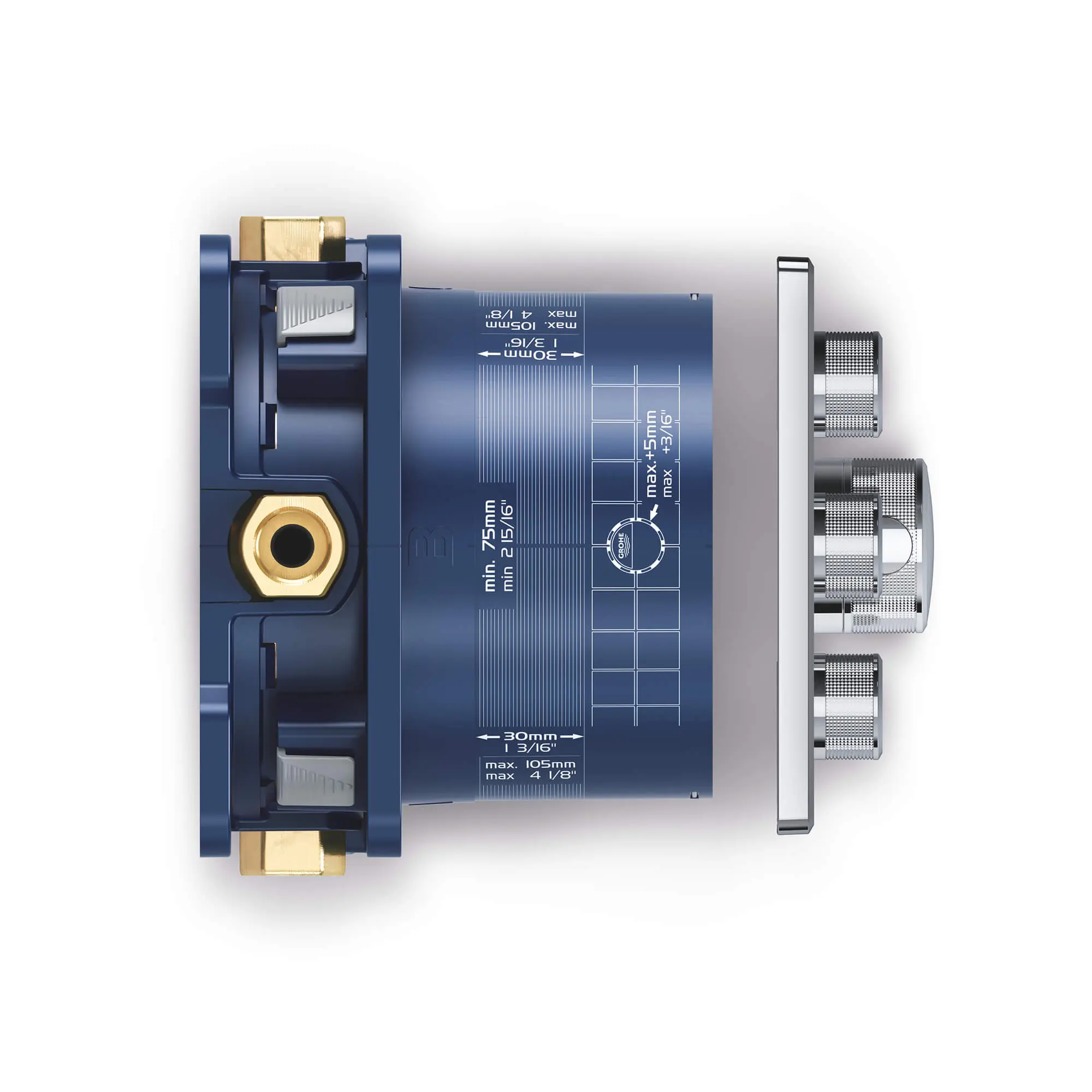

  • Installation depth 3"-4"/75-105 mm

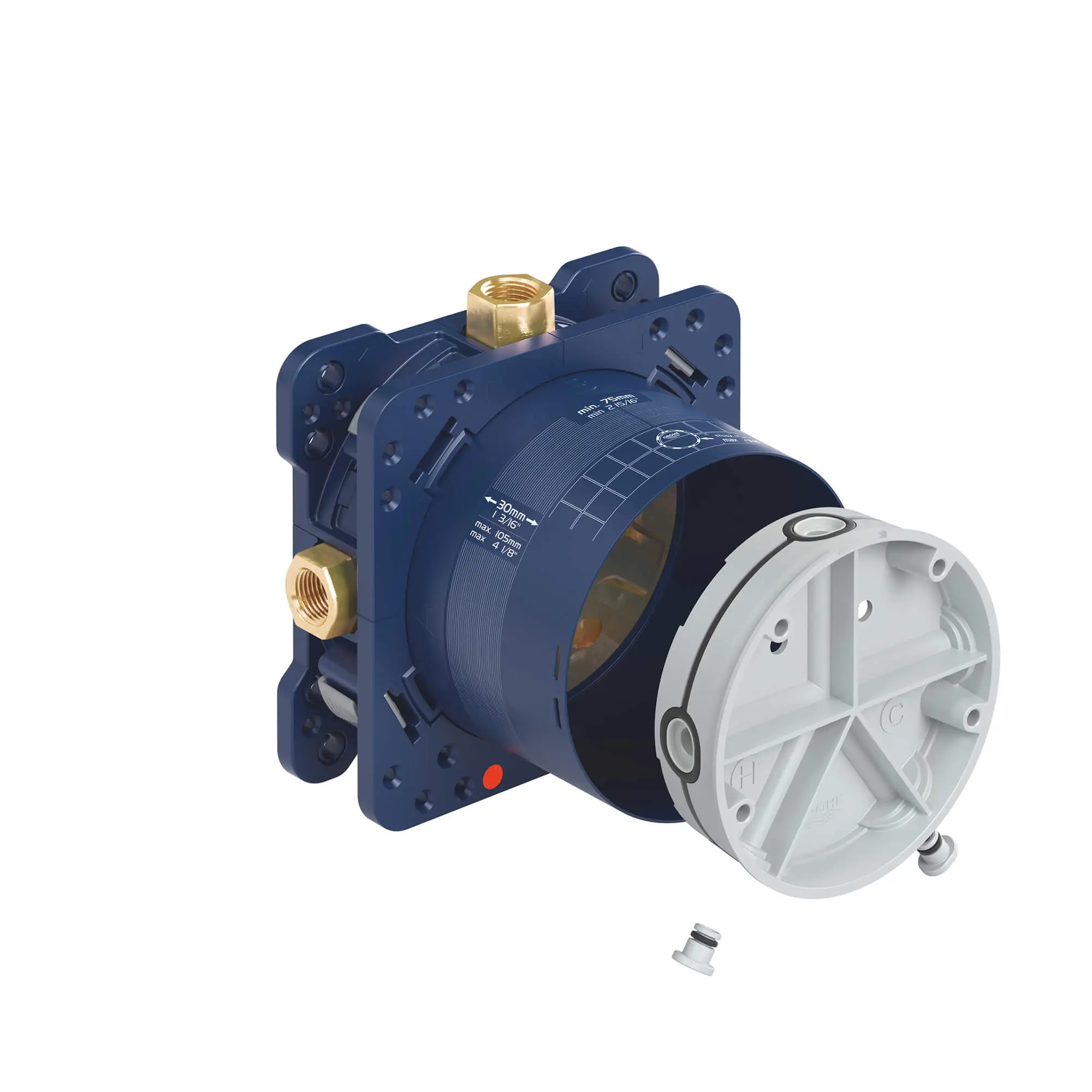

  • Pre-mounted flushing plug
  • Stable built-in box and plaster guard
  • Mounting options for solid walls and dry walls
  • Trim not included
  • Leak-proof housing
Technical Features
  • 3 Outlets 1/2" female NPT
  • 2 Inlets below, 1/2" female NPT

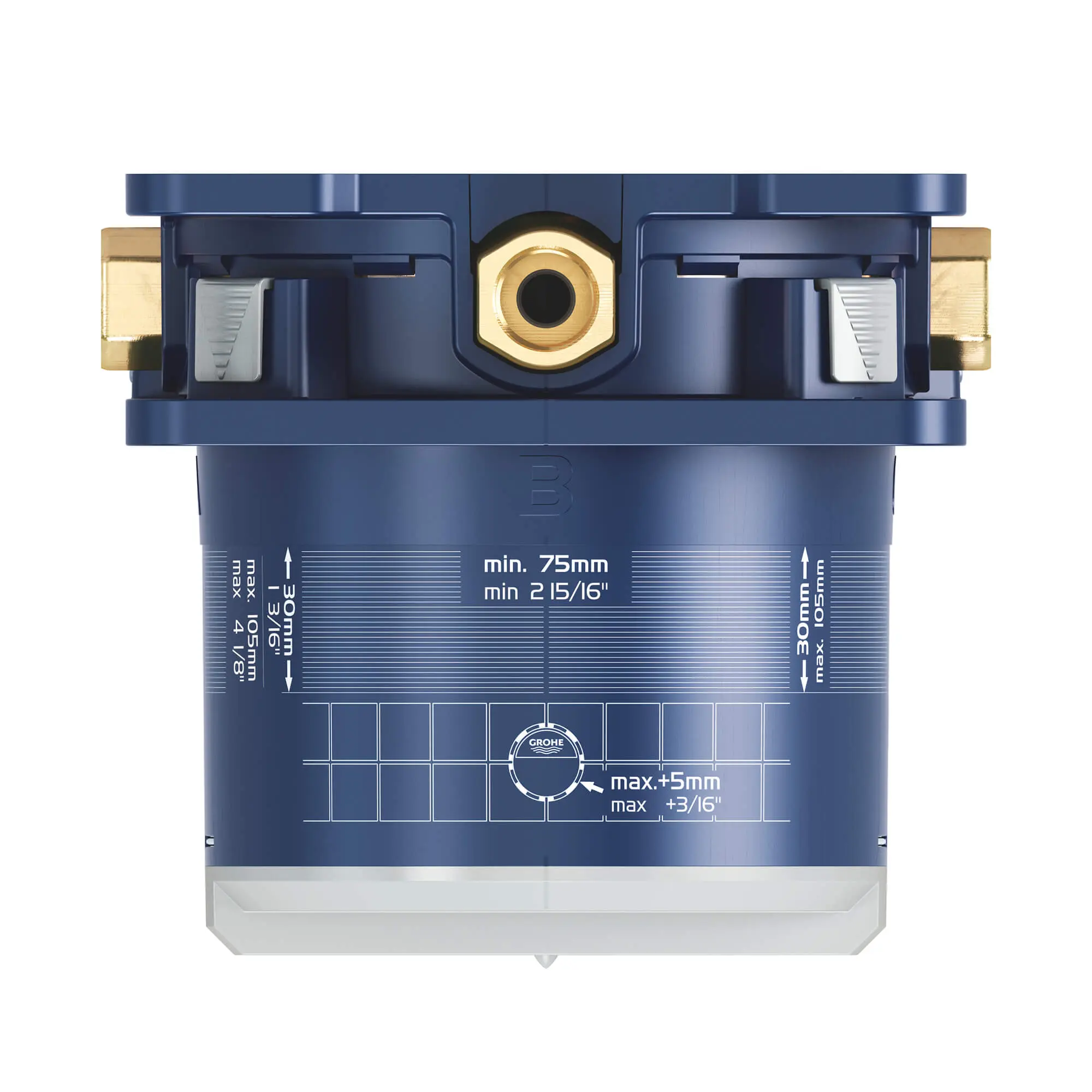

  • Installation depth 3"–4 1/8" (75-105mm)
  • Connection unit in DR brass
  • Includes integrated pre-mounted flushing plug

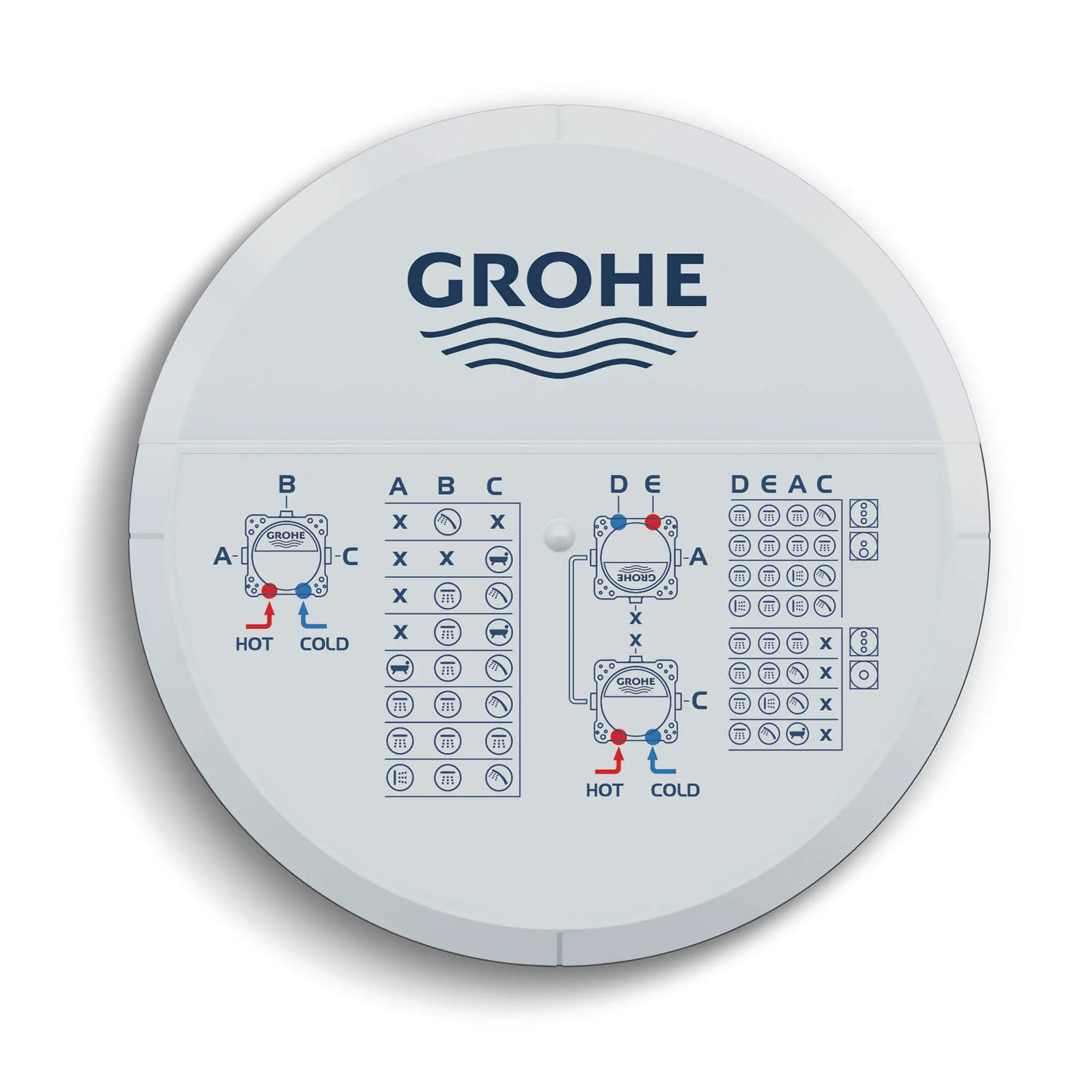

  • Stable built-in box / protective cover
  • Leak-proof housing
  • Service Stops for maintenance of cartridge included with the trim

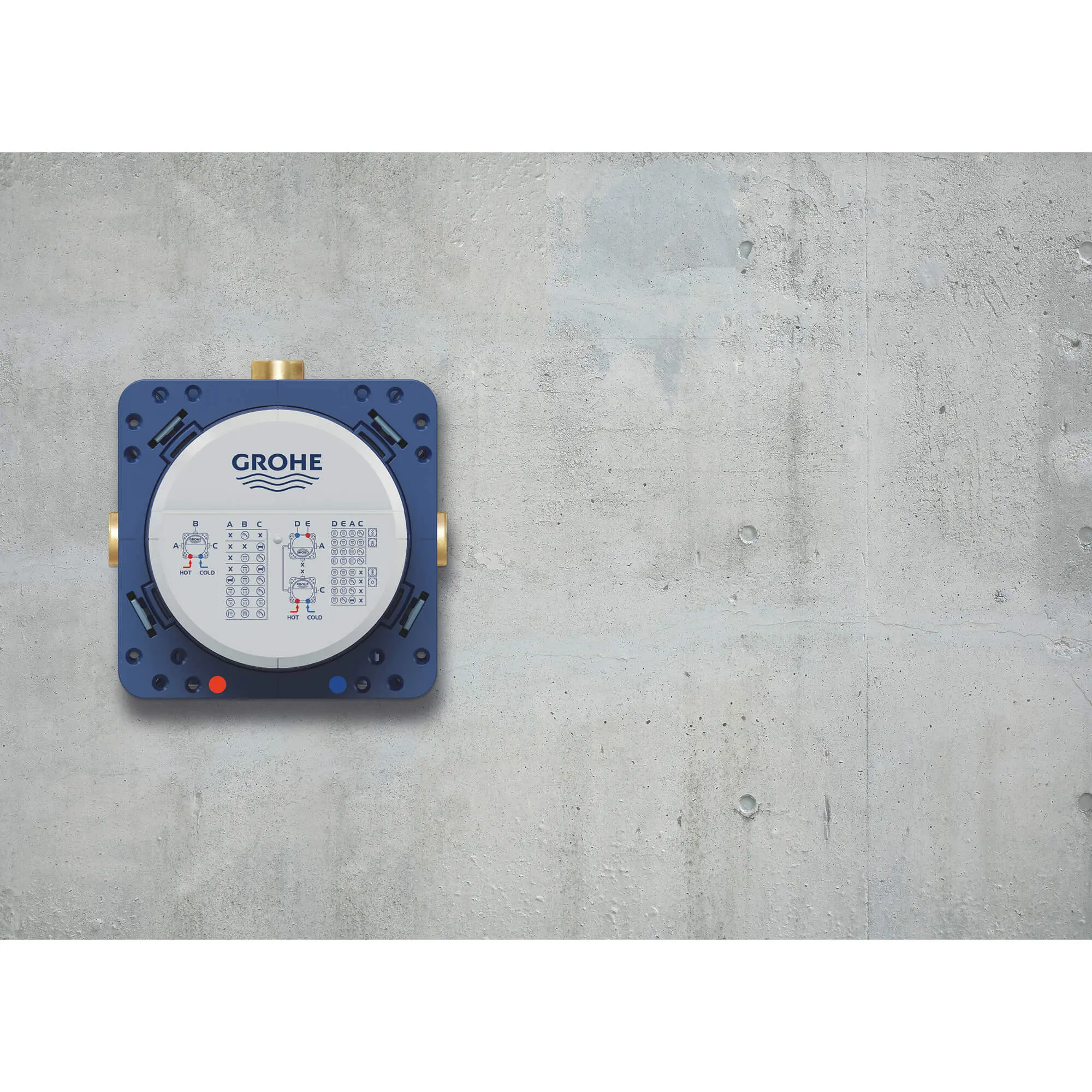

  • Mounting options for solid walls and dry walls
  • Trim sold separately
Nominal Dimensions: 4-1/8 in x 6-15/16 in x 5-11/16 in (105 mm x 176 mm x 144 mm)
There are no additional components to display for this product
Brand: Grohe
Category: Rough-ins Concealed Bodies
Color / Finish: No Finish
Collections: Rapido® Smartbox
Fitting Connection Size Input: 1/2
Fitting Material: Brass
Fixture or Fitting Material: Brass
Input Connection Type: NPT (National Pipe Tapered Threads)
Kitchen or Bathroom: Bath
Number of Input Valves: 2
Number of Output Valves: 3
Output Connection Type: NPT (National Pipe Tapered Threads)
Height: 5-11/16
Length: 4-1/8
Width: 6-15/16
Residential or Commercial: Residential
Subcategory: Universal Rough in
Valve Input Diameter: 1/2
Valve Output Diameter: 1/2
Warranty: Limited Lifetime Warranty
