Madera

Madera Chair Height Toilet System With Manual Piston Flush Valve, 1.28 gpf/4.8 Lpf

Built to stand the test of time and handle years of high use, the Maderia Elongated Toilet from American Standard provides a powerful, direct-fed siphon jet action flush to prevent clogging, and unrivaled dependability in commercial settings. The Madera floor-mount toilet is designed to save you money with a high efficiency, low consumption 1.28 gpf. Highly reliable, ADA compliant toilet has a 16 ½-in. (419 mm) rim height, a 1-1/2 in. inlet spud, and includes 2 bolt caps. Seat is sold separately.

White 2857128.020 DISCONTINUED
List Price: $340.00
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • HIGH-EFFICIENCY COMMERCIAL TOILET: Powerful flush uses 1.28 (4.8 Lpf)
  • ADA COMPLIANT: With a 16 1/2-in. rim height for accessibility applications
  • DEPENDABLE PERFORMANCE: Manual piston-operated flush valve with exclusive DynaClean® self-cleaning wiper spring technology that cleans refill orifice with every flush to help prevent valve run-on
  • AUTOMATIC SHUT-OFF: Features a non-hold open handle
  • SEAT SOLD SEPARATELY: We recommend American Standard seat model 5901110T.020
Technical Features
  • Maximum 1,000 gram MaP Score
  • Elongated floor mount flushometer bowl, top spud, less seat
  • 16-1/2" (419 mm) rim height for accessible application
  • Static weight load of 2,500 lbs (1,134 kg)
  • Conventional glaze
  • Condensation channel
  • Manual piston-operated flush valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Non-hold open handle provides automatic shut-off
Nominal Dimensions: 28-1/4 in x 14 in x 30 in (718 mm x 356 mm x 762 mm)
Description
Net Weight
SKU
Color
List Price USD
Madera Chair Height Toilet System With Manual Piston Flush Valve, 1.28 gpf/4.8 Lpf
1 lb (0.4 kg)
2857128.020
White (020)
340
Separate Components
Madera 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) Chair Height Top Spud Elongated Bowl
55 lb (25.0 kg)
3043001.020
White
180
spacer
Ultima Manual Toilet Flush Valve, Piston-Type, 1.28 gpf/4.8 Lpf
6 lb (2.7 kg)
6047121.002
Chrome
274
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 16-1/2
Bowl Included: Yes
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Flush Valves and Sanitary Items
Chair Height: Standard
Color / Finish: White
Flush Value: Exposed
Collections: Madera
WaterSense: Yes
Everclean: Yes
Fitting Connection Size Input: 1
Fitting Material: Brass
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Valve Size: 2
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.28 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
MAP Performance Rating: 1000
Number of Output Valves: 1
Height: 30
Height: 30
Length: 28-1/4
Length: 28-1/4
Width: 14
Residential or Commercial: Commercial
Subcategory: Manual Flush Valve and Sanitary Items
Tank Included: Yes
Valve Input Diameter: 1
Valve Output Diameter: 1-1/2
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

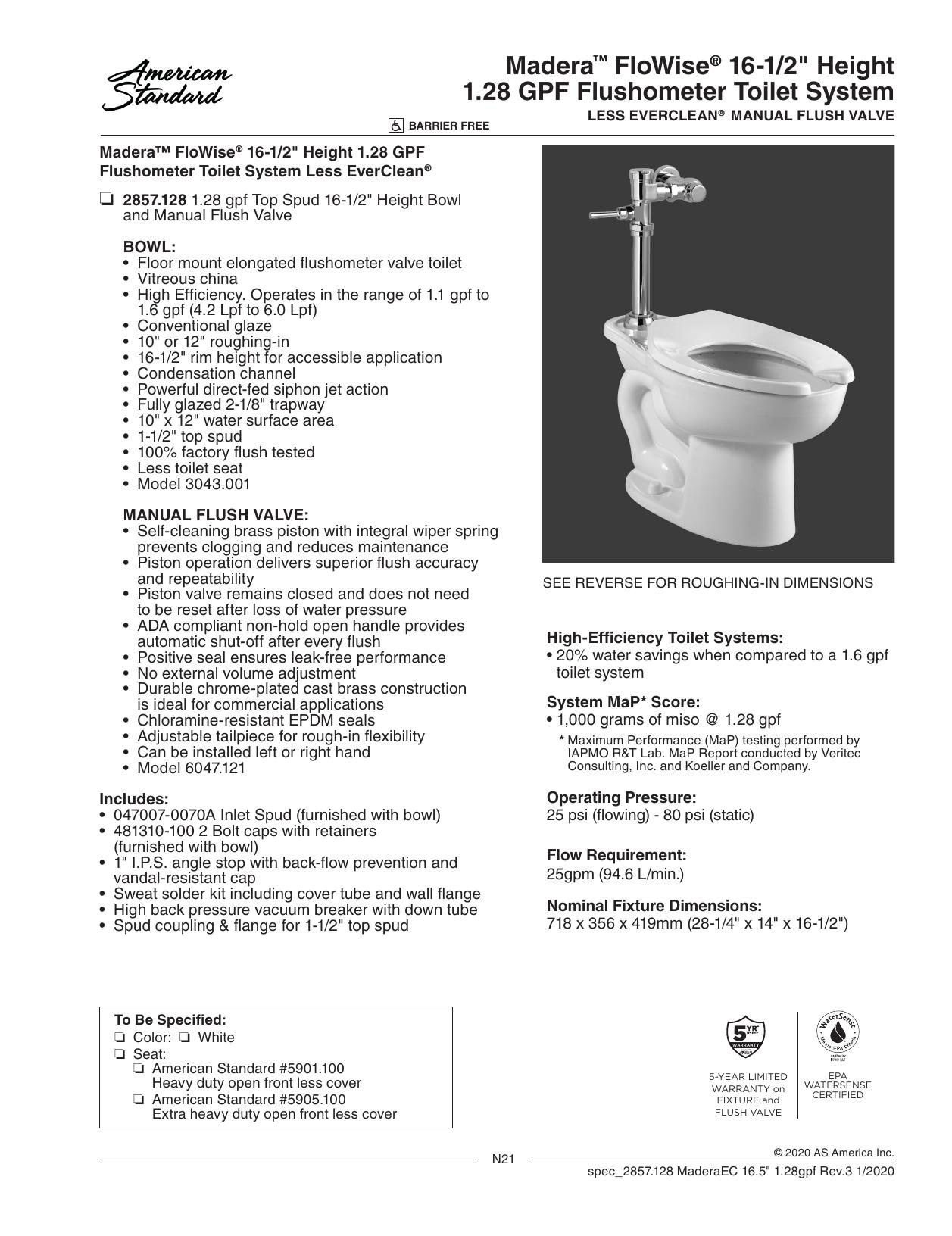

Specification Sheet
Download All Design Files
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
}
