H2Option/H2Optimum / Other Dual Flush

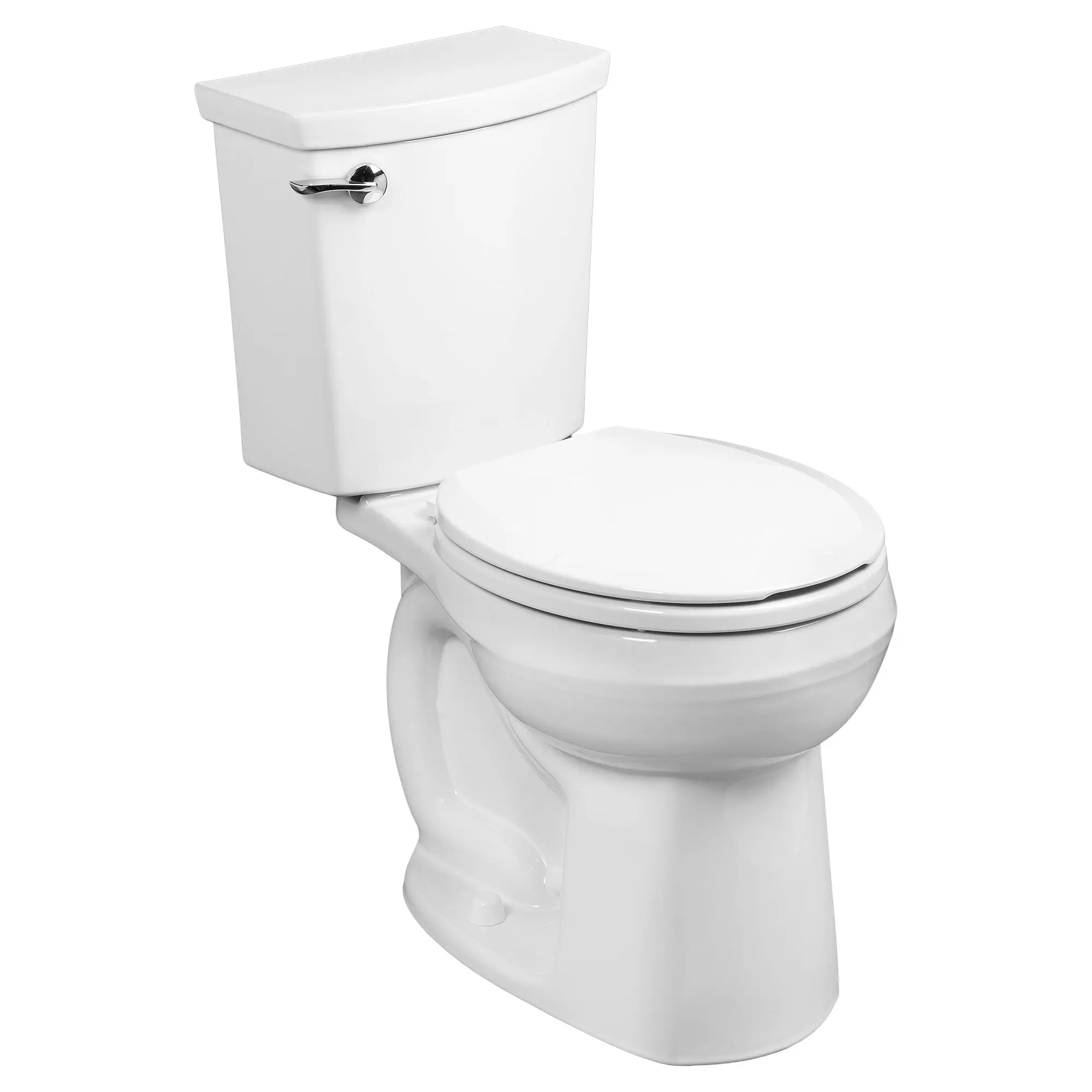

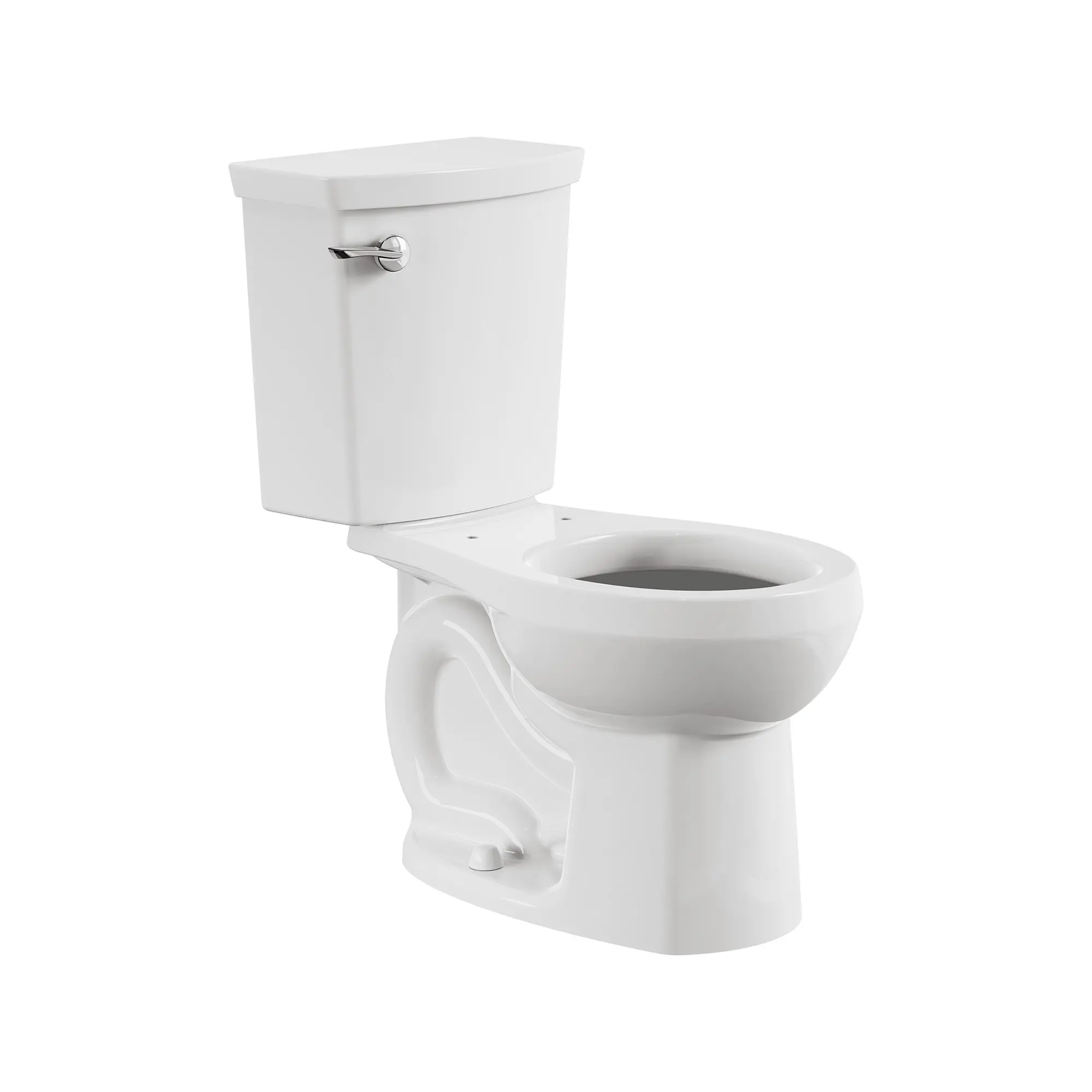

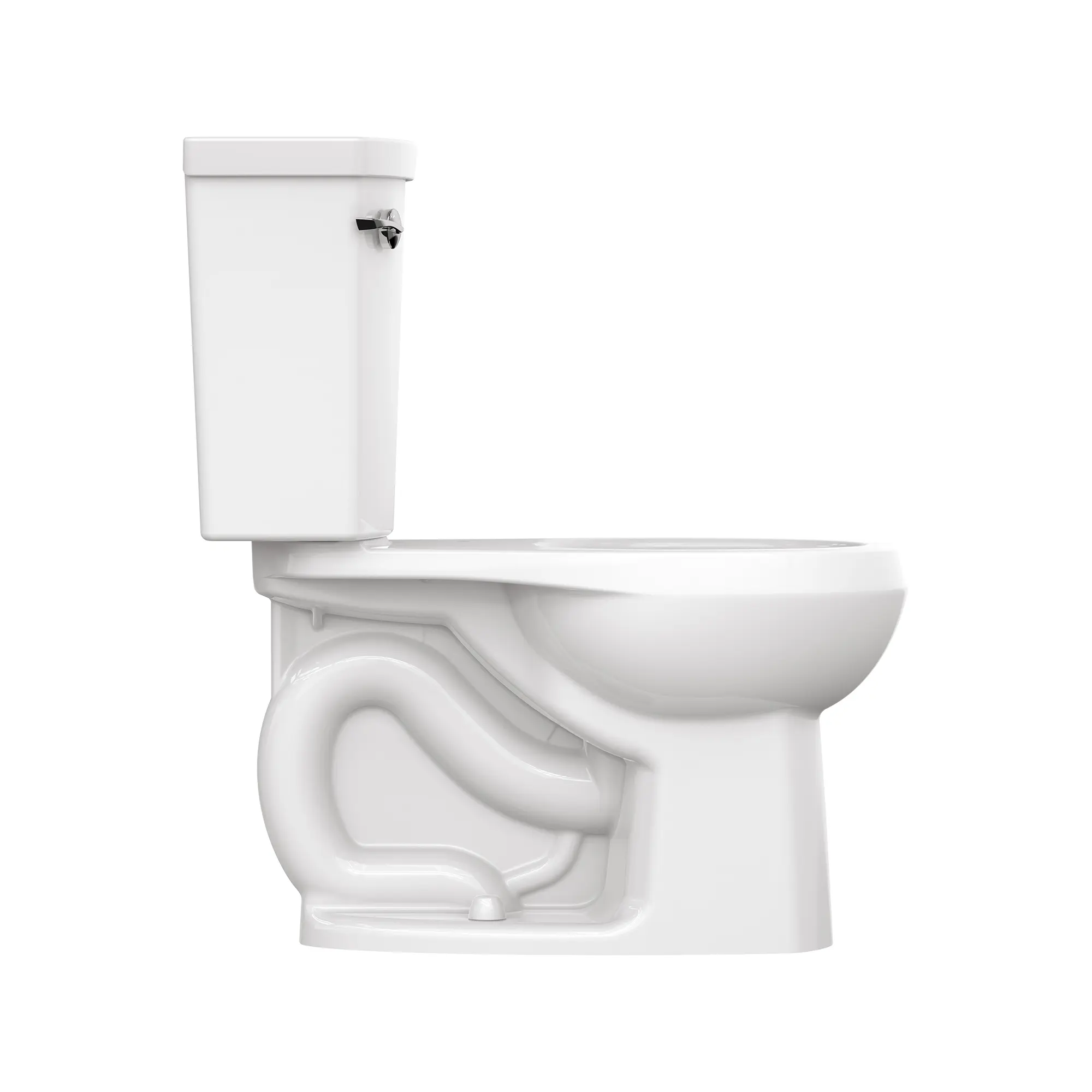

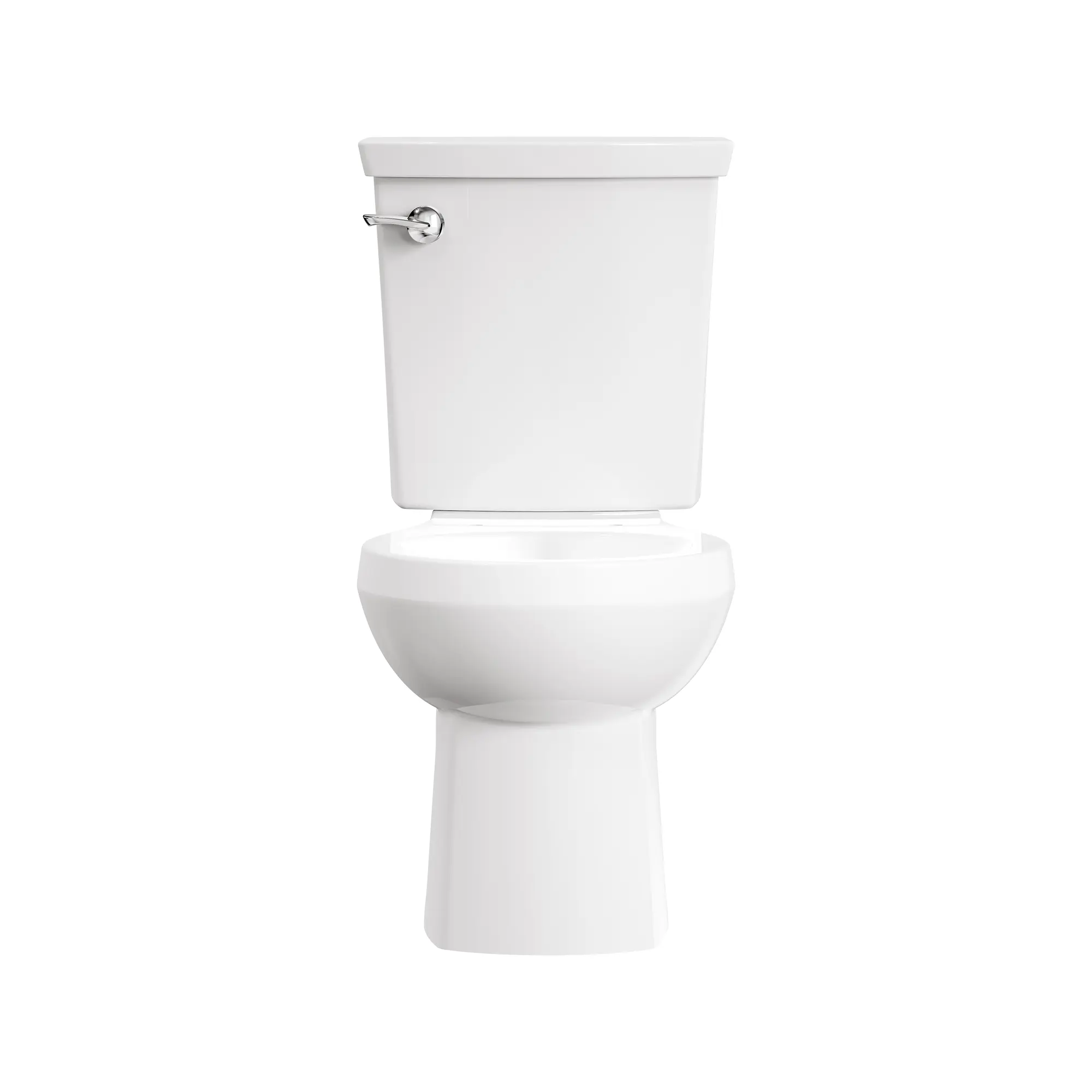

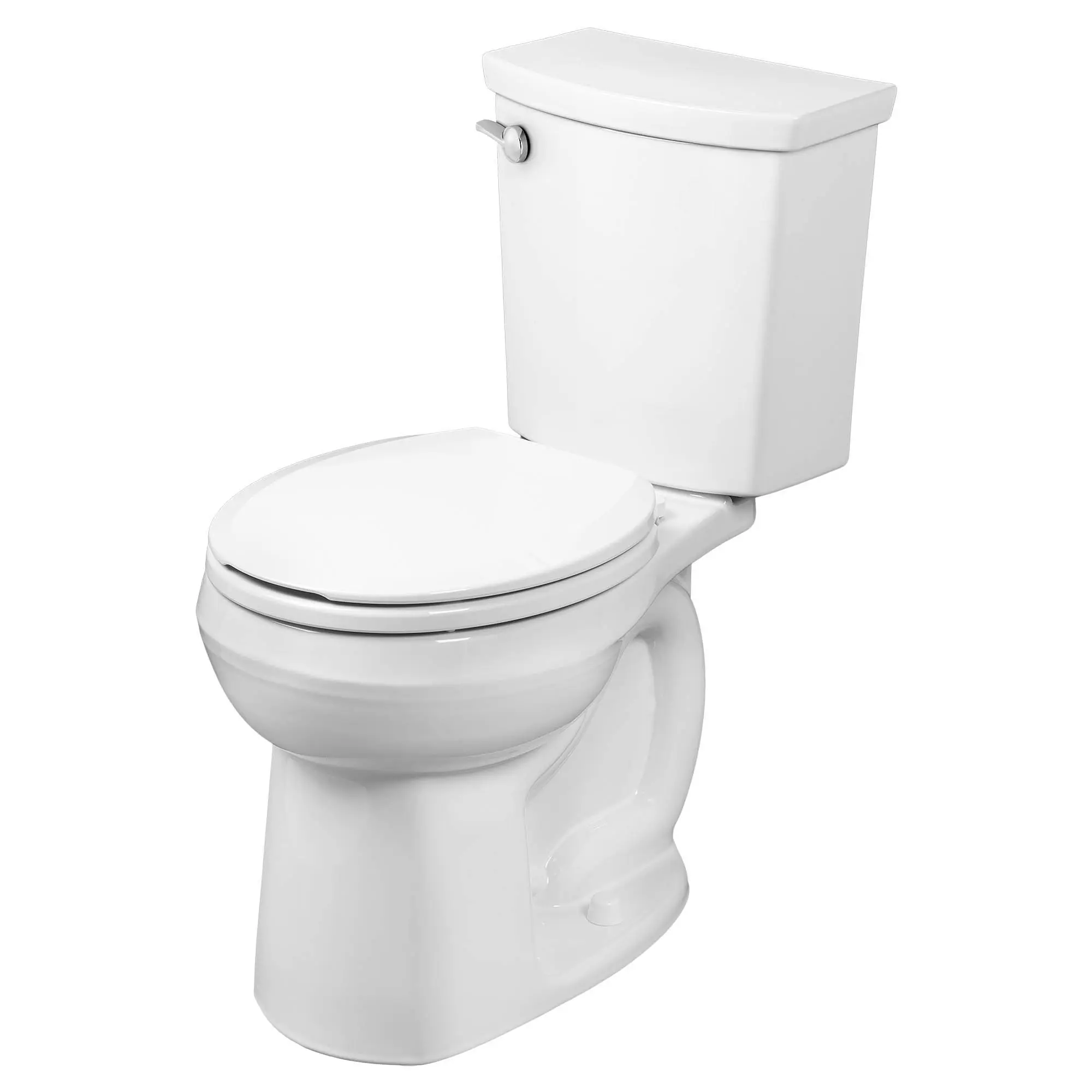

H2Optimum® Two-Piece 1.1 gpf/4.2 Lpf Standard Height Round Front Toilet Less Seat

The American Standard H2Optimum siphonic round-front toilet offers high-efficiency without sacrificing performance. It uses just 1.1 gpf/4.2 Lpf, meaning maximum water savings for your home without ever compromising on powerful flushing performance. Maintenance is a breeze thanks to the EverClean® antimicrobial surface that protects against mold, mildew, odor- and stain-causing bacteria, keeping your toilet cleaner, longer. Plus, the PowerWash® rim scrubs the bowl with every flush. Seat sold separately.

White 288DA114.020 DISCONTINUED
List Price: $293.00
Cal Green CEC Certified WaterSense Everclean Water Efficient USMCA Compliant
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Ultra-high efficiency: Optimal water savings with a 1.1 gpf flush rate
  • WaterSense® certified: Meets EPA WaterSense criteria, guaranteeing proven performance and verified water conservation
  • Cleaner, more hygienic design: Features EverClean® antimicrobial surface to protect against bacteria, a PowerWash® rim that scrubs the bowl, and a sanitary dam on the bowl to prevent liquid and dirt from accumulating where the tank and bowl meet
  • Fits in small bathrooms: Round-front bowl saves space without sacrificing comfort making it great for powder rooms, guest bathrooms, or apartments
  • Quality two-piece construction: Built from durable vitreous china and backed by a limited lifetime warranty on the chinaware
  • Please note: Seat is sold separately
Technical Features
  • Siphonic action combination bowl and tank, less seat
  • Ultra-High Efficiency Toilet (UHET) 1.1 gpf/4.2 Lpf
  • Meets EPA WaterSense® and MaP PREMIUM criteria
  • 12" (305 mm) rough-in
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • PowerWash® rim scrubs bowl with each flush
  • 9" x 8" (229 x 203 mm) water surface area
  • Chrome trip lever
  • Sanitary dam on bowl
  • 2" (51 mm) fully glazed trapway,Two color-matched bolt caps,Five-year warranty,Round Front Toilet
Nominal Dimensions: 27-3/4 in x 15 in x 30 in (705 mm x 381 mm x 762 mm)
Description
Net Weight
SKU
Color
List Price USD
H2Optimum® Two-Piece 1.1 gpf/4.2 Lpf Standard Height Round Front Toilet Less Seat
1 lb (0.4 kg)
288DA114.020 *
White (020)
293
Separate Components
H2Option® and H2Optimum® Standard Height Round Front Bowl
42 lb (19.0 kg)
3708216.020 *
White
151
spacer
H2Optimum® 1.1 gpf/4.2 Lpf 12-Inch Rough Tank
31 lb (13.9 kg)
4133A114.020
White
142
spacer
H2Option® ADA and H2Optimum® 12-Inch Rough Toilet Tank Cover
9 lb (3.9 kg)
735177-400.020
White
92
Optional Components (Not Included)
Cardiff Slow-Close Round Front Toilet Seat
3 lb (1.4 kg)
5259B65MT.020
White
72


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Front to Back Length: 15
Bowl Included: Yes
Bowl Shape: Round
Brand: American Standard
Cal Green: Yes
Category: Toilets
CEC Certified: Yes
Chair Height: Standard
Color / Finish: White
Collections: H2Option/H2Optimum / Other Dual Flush
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Gravity Fed
Flush Valve Size: 2
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.1 GPF
MAP Performance Rating: 600
Number of Flush Valves: 1
Height: 30
Height: 30
Length: 27-3/4
Width: 15
Residential or Commercial: Residential
Rough In Size: 12
Rough In Valve Included: Yes
Subcategory: Floor Standing Toilets
Tank Included: Yes
Trip Lever Location: Left Front
Toilet Water Efficiency: Hight Efficiency Toilet
Toilet Mount Type: Floor Mount
Trapway Diameter: 2
Toilet Type: Two Piece
USMCA Compliant: Yes
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
