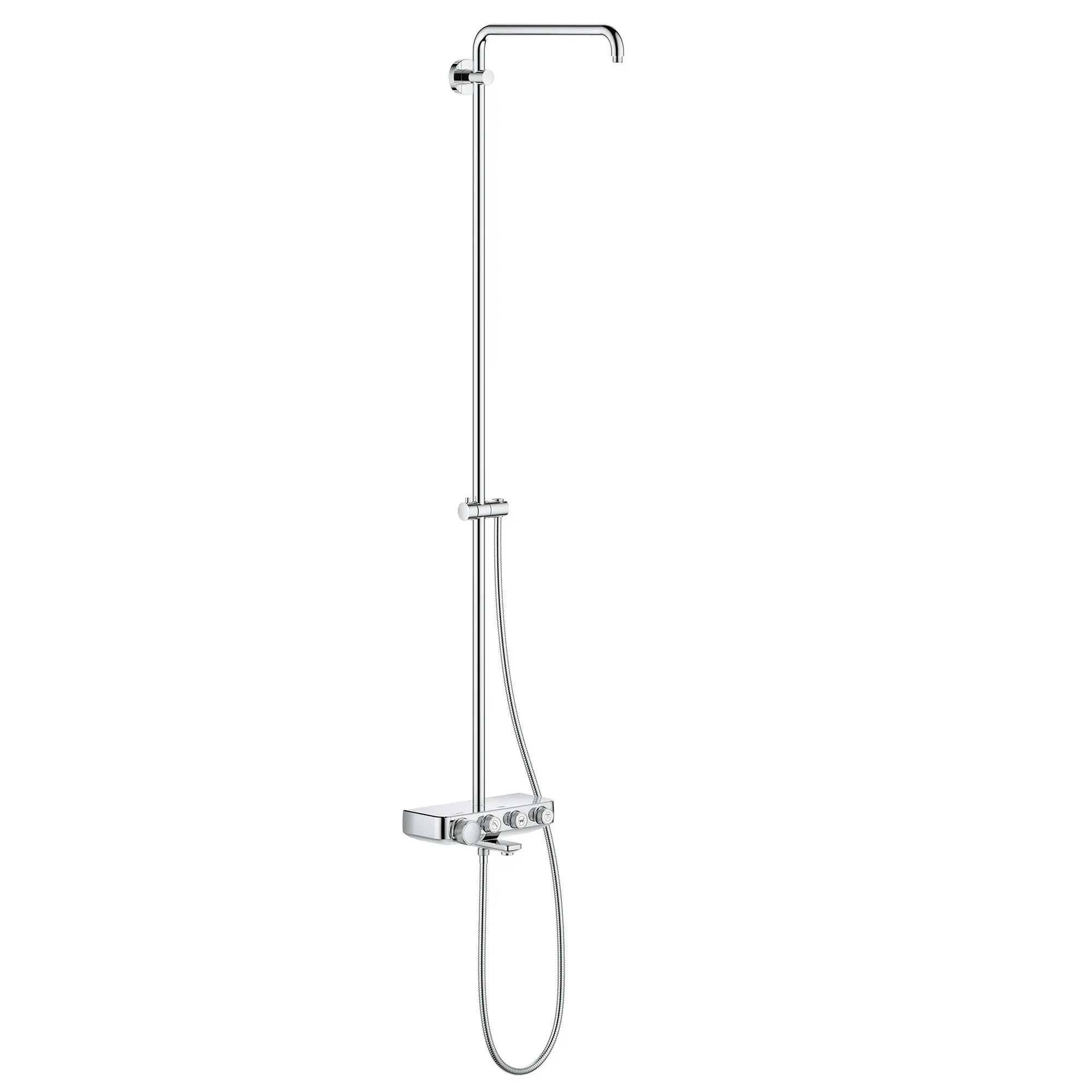

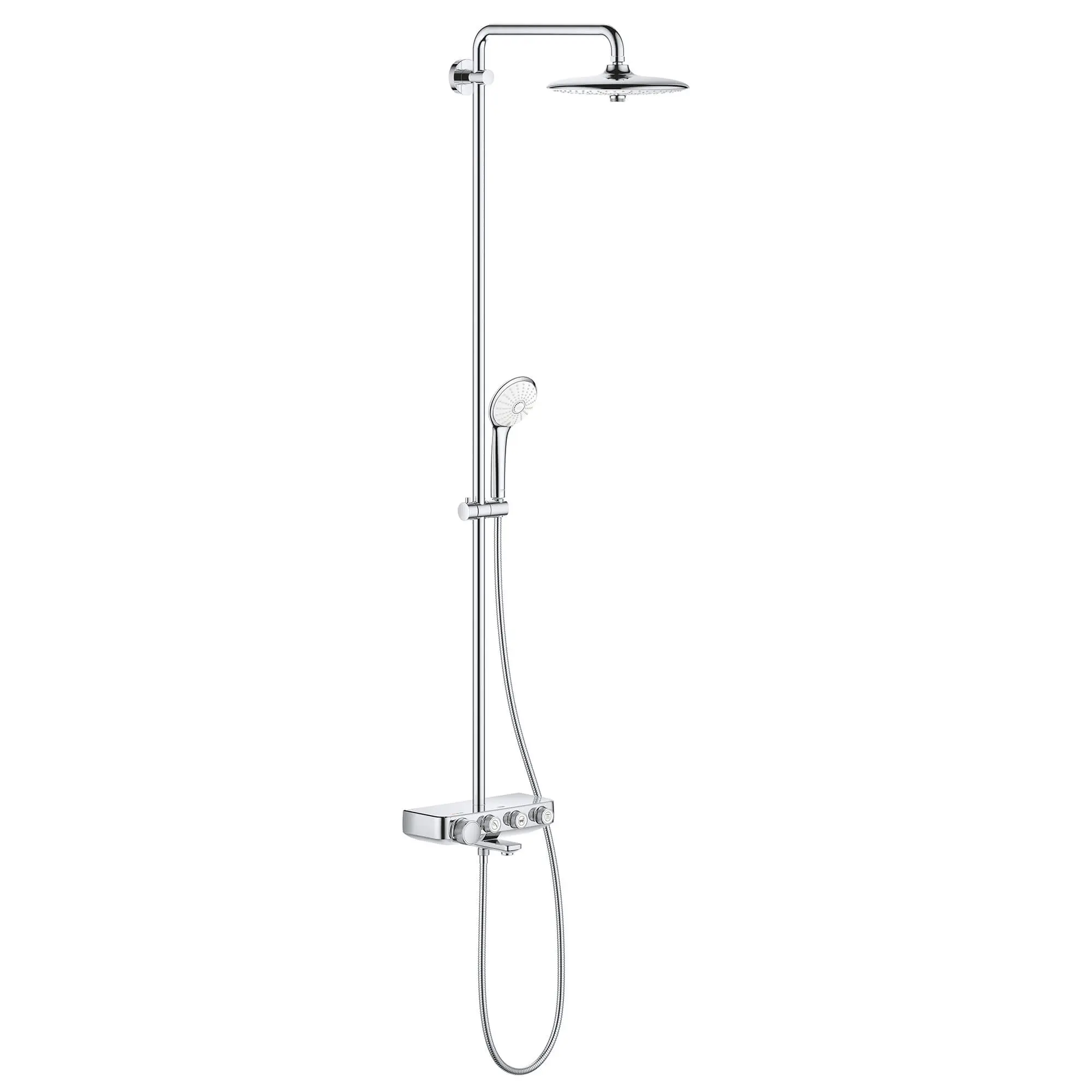

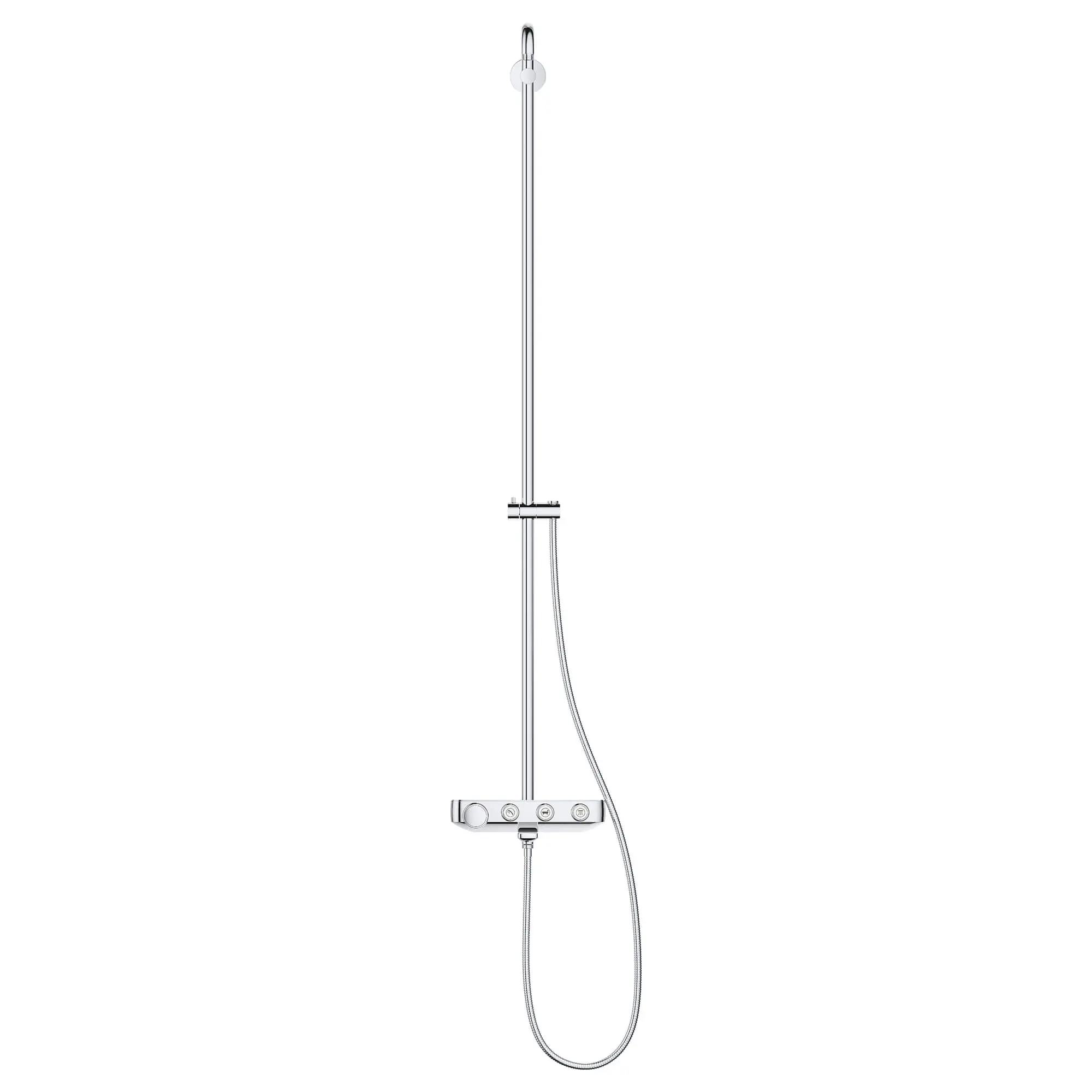

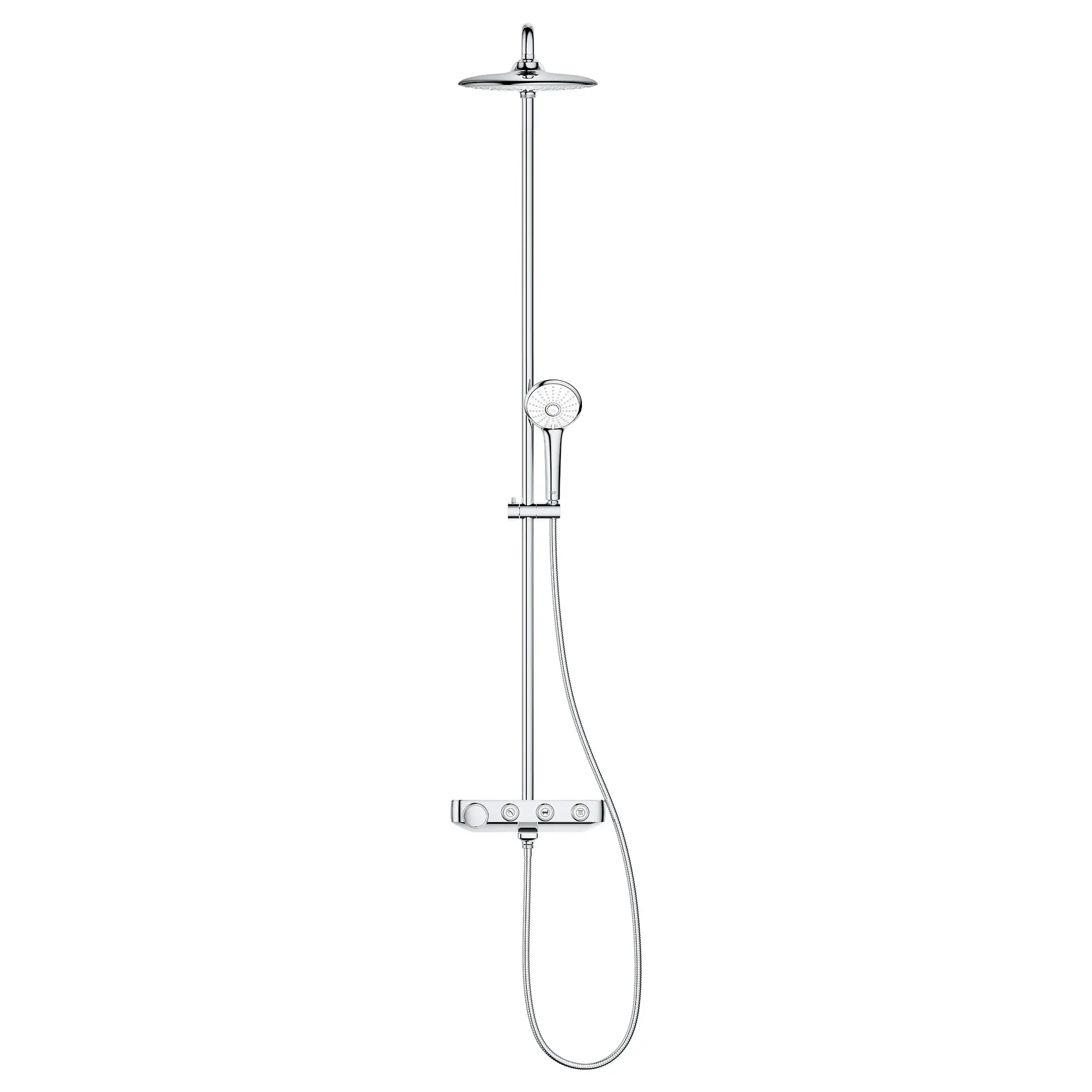

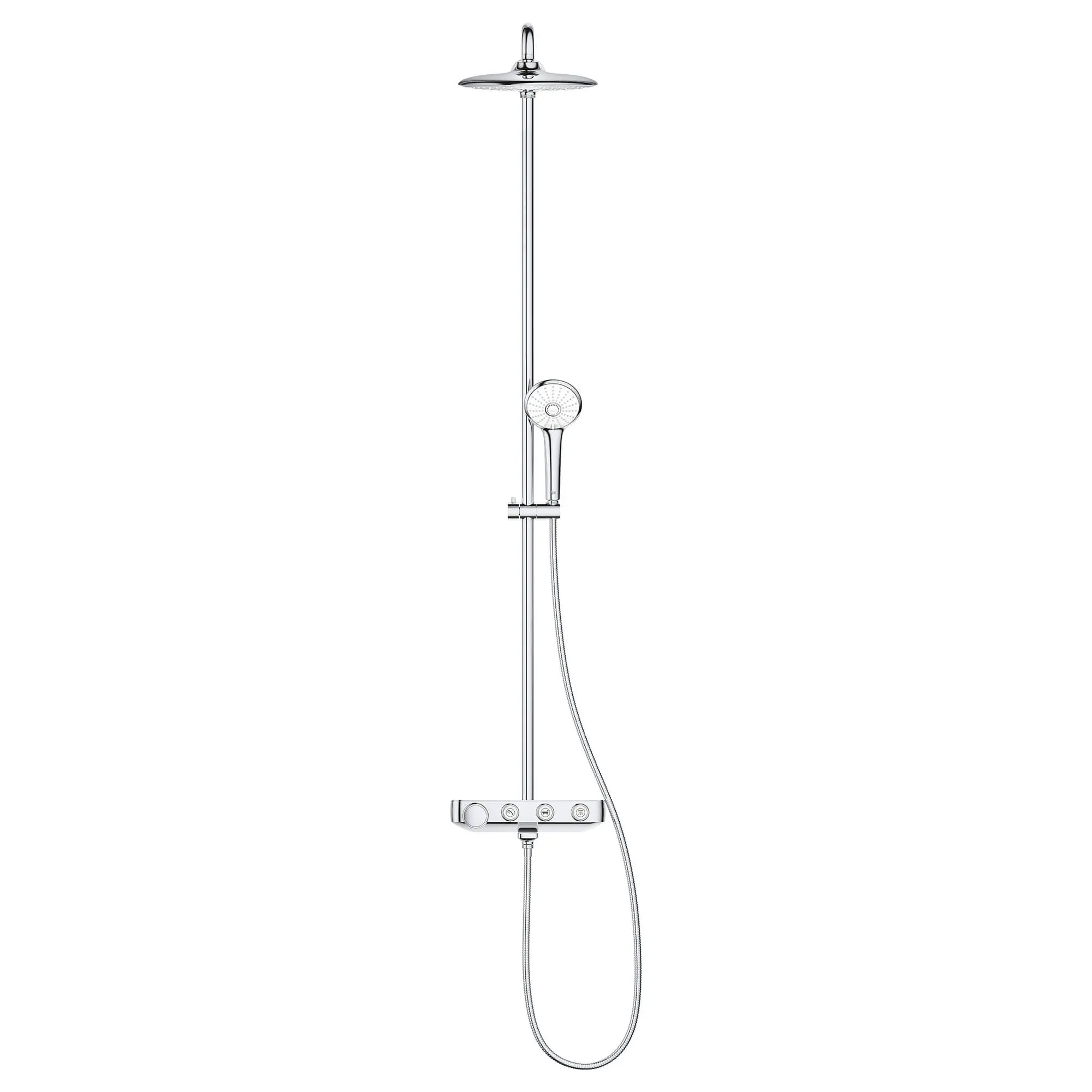

Thermostatic Tub/Shower System

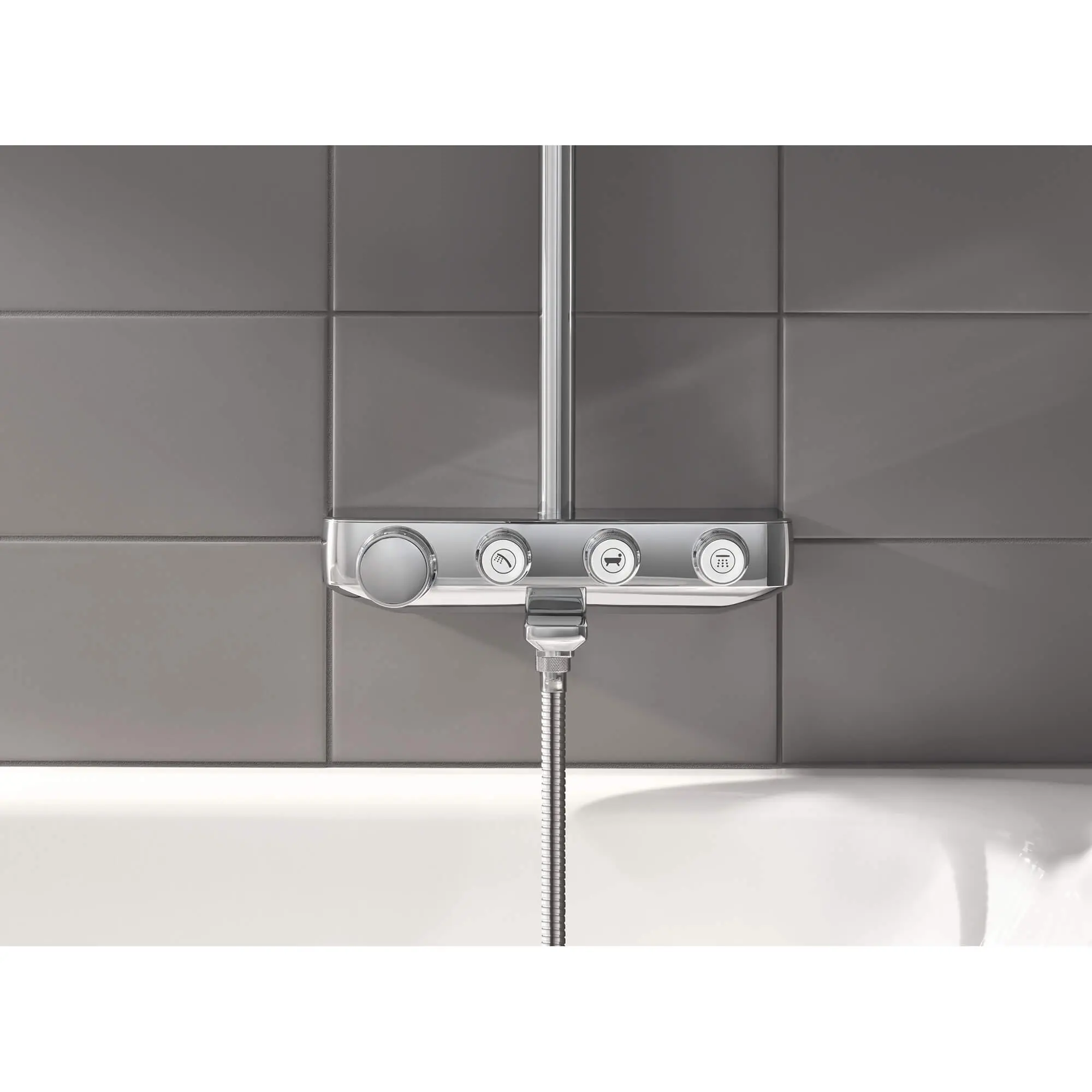

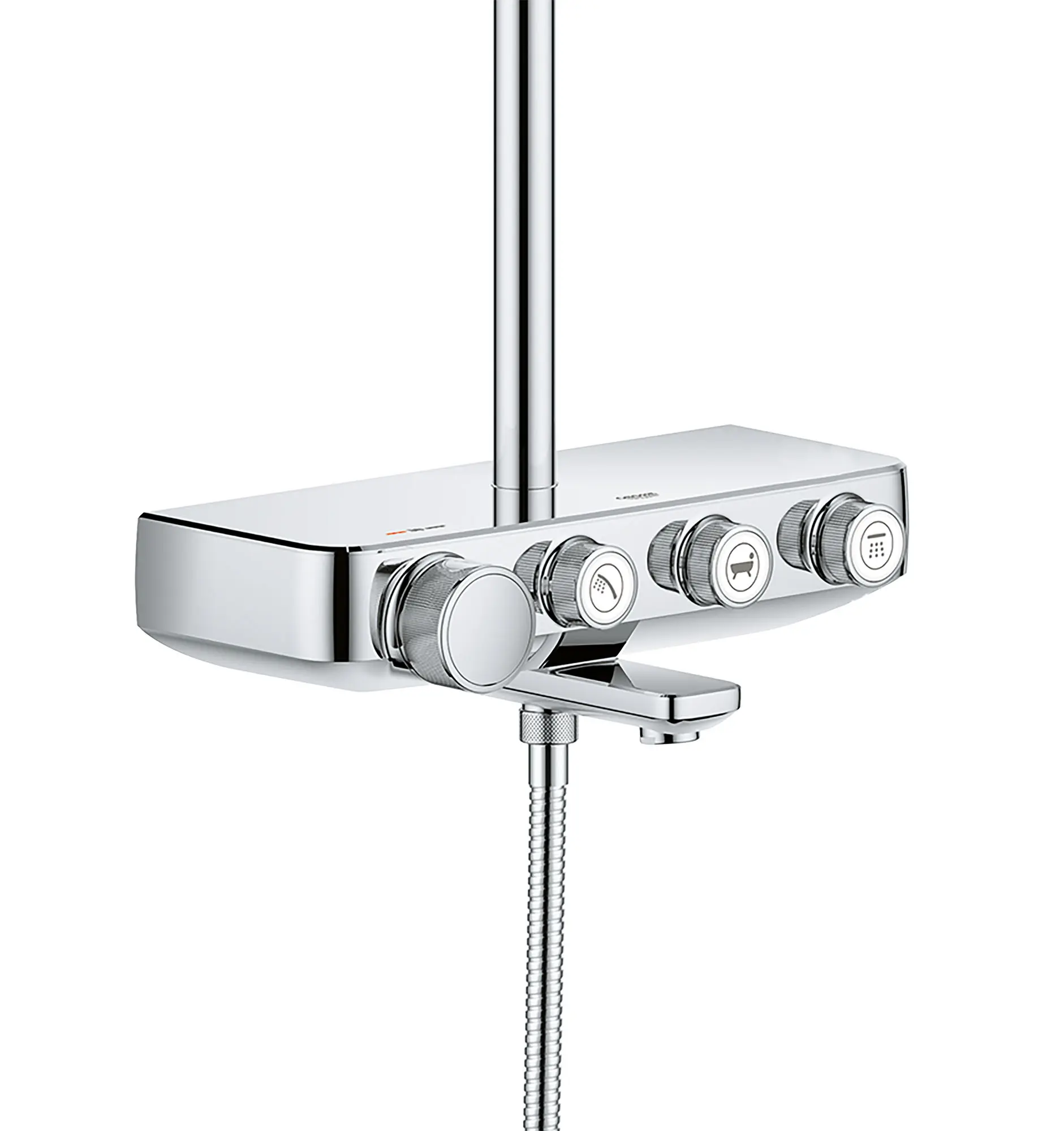

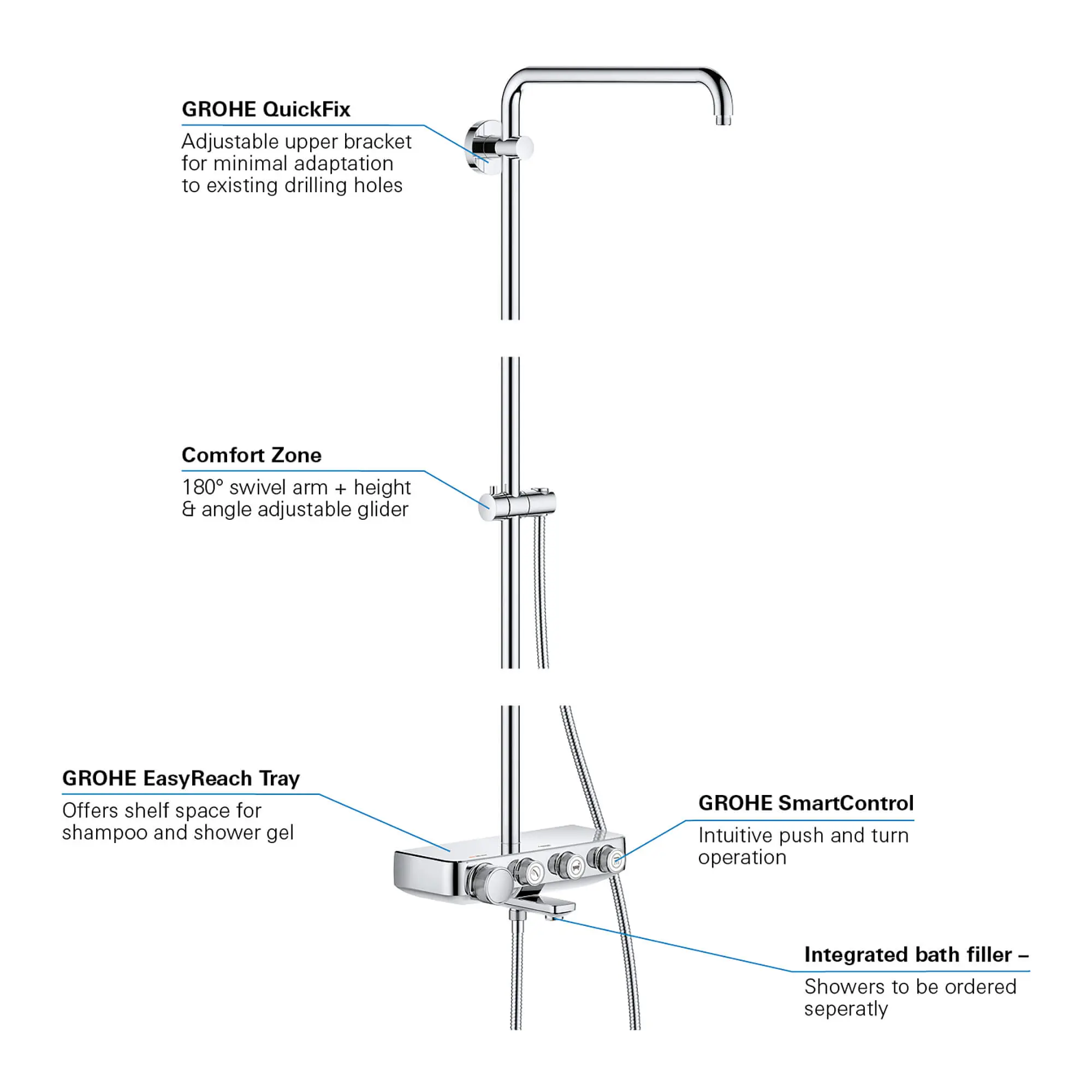

The innovative GROHE SmartControl technology allows you to easily switch between showerhead, hand shower, and tub spout, and adjust the water volume at the push-turn of a button featuring intuitive EasyLogic icons. Equipped with Turbostat, it delivers water at the desired temperature within a fraction of a second and maintains the temperature throughout your shower. Adjustable hand shower height promises a comfortable shower experience for everyone and removable EasyReach soap and shampoo tray keeps the essentials handy. For added safety, GROHE CoolTouch ensures that the exposed thermostat will never be too hot to touch. The adjustability of the QuickFix upper bracket makes installation Swift and easy. StarLight chrome finish keeps the entire system bright and shiny

Features
  • GROHE StarLight
  • GROHE CoolTouch
  • GROHE TurboStat compact cartridge with wax thermoelement
  • GROHE SmartControl push for ON-OFF, turn for volume adjustment
  • GROHE QuickFix adjustable upper mounting bracket
  • Exposed thermostatic temperature control with SafeStop at 100°F / 38°C
  • Swivel shower arm length: 17 ¾"
  • Overall rail height: 61 1/16"
  • 5 5 /16" Tub Spout reach
  • Adjustable height with hand shower holder,69" Rotaflex metal shower hose (28 025),Integrated GROHE EasyReach shower tray,Includes adapters for easy installation (depth adjustable),Tub spout flow rate: 5.3gpm (20 L/min) at 45psi,Showerhead and hand shower are NOT included (sold separately)
Technical Features
  • GROHE StarLight
  • GROHE CoolTouch features an innovative cooling channel to reduce the risk of scalding
  • GROHE TurboStat compact cartridge with wax thermoelement
  • GROHE SmartControl push for ON-OFF, turn for volume adjustment
  • GROHE QuickFix adjustable upper mounting bracket
  • Exposed thermostatic temperature control with SafeStop at 100°F / 38°C
  • GROHE SafeStop Plus optional temperature limiter at 110°F (43°C) included
  • Swivel shower arm length: 17 ¾"
  • Rotation angle ± 15°
  • Overall rail height: 61 1/16",5 5/16" Tub Spout reach,Adjustable height with hand shower holder,69" Rotaflex metal shower hose (28 025),Integrated GROHE EasyReach shower tray,Includes adapters for easy installation (depth adjustable),Tub spout flow rate: 5.3gpm (20L/min) at 45psi,Showerhead and hand shower are NOT included (sold separately),Shower head weight of up to 4.4 lbs (2 kg) acceptable
Nominal Dimensions: 17-3/4 in x 12-1/16 in x 62-5/8 in (451 mm x 306 mm x 1591 mm)
Description
Net Weight
SKU
Color
List Price USD
Thermostatic Tub/Shower System
21 lb (9.6 kg)
Chrome (G00)
1037


Models marked with * are discontinued, but product may still be available while supplies last.
Brand: GROHE
Category: Shower Systems Retrofits, Slide Bar Kit
Color / Finish: Chrome
Collections: Euphoria® SmartControl
Fitting Connection Size Input: 0-1/2
Fitting Material: Metal
Fixture or Fitting Material: Metal
Input Connection Type: NPT (National Pipe Tapered Threads)
Kitchen or Bathroom: Bath
Height: 62-5/8
Length: 17-3/4
Width: 12-1/16
Residential or Commercial: Residential
Shower Bar Length: 1447.80
Subcategory: Thermostat Shower System bare
Warranty: Limited Lifetime Warranty
