Retro-Fit™

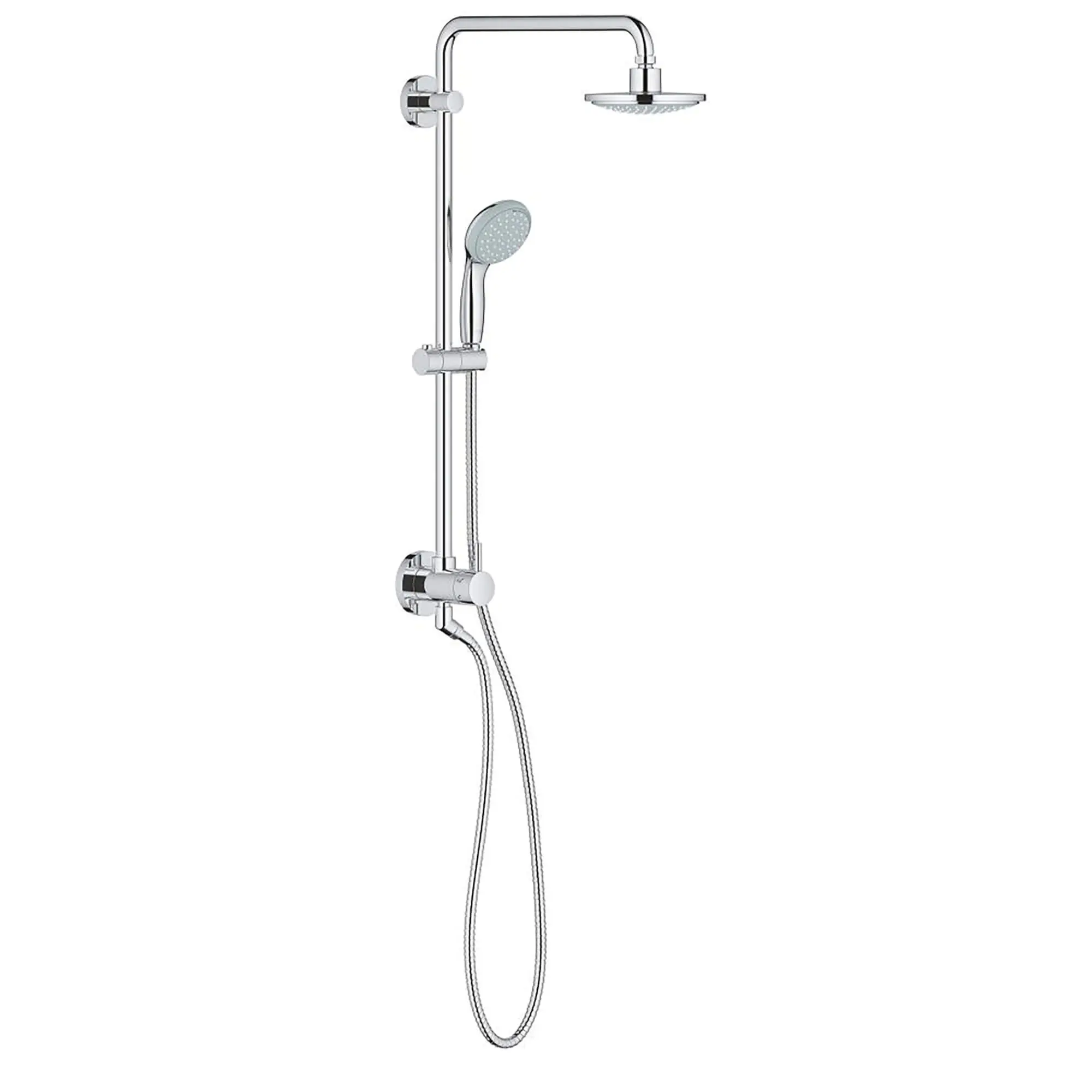

160 Shower System, 1.75 GPM (6.6 L/min)

Chrome 26123000 DISCONTINUED   Substitution Available (26123001)
List Price: $589.00
Cal Green CEC Certified
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • GROHE StarLight finish for scratch and tarnish-resistant surfaces for a lifetime of beauty
  • GROHE CoolTouch features an innovative cooling channel to reduce the risk of scalding
  • 17-11/16 in. Shower arm
  • Optional fixed or 45 degree swivel shower arm
  • Switch between hand shower and shower head or dual function via built-in diverter
  • Bar with adjustable height hand shower holder
  • Euphoria Cosmopolitan shower head, 2.0 gpm (27 807)
  • New Tempesta II hand shower, 2.0 gpm (26 047)
  • GROHE Retro-Fit shower system, 2.0 gpm (27 920)
Technical Features
  • GROHE StarLight finish for scratch and tarnish-resistant surfaces for a lifetime of beauty
  • GROHE CoolTouch features an innovative cooling channel to reduce the risk of scalding
  • 17-11/16 in. Shower arm
  • Optional fixed or 45 degree swivel shower arm
  • Switch between hand shower and shower head or dual function via built-in diverter
  • Bar with adjustable height hand shower holder
  • Euphoria Cosmopolitan shower head, 2.0 GPM (6.8 L/min) (27 807)
  • New Tempesta II hand shower, 2.0 GPM (6.8 L/min) (26 047)
  • GROHE Retro-Fit shower system, 2.0 gpm (27 920)
Nominal Dimensions: 21-7/8 in x 8-1/4 in x 32-9/16 in (556 mm x 210 mm x 827 mm)
Description
Net Weight
SKU
Color
List Price USD
160 Shower System, 1.75 GPM (6.6 L/min)
14 lb (6.6 kg)
26123000 *
Chrome (G00)
589
Substitutions
210 Shower System, 1.75 gpm (6.6 L/min)
13 lb (6.0 kg)
26123001
Chrome
938


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Brand: GROHE
Cal Green: Yes
Category: Shower Systems Retrofits, Slide Bar Kit
CEC Certified: Yes
Color / Finish: Chrome
Department of Energy Certified: Yes
Collections: Retro-Fit™
Fitting Connection Size Input: 0-1/2
Hose Length: 59
Fitting Material: Metal
Mount Type: Wall Mount
Fixture or Fitting Material: Metal
Gallons Per Minute (min-max): 1.75
Input Connection Type: NPT (National Pipe Tapered Threads)
Kitchen or Bathroom: Bath
Height: 32-9/16
Length: 21-7/8
Width: 8-1/4
Residential or Commercial: Residential
Number of Showerheads: 1
Number of Spray Settings: 1
Shower Bar Installation: Wall anchor
Shower Bar Length: 635.00
Subcategory: Diverter Shower System bundle
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

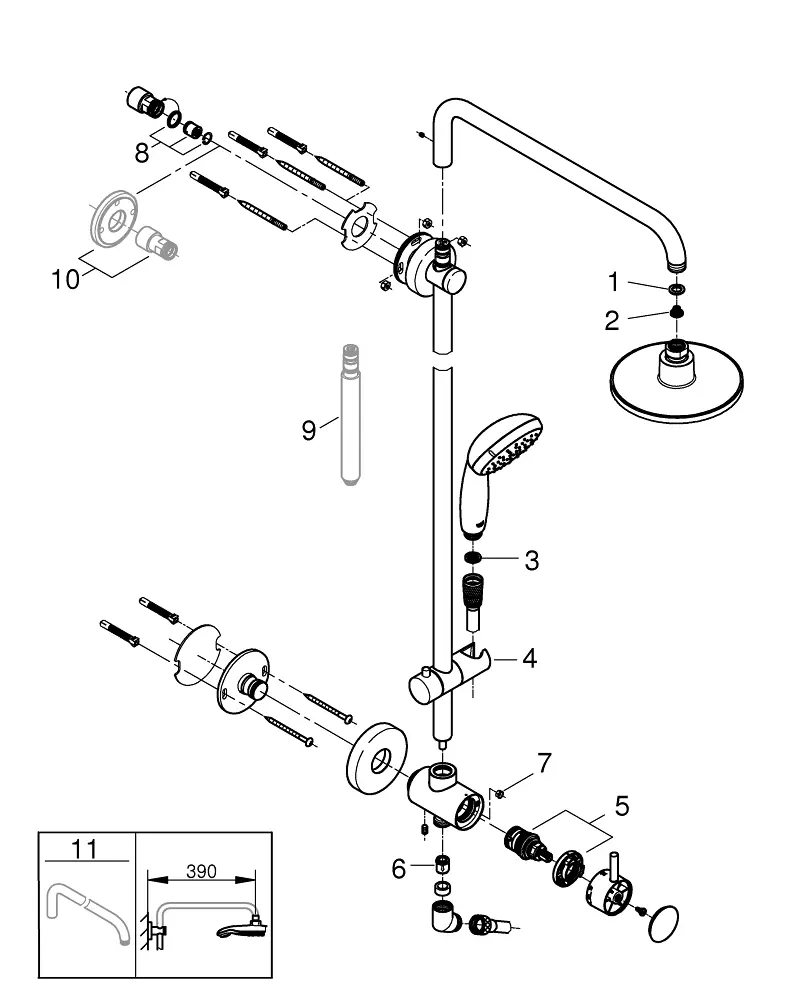

Replacement Parts
Download All Design Files
There are no videos currently available for this product
3D Objects are not currently available for this product
