Extender

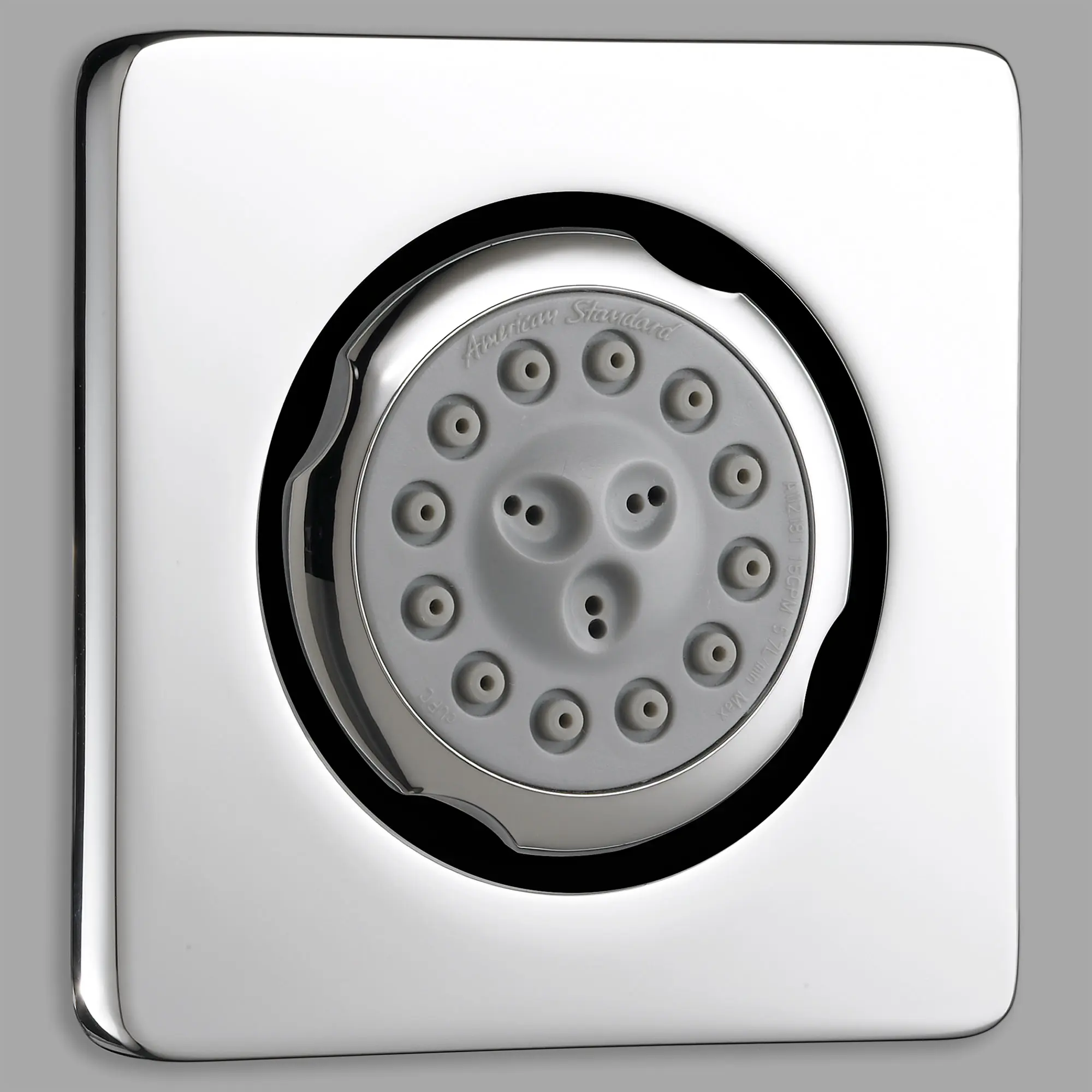

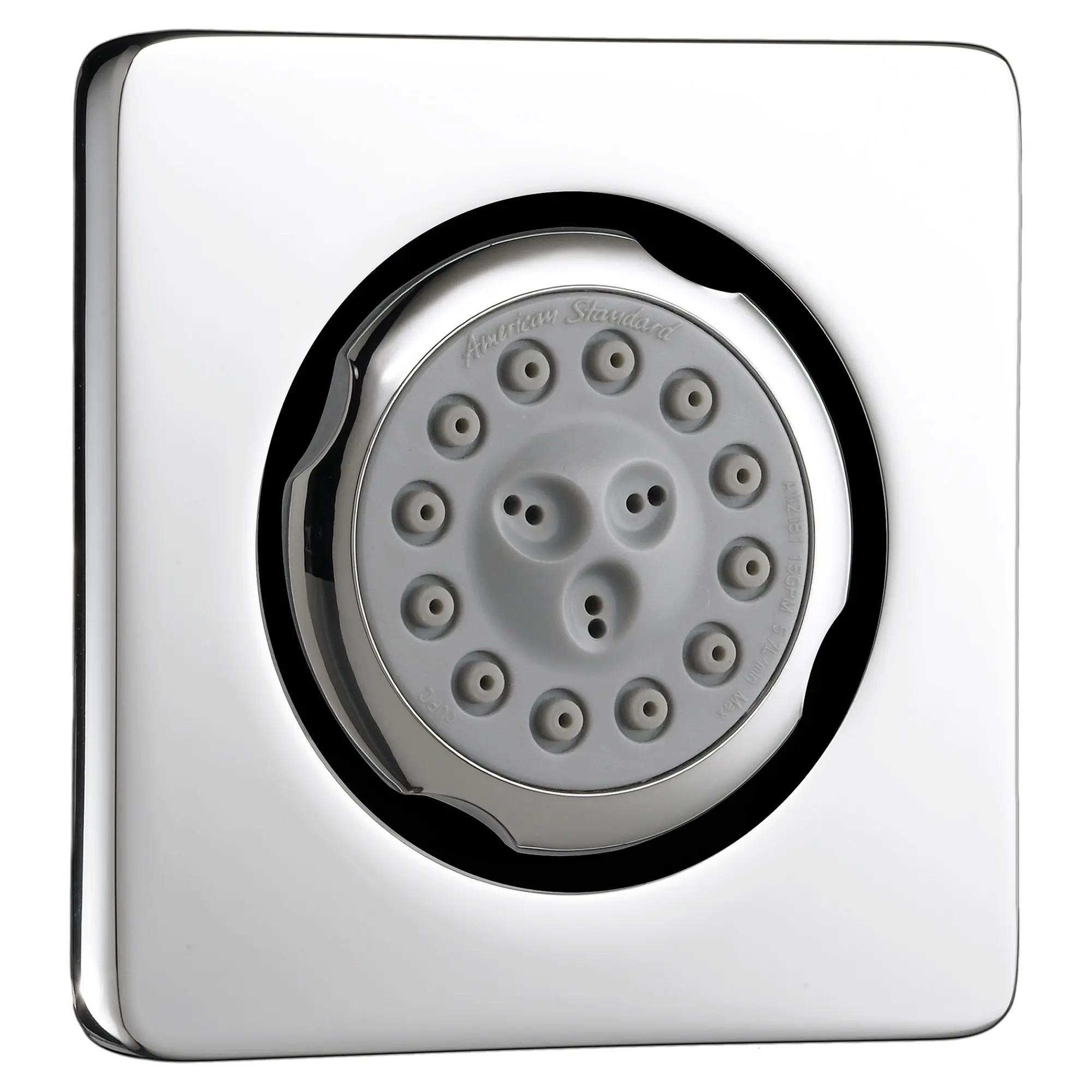

Extender Square Body Spray

A variable body spray with an added dimension. Not only does this three-function body spray offer conventional, massage and combination sprays, the square spray face automatically extends when the water is turned on—making it easier to select the spray and adjust the angle—then retracts when you turn the water off.

Chrome 1660140.002 DISCONTINUED
List Price: $193.00
Cal Green CEC Certified Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Flush mount body spray for a clean look
  • Variable spray options to customize shower experience to personal taste. Adjusts from conventional spray, to massage spray, to combination spray
  • Easy to clean spray face
  • Spray face automatically extends when water is turned on and retracts when water is off
  • Angle adjustable. Spray position adjusts up to 15° in any direction
  • Limited Lifetime Warranty – function and finish
  • Includes exclusive plaster guard and rough-in kit
  • 1-piece installation with no loose parts to lose or reassemble on site
Technical Features
  • Extender body sprays with 1.5 gpm/5.7 L/min maximum flow
  • Flush mount
  • Easy to clean spray face
  • Spray face automatically extends when water is turned on and retracts when water is off
  • Three functions: widespray, massage and combination
  • Includes exclusive rough-in that must be installed during rough-in installation and before the wall is closed
  • Angle adjustable. Spray position adjusts up to 15° in any direction
  • 1-piece installation with no loose parts to lose or reassemble on site
Nominal Dimensions: 0.4 in x 2.9 in x 2.9 in (10 mm x 74 mm x 74 mm)
Description
Net Weight
SKU
Color
List Price USD
Extender Square Body Spray
1 lb (0.6 kg)
1660140.002
Chrome (002)
193
1660140.013 *
Polished Nickel (013)
243
1660140.224 *
Oil Rubbed Bronze (224)
210
1660140.278 *
Legacy Bronze (278)
261
1660140.295
Brushed Nickel (295)
289


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Brand: American Standard
Cal Green: Yes
Category: Showers Head Hand Side
CEC Certified: Yes
Color / Finish: Chrome
Department of Energy Certified: Yes
Collections: Extender
Fitting Connection Size Input: 1/2
Gallons Per Minute (min-max): 1.5 GPM
Height: 2.9
Length: 0.4
Width: 2.9
Residential or Commercial: Residential
Number of Spray Settings: 3
Spary Patterns: Full, Massage, Mist
Subcategory: Body Spray Showers
Warranty: Limited Lifetime Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
Download All Design Files
The 3D Models used on the website are for reference only and may not reflect the actual configuration of the product.
