Universal

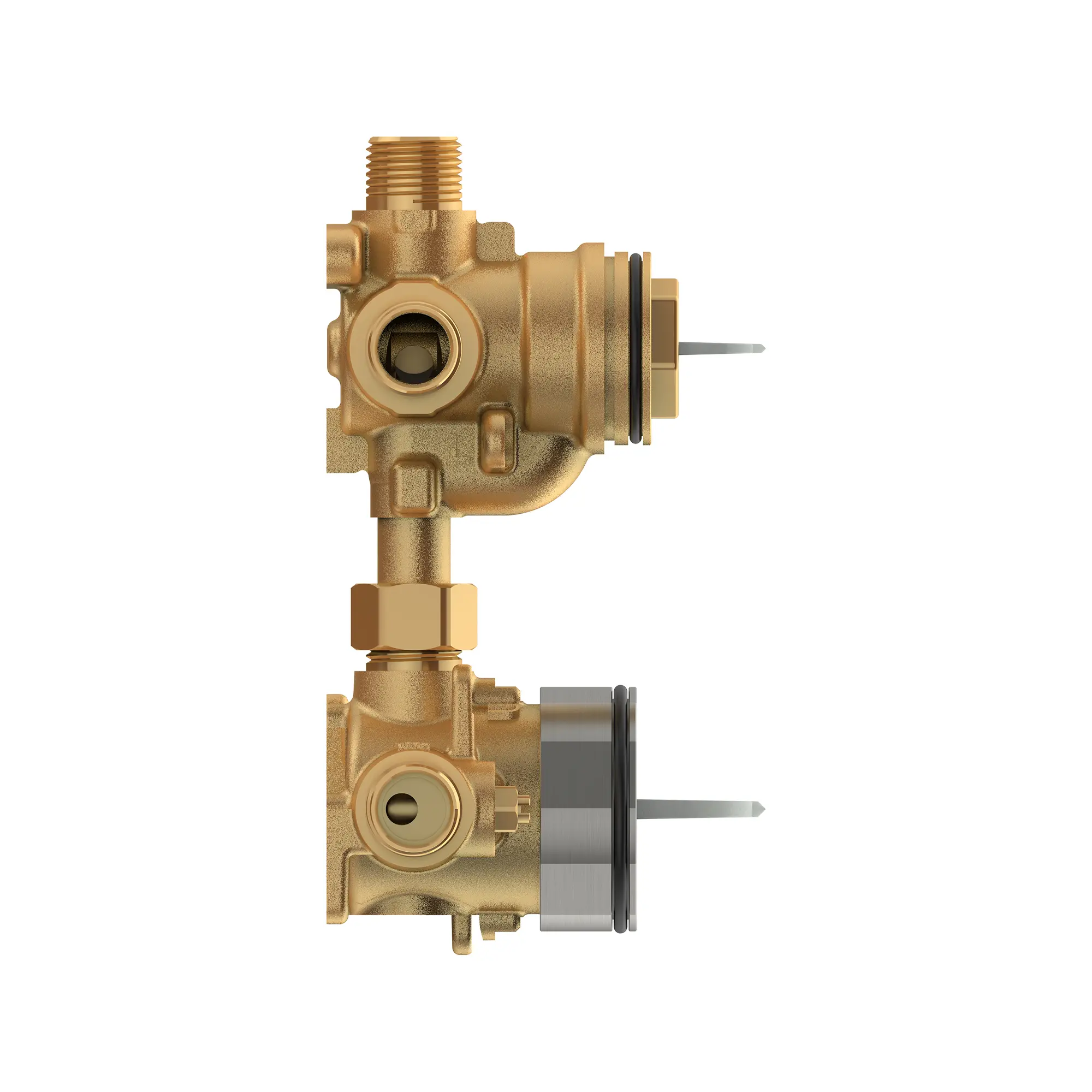

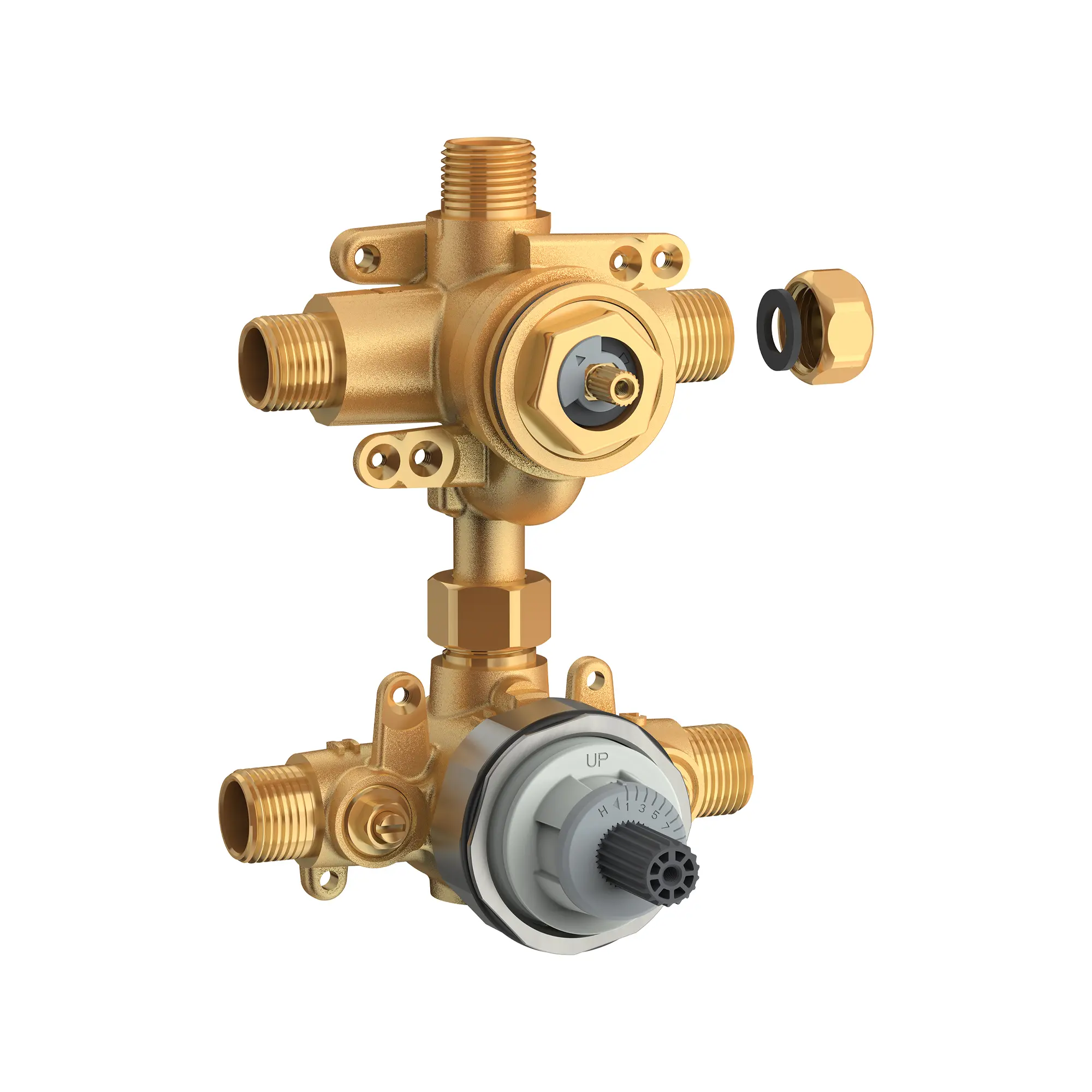

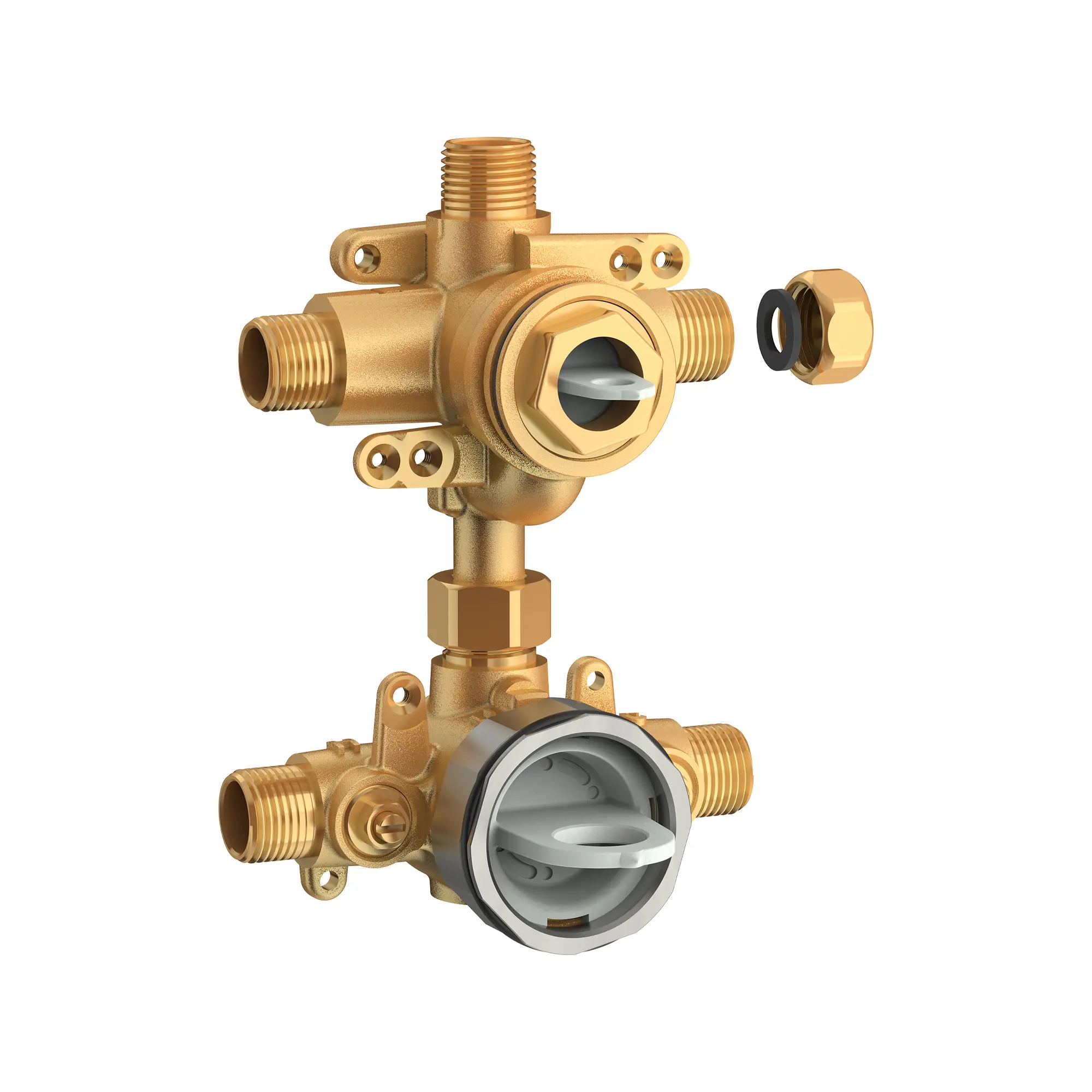

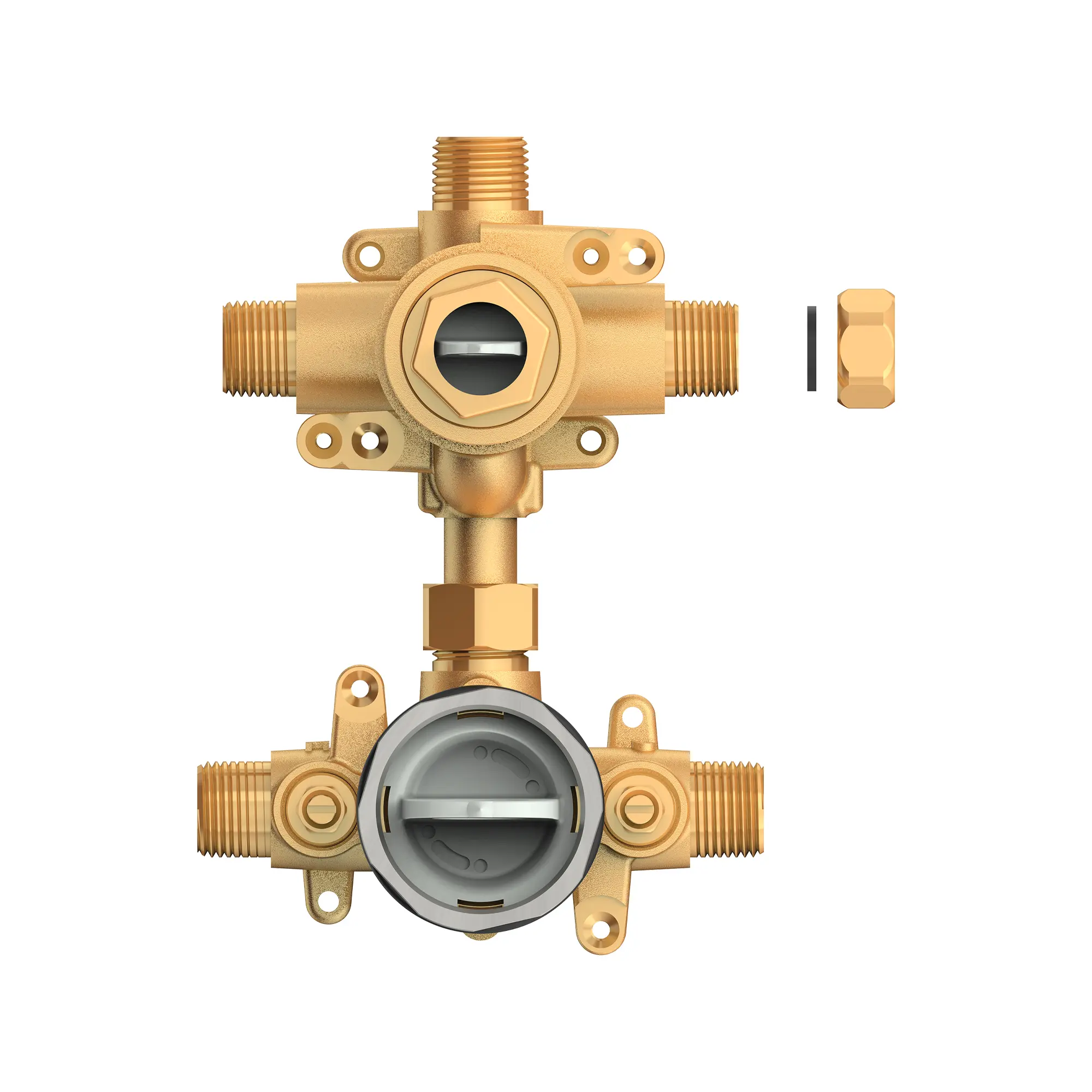

Pressure Balance Valve Rough-In with Integrated Diverter

The Aspirations Flash® 2-Way or 3-Way Integrated Shower Diverter Rough-In Valve is an innovative design developed by American Standard to make installation easier and showering more enjoyable. Featuring a flat back for flush mounting on the cross brace, and a compact body to accommodate tight spaces, this Flash Integrated Diverter Rough-In Valve delivers unmatched convenience and versatility by providing 2 or 3-way discrete functionality with the option for simultaneous functionality with shared diverter, sold separately.

No Finish RU520 DISCONTINUED
List Price: $277.00
Enjoy More Rewards
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • VERSATILE INSTALLATON: Compact body and flat back for easy and solid installation
  • 2-WAY OR 3-WAY DISCRETE FUNCTIONALITY: Provides the ability to alternate water flow between 2 or 3 separate outlets with cartridge M970787-0070, included with Aspirations trim
  • OPTIONAL SHARED CAPABILITY: Provides the ability to share water flow simultaneously from up to 3 outlets with the addition of shared cartridge, M970789-0070, sold separately
  • NO SOLDERING REQUIRED: Solid brass inlet connections for fast installation without adaptors, reducing leak points

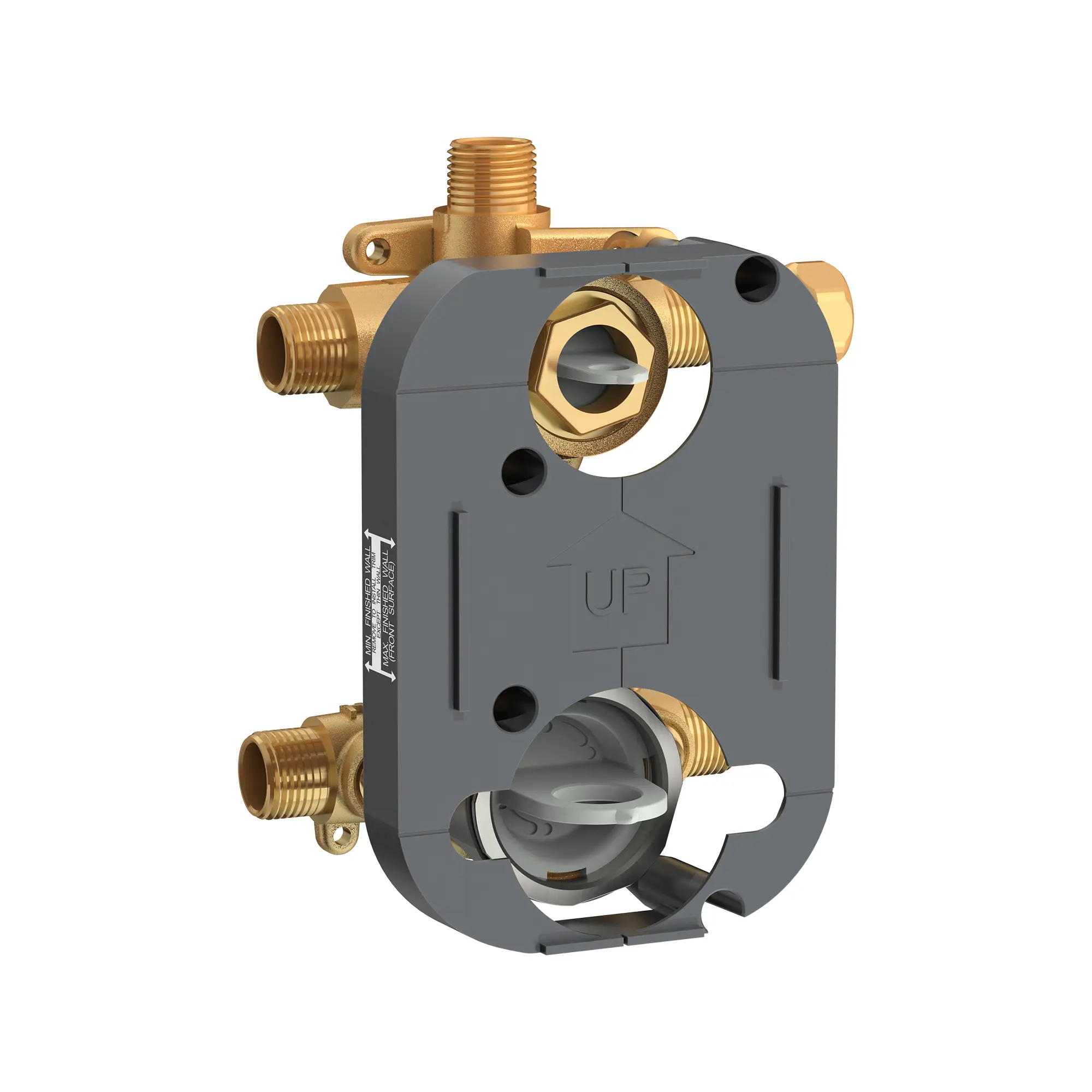

  • EXCLUSIVE PLASTER GUARD: Protects valve and acts as a guide during installation; can serve as mounting support for thin-wall installations
  • SELF-ALIGNING SCREW HOLES: Screw holes are easy to find; simplifies reattaching plaster guard to valve body
  • EASY SERVICING: Screwdriver stops for servicing at the valve
  • COMPATIBLE TRIMS: Designed for use with Aspirations trim, sold separately
Technical Features
  • Made of casted DZR brass to resist corrosion
  • For use with Flash® 2-Handle Integrated Shower Diverter Trim
  • 1/2” NPT Inlets/Outlets
  • 2 or 3-Way Shared functionality cartridge RP# M970789-0070A, sold separately
  • Compatible with all American Standard 2-Handle trim kits
  • Trim sold separately, discrete cartridge ships with trim
Description
Net Weight
SKU
Color
List Price USD
Pressure Balance Valve Rough-In with Integrated Diverter
1 lb (0.4 kg)
RU520
No Finish (007)
277
Models Using This Part
Delancey® 2-Handle Integrated Shower Diverter Trim Only
3 lb (1.2 kg)
TU052740.002
Chrome
287
TU052740.013
Polished Nickel
402
TU052740.278 *
Legacy Bronze
378
TU052740.295
Brushed Nickel
402
TU052740.GN0
Brushed Cool Sunrise
434
spacer
Aspirations 2-Handle 2 or 3 Way Shower Diverter Trim with Discrete Cartridge
3 lb (1.2 kg)
TU061740.002
Chrome
253
TU061740.243
Matte Black
353
TU061740.295
Brushed Nickel
320
spacer
Serin® 2-Handle Integrated Shower Diverter Trim Only
3 lb (1.2 kg)
TU064740.002
Chrome
300
TU064740.295
Brushed Nickel
420
spacer
Studio® S 2-Handle Integrated Shower Diverter Trim Only
2 lb (1.0 kg)
TU105740.002
Chrome
297
TU105740.243
Matte Black
446
TU105740.295
Brushed Nickel
414
TU105740.GN0
Brushed Cool Sunrise
408
spacer
Townsend®2-Handle Integrated Shower Diverter Trim Only
3 lb (1.4 kg)
TU353740.002
Chrome
297
TU353740.013
Polished Nickel
414
TU353740.243
Matte Black
429
TU353740.278 *
Legacy Bronze
390
TU353740.295
Brushed Nickel
414
TU353740.GN0
Brushed Cool Sunrise
450
spacer
Town Square® S 2-Handle Integrated Shower Diverter Trim Only
3 lb (1.6 kg)
TU455740.002
Chrome
308
TU455740.013
Polished Nickel
430
TU455740.243
Matte Black
430
TU455740.278 *
Legacy Bronze
404
TU455740.295
Brushed Nickel
430
TU455740.GN0
Brushed Cool Sunrise
423


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Brand: American Standard
Category: Rough-ins Concealed Bodies
Color / Finish: No Finish
Collections: Universal
Fitting Connection Size Input: 1/2
Fitting Material: Brass,Metal/Plastic
Fixture or Fitting Material: Brass<multisep/>Metal/Plastic
Input Connection Type: NPT (National Pipe Tapered Threads)
Number of Input Valves: 2
Number of Output Valves: 3
Output Connection Type: NPT (National Pipe Tapered Threads)
Height: 177
Length: 95
Width: 123
Residential or Commercial: Residential
Subcategory: Pressure Balance Valve Rough in
Temperature Control: Yes
Valve Input Diameter: 14
Valve Output Diameter: 14
