GrohSafe™ 3.0

Pressure Balance Rough-In Valve 1/2" Stub-out Inlets/Outlets

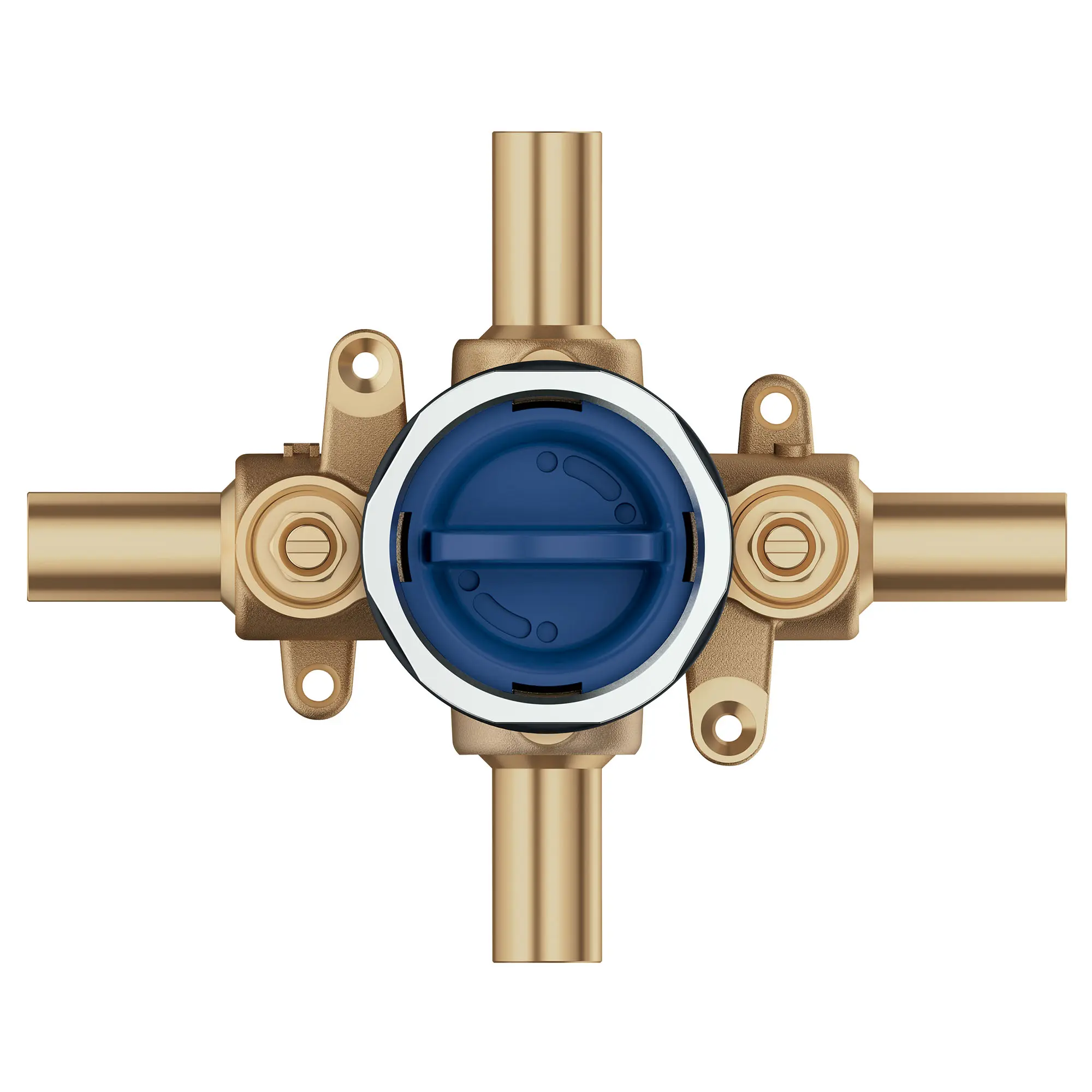

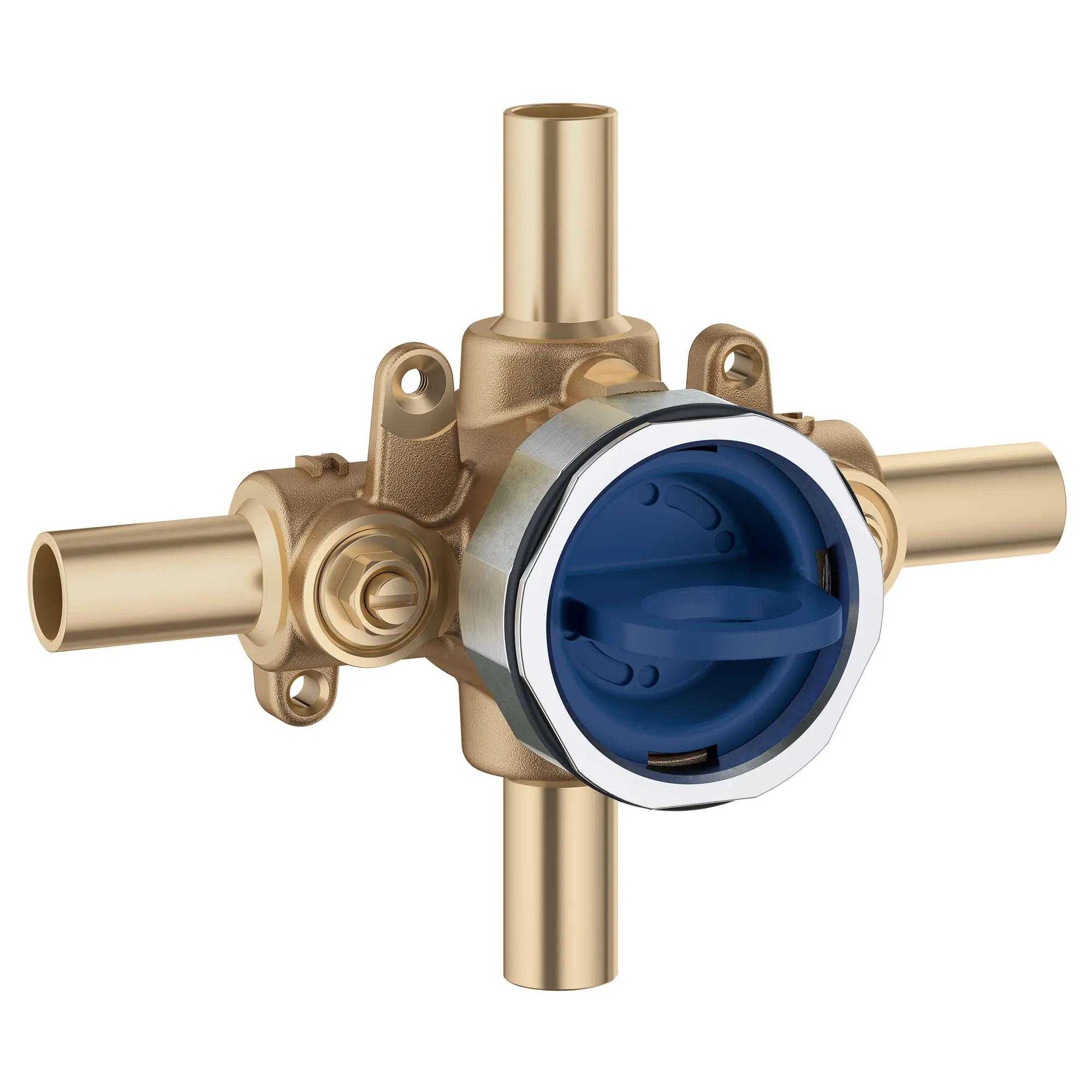

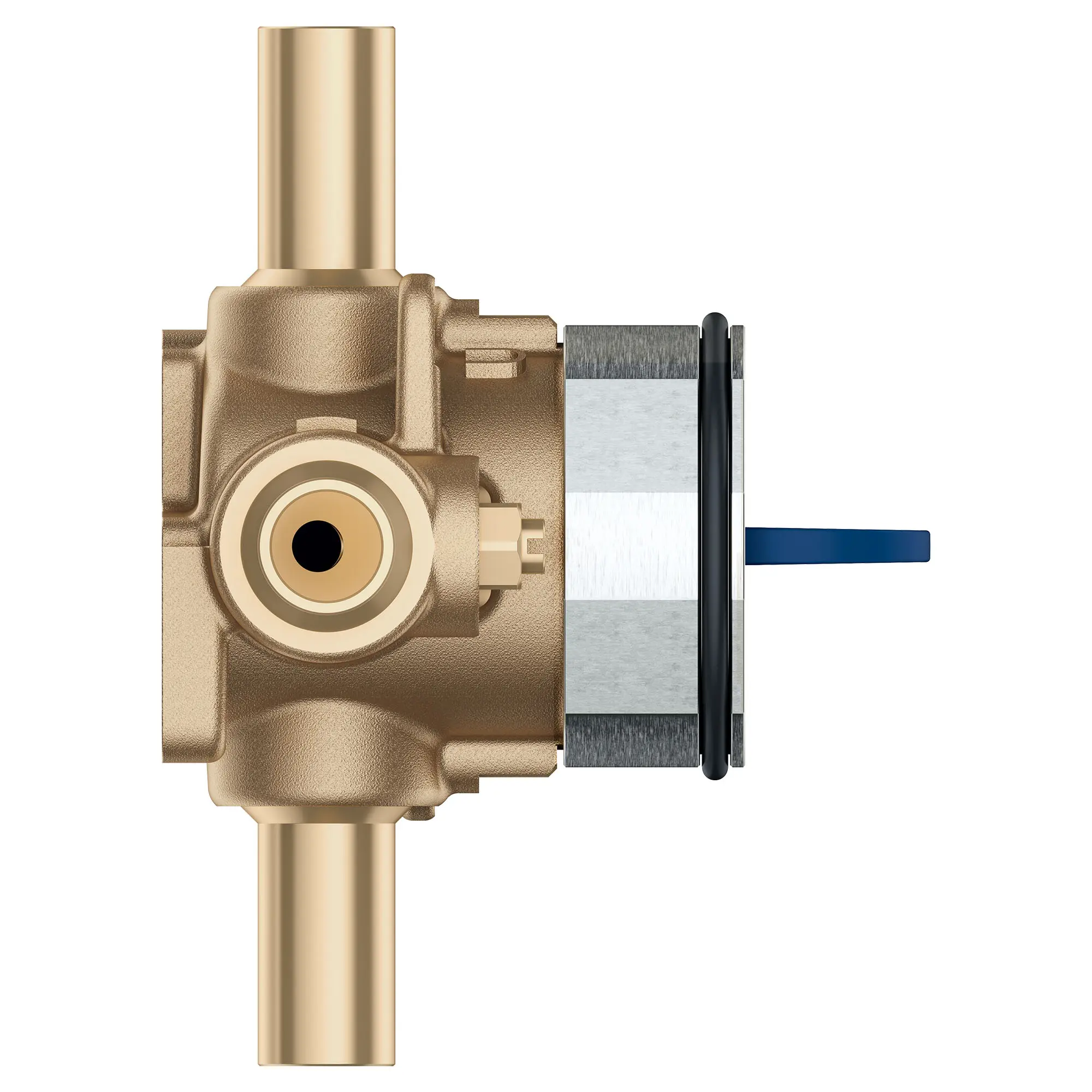

The GROHE GrohSafe 3.0 Shower Rough-in Valve is engineered for quick, easy installations no matter the situation. Compact body allows for a hassle-free fit even in tight spaces. Flat back ensures solid mounting on a standard cross brace, and installation on thin walls or steel is sturdy and secure. Made of DZR brass to resist corrosion, our exclusive stub-out connections allow you to connect press-connect fittings directly to the valve without additional solder or piping. Equipped with a flush plug, it allows you to quickly test or flush lines with ease. Stainless steel fixation ring keeps flush plug and cartridge in place without screws. Cartridge sold separately.

No Finish 35113000 DISCONTINUED
List Price: $108.00
Enjoy More Rewards
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Easily connect press-connect fittings directly to the valve without special adaptors
  • Flush plug allows valve body to be tested and flushed without the presence of the valve cartridge (ships with trim)
  • Can be tested using flush plug with air (200 psi) or water (300 psi)
  • Stainless steel retaining ring with flats secures flush plug and cartridge, eliminating the need for screws

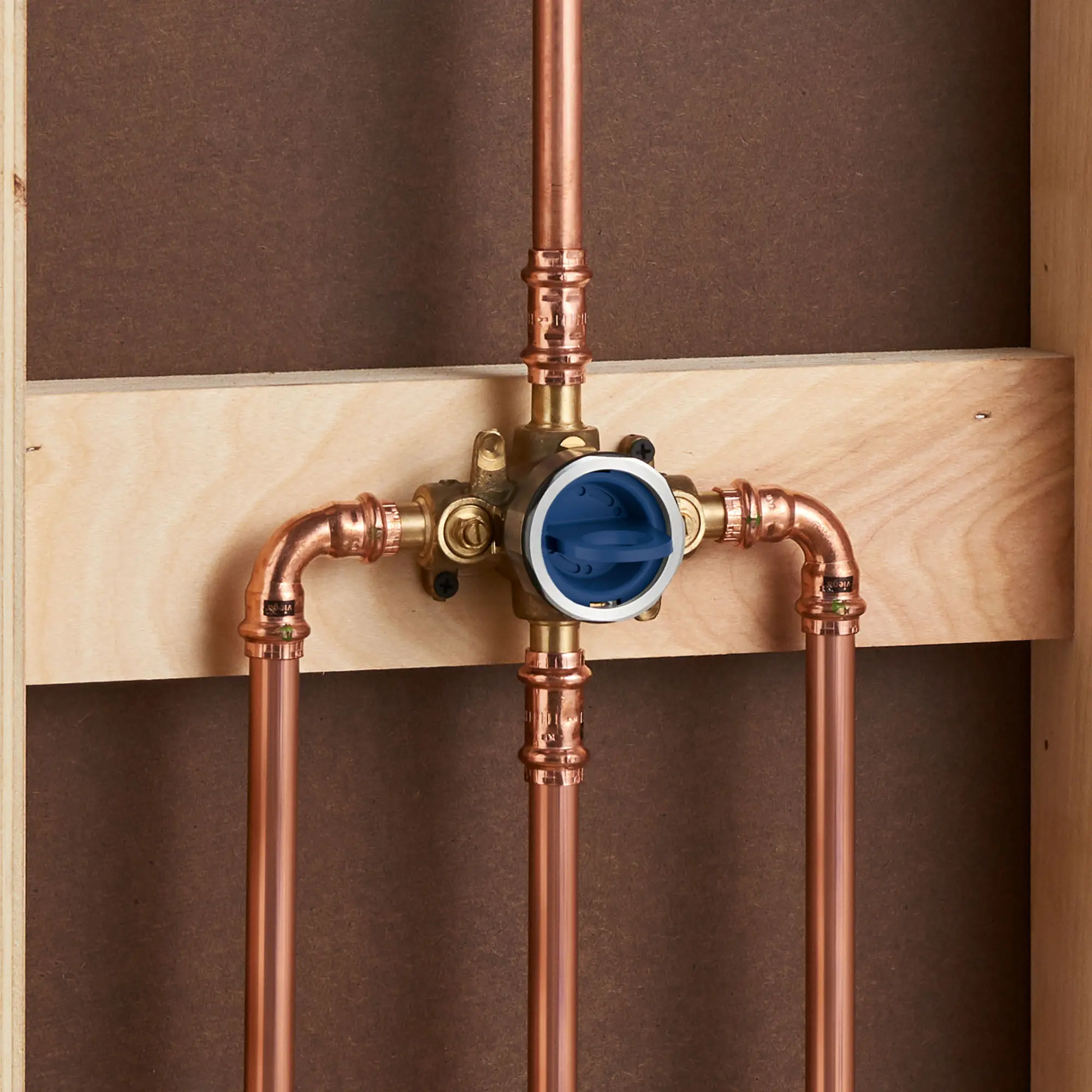

  • Flat back allows valve to be mounted flush against cross brace for easy and solid installation
  • DZR cast brass body is durable and corrosion-resistant even in harsh water conditions
  • Back-to-back capability allowing hot and cold to be reversed quickly and easily

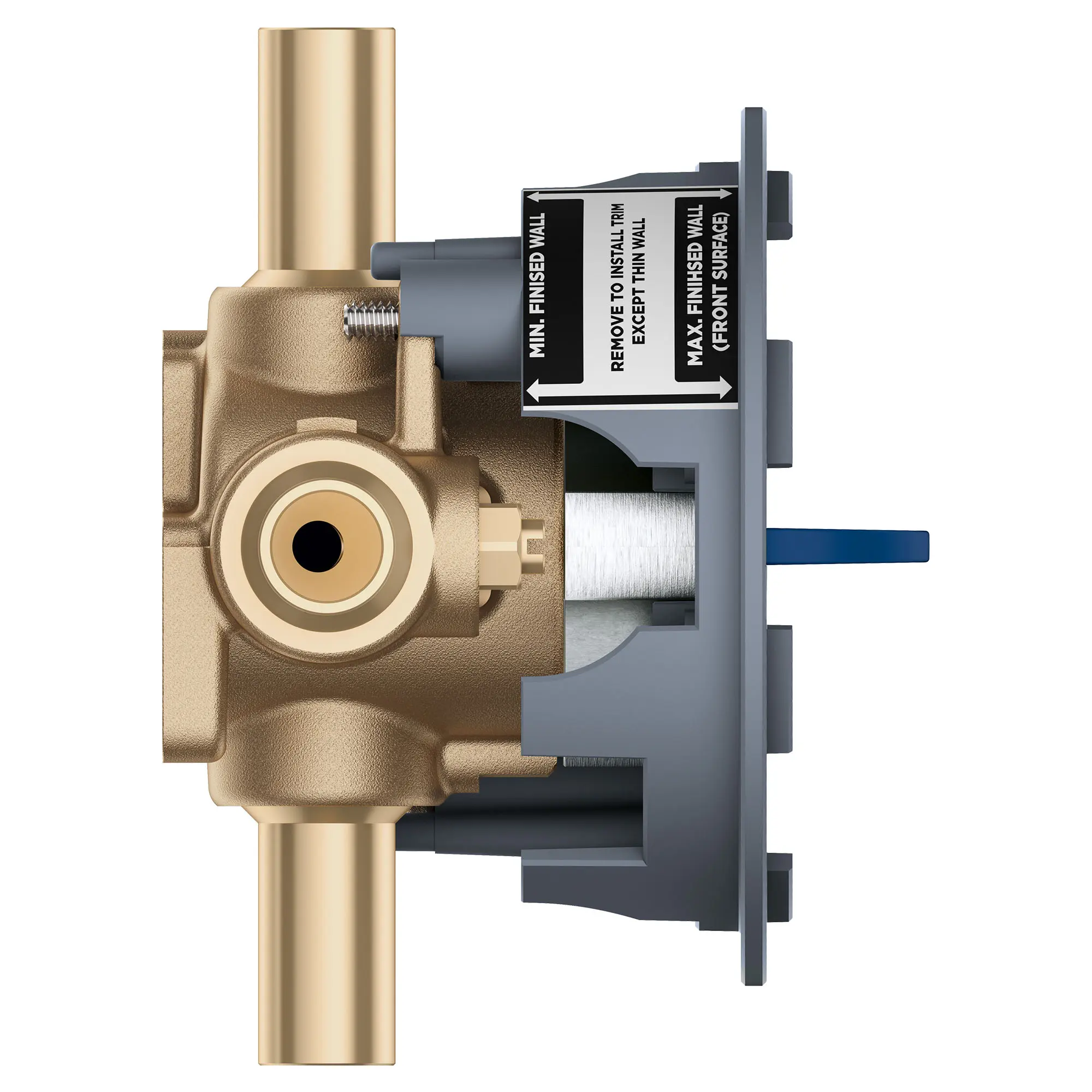

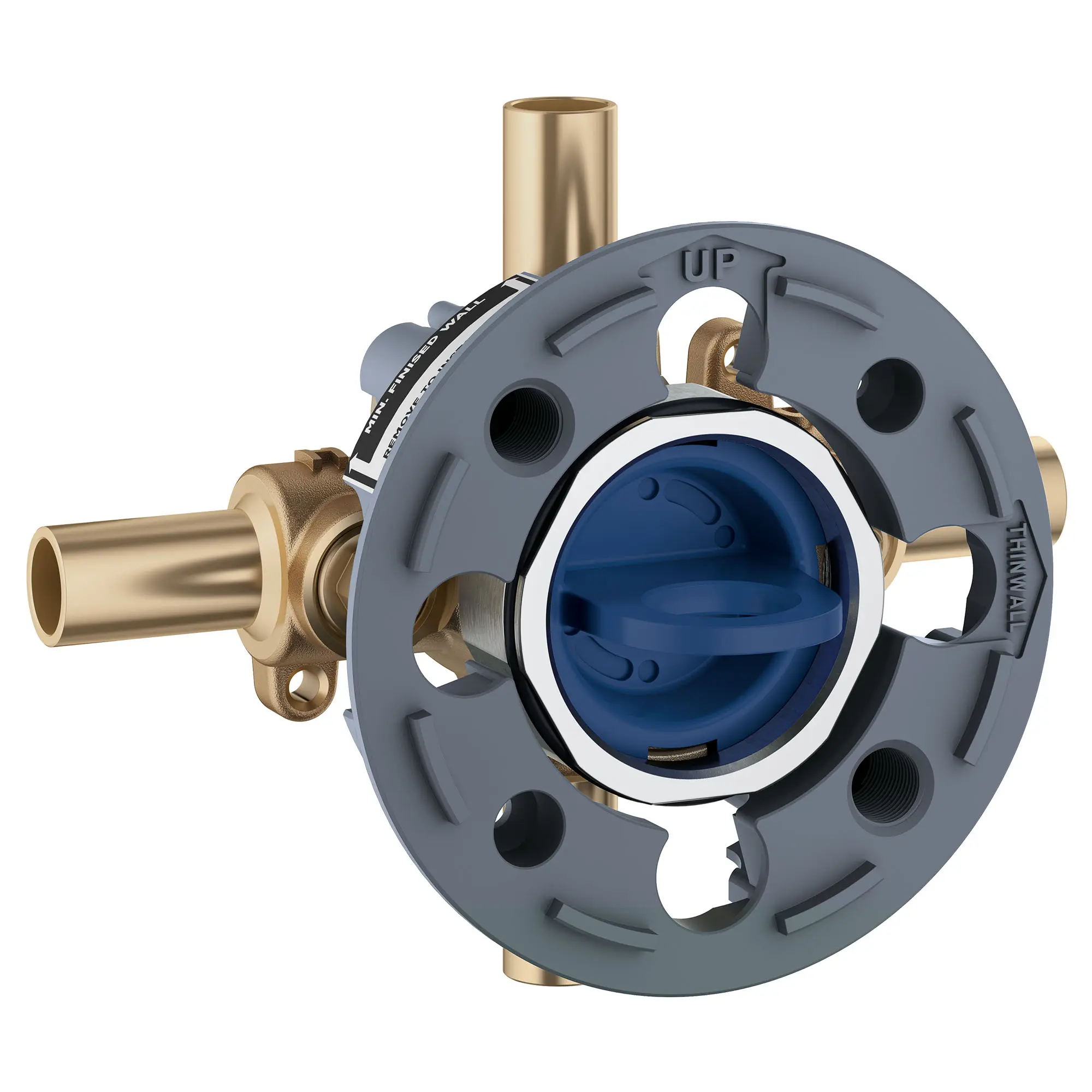

  • Exclusive plaster guard is designed to protect valve and act as a guide during installation
  • Plaster guard can serve as mounting support for thin-wall installations
  • Wide rough-in range from 1-3/4 in. to 2-3/4 in. from finished wall to back of valve,Includes service stops for easy servicing at the valve,Cartridge ships with trim
Technical Features
  • 1/2" Stub-out inlets/outlets
  • Accepts 1/2" press-connect fittings
  • Flush plug included
  • Made of DZR Brass
  • Service stops
  • Can be tested using flush plug with air (200psi) or water (300psi).
  • Cartridge ships with the trim
Nominal Dimensions: 2-3/4 in x 5-7/8 in x 4-3/4 in (70 mm x 149 mm x 121 mm)
Description
Net Weight
SKU
Color
List Price USD
Pressure Balance Rough-In Valve 1/2" Stub-out Inlets/Outlets
2 lb (0.8 kg)
35113000
No Finish (00G)
108
Download Specification Sheet
Brand: GROHE
Category: Rough-ins Concealed Bodies
Color / Finish: No Finish
Collections: GrohSafe™ 3.0
Kitchen or Bathroom: Bath
Number of Input Valves: 2
Number of Output Valves: 2
Height: 4-3/4
Length: 2-3/4
Width: 5-7/8
Residential or Commercial: Residential
Subcategory: Pressure Balance Valve Rough in
Download All Supporting Documents

Specification Sheet

Installation Instructions
Download All Design Files
3D Objects are not currently available for this product
