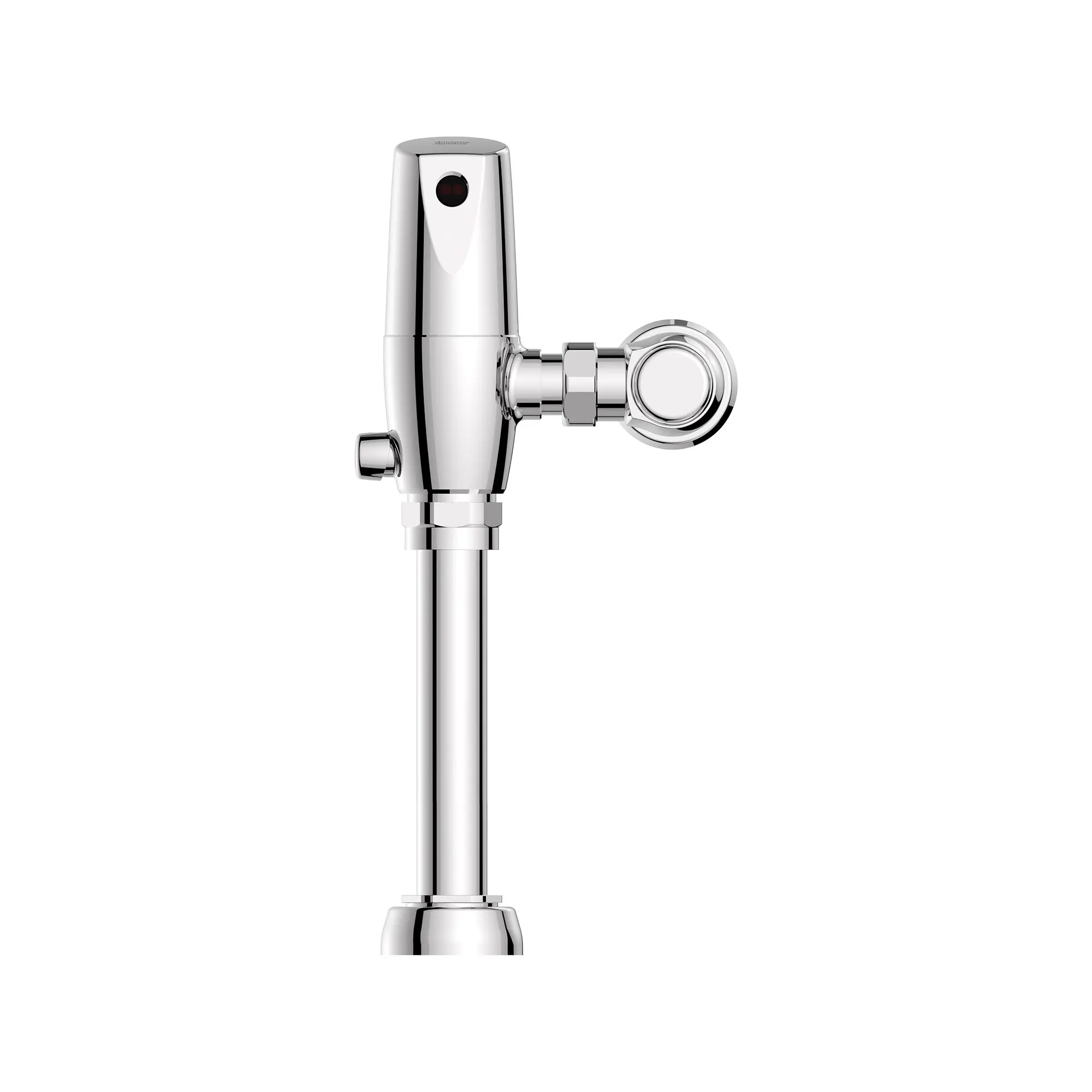

Ultima Selectronic Touchless Toilet Flush Valve, Piston-Type, PWRX, 1.28 gpf/4.8 Lpf

The optional PWRX™ Long-Life Battery System features advanced battery and electronics for a 10 year battery life to reduce the downtime and maintenance costs associated with changing batteries. Self-Cleaning Piston with integral wiper spring significantly reduces clogging and maintenanceDezincification Resistant semi-red brass alloySelectronic Proximity System with universal sensor provides hygienic, "hands free" operationState-of-the-Art Electronics prevent ghost flushingFully Mechanical Manual Override Button can flush the valve without powerFail-Safe: Valve automatically closes upon loss of power or water pressure and does not need to be resetSustainabilityCALGreen Compliant

Features
  • For flushometer bowls with 1-1/2-inch (38 mm) exposed top spud
  • 10-Year PWRX Battery installed in valve
  • Touchless operation limits the spread of germs
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
  • Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
  • Proprietary brass alloy resists dezincification
  • 11-1/2" (292 mm) rough-in
Technical Features
  • For flushometer bowls with 1-1/2-inch (38 mm) exposed top spud
  • 10-Year PWRX Battery installed in valve
  • Touchless operation limits the spread of germs
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
  • Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
  • Proprietary brass alloy resists dezincification
  • 11-1/2" (292 mm) rough-in
Description
Net Weight
SKU
Color
List Price USD
Ultima Selectronic Touchless Toilet Flush Valve, Piston-Type, PWRX, 1.28 gpf/4.8 Lpf
8 lb (3.8 kg)
Chrome (002)
690
ADA Compliant: Yes
Barrier Free: Yes
Batteries Included: Yes
Batteries Required: Yes
Brand: American Standard
Cal Green: Yes
Category: Flush Valves and Sanitary Items
Color / Finish: Chrome
Collections: Selectronic
Energy Start Certified: Yes
WaterSense: Yes
Fitting Connection Size Input: 1
Fitting Material: Brass
Touchless: Touchless
Fixture or Fitting Material: Brass
Gallons Per Flush (min-max): 1.28 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Number of Batteries Included: 1
Number of Output Valves: 1
Height: 16-1/2
Length: 4-1/2
Residential or Commercial: Commercial
Subcategory: Sensor Flush Valve and Sanitary Items
Water Efficient: Yes
