Manual Piston Flush Valve

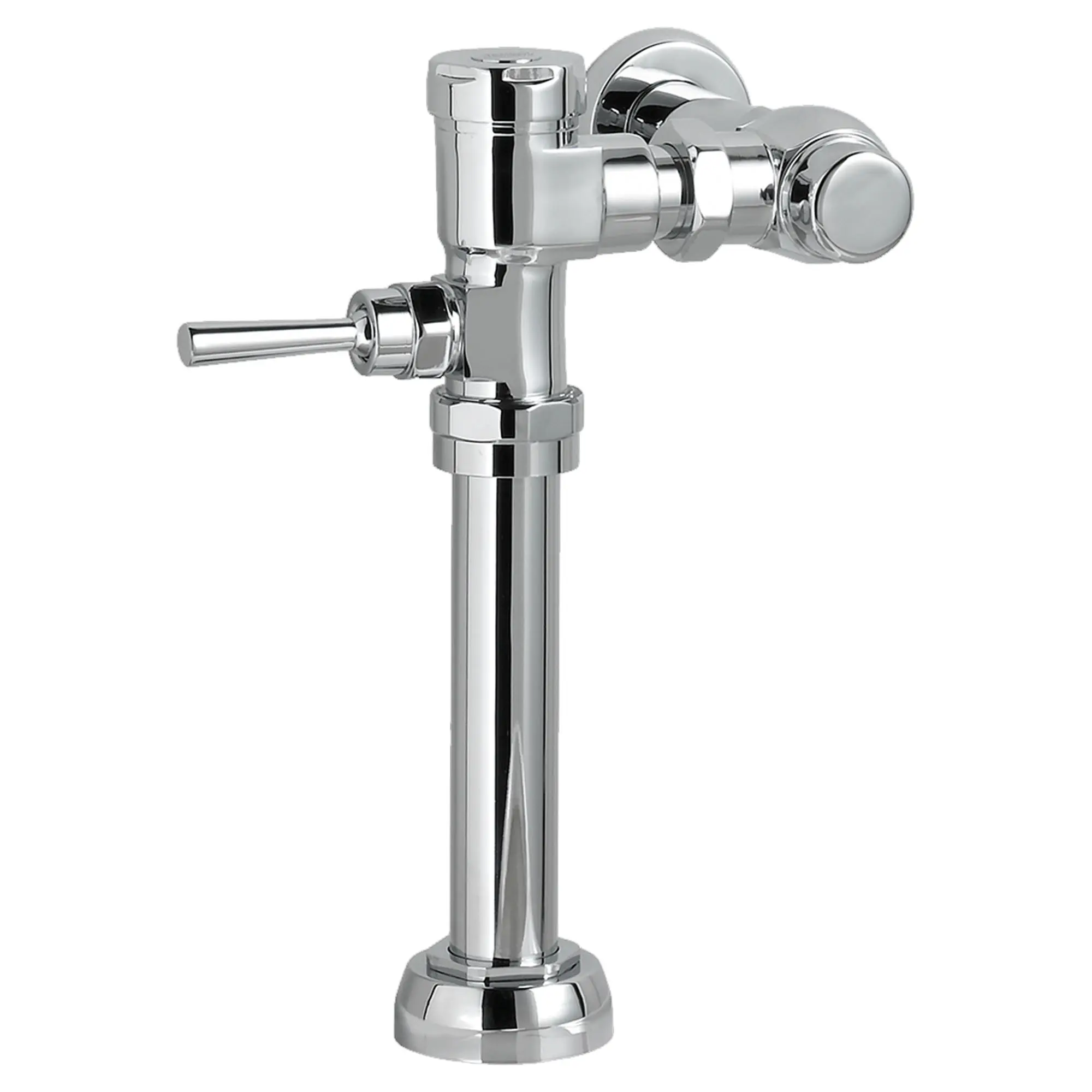

Ultima Manual Toilet Flush Valve, Piston-Type, 1.1 gpf/4.2 Lpf

This High Efficiency 1.1 gpf flush valve delivers 31.3% water savings when compared to standard 1.6 gpf toilet flush valves.NOTICE: To ensure proper performance, this 1.1 gpf (4.2 Lpf) Toilet Flush Valve must be installed on a flushometer bowl that is certified (per ASME A112.19.2/CSA B45.1) to operate at 1.1 gpf (4.2 Lpf).

Chrome 6047111.002 DISCONTINUED
List Price: $305.00
ADA Compliant Cal Green Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • For flushometer bowls with 1-1/2" (38 mm) exposed top spud
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • ADA-compliant non-hold open handle provides automatic shut-off after every flush
  • Piston operation delivers superior flush accuracy and repeatability
  • High back pressure vacuum breaker helps prevent dripping
  • Can be install left- or right-handed
  • No external volume adjustment
  • 11-1/2" (292 mm) rough-in
Technical Features
  • For flushometer bowls with 1-1/2" (38 mm) exposed top spud
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • ADA-compliant non-hold open handle provides automatic shut-off after every flush
  • Piston operation delivers superior flush accuracy and repeatability
  • High back pressure vacuum breaker helps prevent dripping
  • Can be install left- or right-handed
  • No external volume adjustment
  • 11-1/2" (292 mm) rough-in
There are no additional components to display for this product
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Flush Valves and Sanitary Items
Color / Finish: Chrome
Collections: Manual Piston Flush Valve
Fitting Connection Size Input: 1
Fitting Material: Brass
Fixture or Fitting Material: Brass
Gallons Per Flush (min-max): 1.1 GPF
Number of Output Valves: 1
Height: 345
Length: 247
Width: 286
Residential or Commercial: Commercial
Subcategory: Manual Flush Valve and Sanitary Items
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
