Features
- 6-Year CR-P2 lithium battery installed in faucet
- Touchless operation limits the spread of germs
- Single inlet for cold or tempered water
- Clean, integrated design. No control box below deck
- Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
- Auto Purge: Periodically purges stagnant water
- Safety Timer: Automatically turns water off after 55 seconds
- Vandal-resistant 1.5 gpm/5.7 Lpm pressure-compensating laminar flow outlet

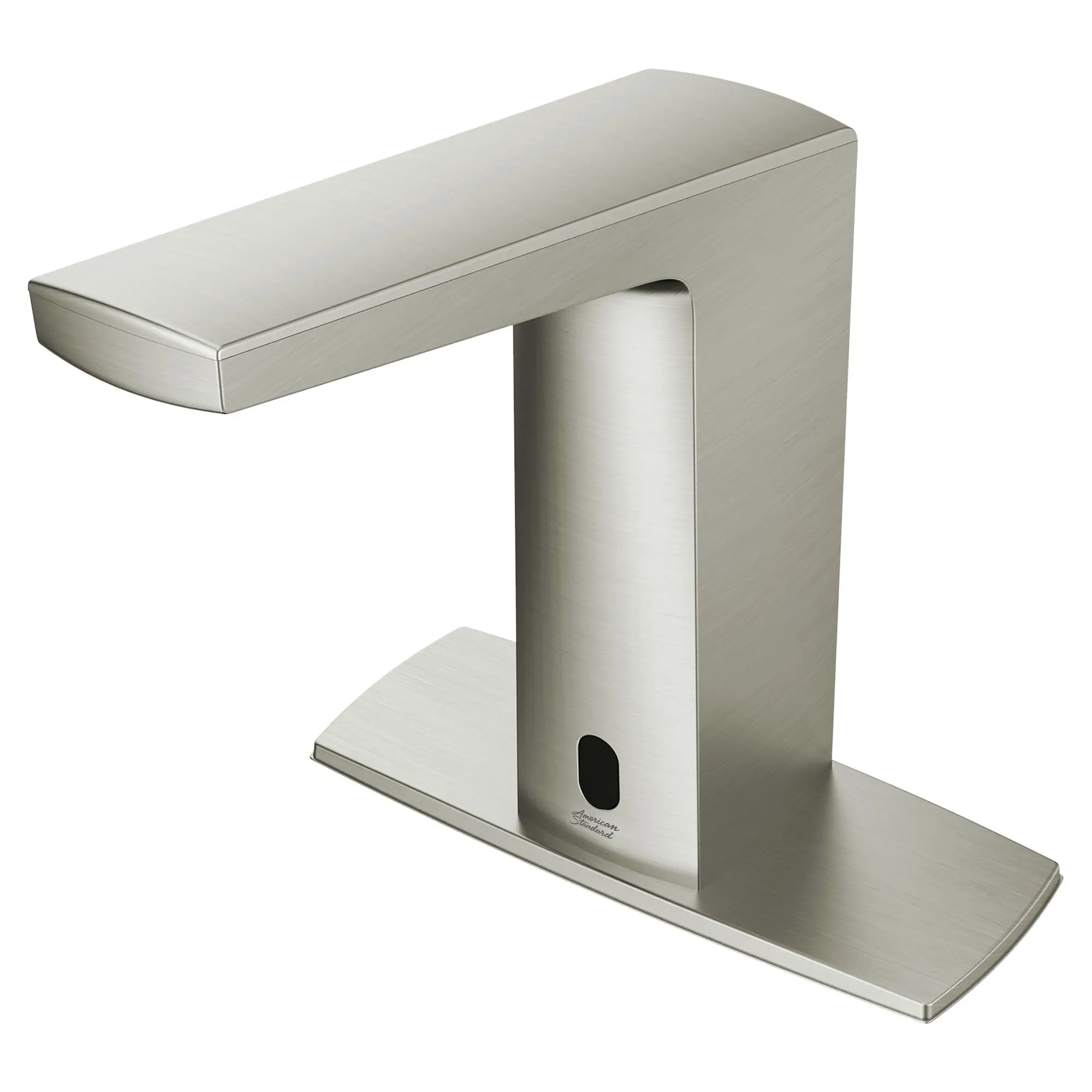

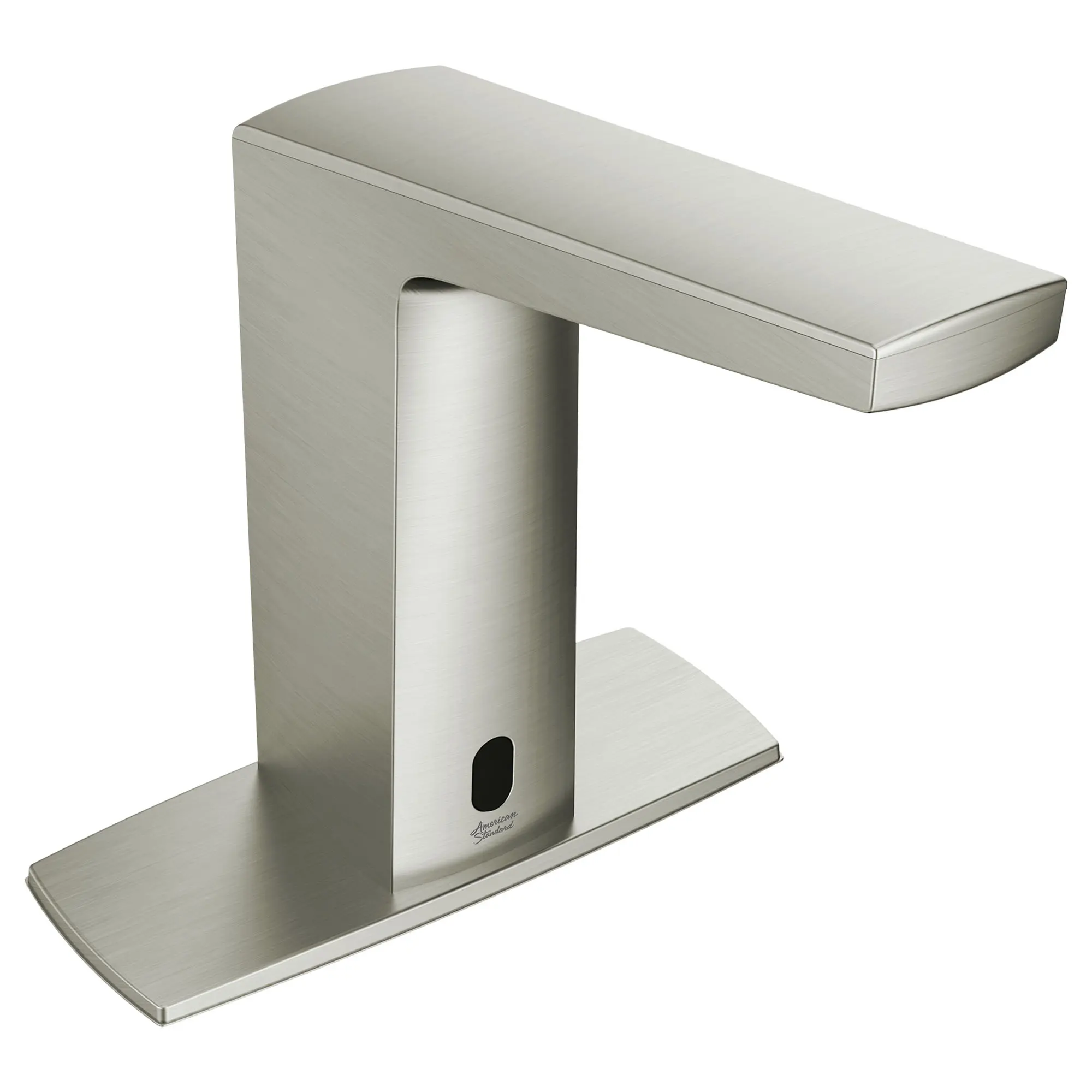

- Optional deck plate for 4-inch (102 mm) or 8-inch (203 mm) centers available
- Lead-Free: Faucet contains = 0.25% total lead content by weighted average
Technical Features
- 6-year CR-P2 lithium battery installed in faucet
- Touchless operation limits the spread of germs
- Clean, integrated design. No control box below deck
- Less mixing
- Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
- Auto Purge: Periodically purges stagnant water
- Safety Timer: Automatically turns water off after 55 seconds
- Adjustable Range: Detection zone can be adjusted manually or with optional remote control
- Single inlet for cold or tempered water
- Optional deck plates and remote control available (sold separately)
Nominal Dimensions: 7-1/2 in x 2 in x 7-1/2 in (191 mm x 51 mm x 191 mm)

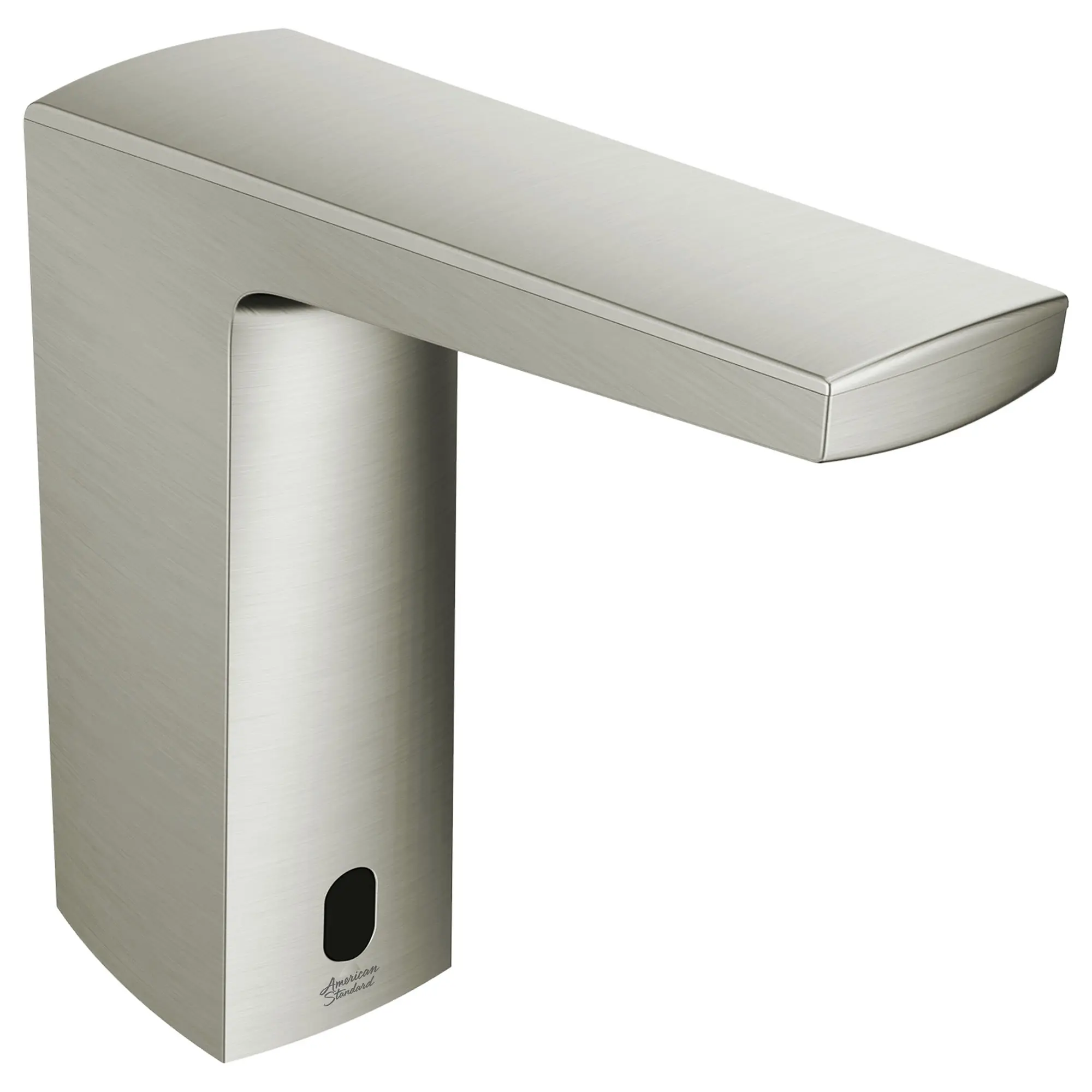

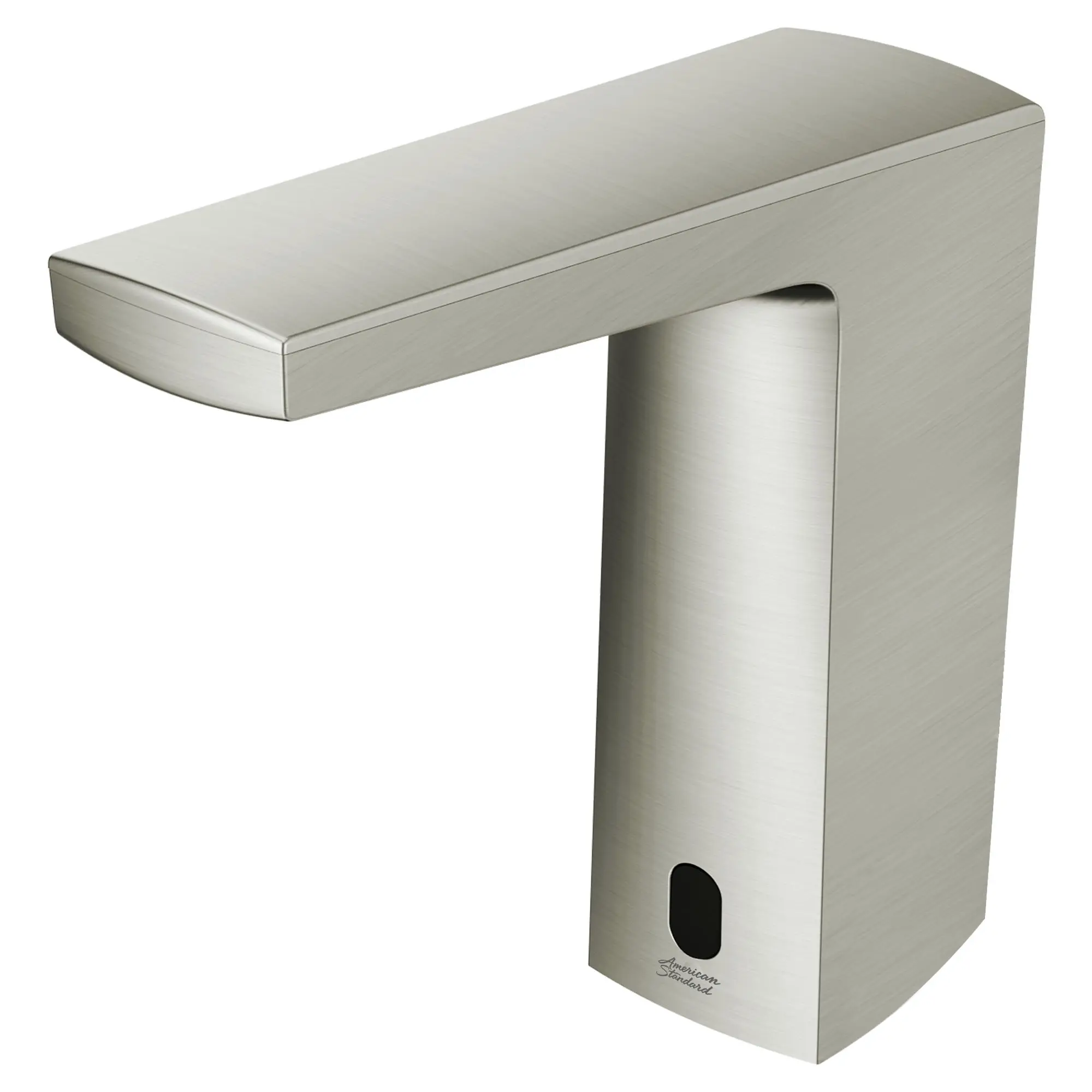

Paradigm® Selectronic® Touchless Faucet, Battery-Powered, 1.5 gpm/5.7 Lpm
5 lb (2.2 kg)
Brushed Nickel (295)
638
Chrome (002)
489
Models marked with * are discontinued, but product may still be available while supplies last.
ADA Compliant:
Yes
Barrier Free:
Yes
Batteries Included:
Yes
Batteries Required:
Yes
Brand:
American Standard
Category:
Commercial Fittings
Color / Finish:
Brushed Nickel
Collections:
Selectronic
WaterSense:
Yes
Fitting Connection Size Input:
3/8
Fitting Material:
Cast Metal
Mount Type:
Deck Mount
Spout Height:
6-21/32
Spout Type:
Standard
Touchless:
Touchless
Fixture or Fitting Material:
Cast Metal
Gallons Per Minute (min-max):
1.5 GPM
Input Connection Type:
Compression
Hardware Included:
Yes
Number of Batteries Included:
1
Height:
7-1/2
Length:
7-1/2
Width:
2
Residential or Commercial:
Commercial
Subcategory:
Sensor Commercial Fittings
Warranty:
5 Year Limited Warranty
Water Efficient:
Yes
