Selectronic

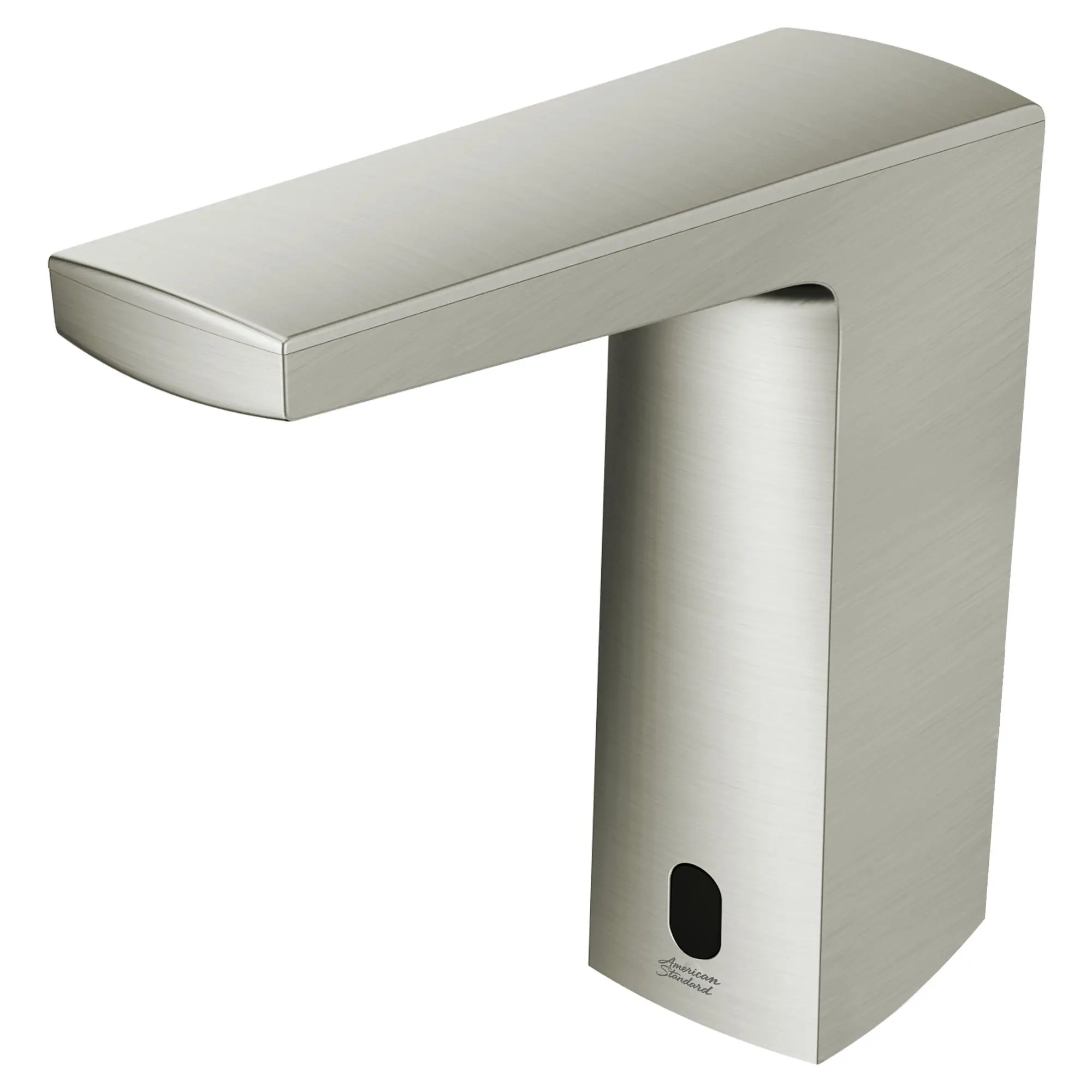

Paradigm® Selectronic® Touchless Faucet, Base Model, 0.35 gpm/1.3 Lpm

Sleek and streamlined, the Paradigm Selectronic Integrated Faucet from American Standard takes a cue from modern design. The simple integrated design, with all electronics in the spout, is engineered for easy installation and maintenance to save time and money. It eliminates the control box and provides for a clean, clutter-free under-deck space. Available in Chrome and Brushed Nickel.

Brushed Nickel 702B103.295 DISCONTINUED   Substitution Available (702B105.295)
List Price: $545.00
ADA Compliant Cal Green CEC Certified Environmental Product Declaration Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • Touchless operation limits the spread of germs
  • Single inlet for cold or tempered water
  • Clean, integrated design. No control box below deck
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Safety Timer: Automatically turns water off after 55 seconds
  • Vandal-resistant 0.35 gpm/1.3 Lpm pressure-compensating multi-laminar spray
  • Optional deck plate for 4-inch (102 mm) or 8-inch (203 mm) centers available
  • Lead-Free: Faucet contains = 0.25% total lead content by weighted average
Technical Features
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • Touchless operation limits the spread of germs
  • Clean, integrated design. No control box below deck
  • Less mixing
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Safety Timer: Automatically turns water off after 55 seconds
  • Adjustable Range: Detection zone can be adjusted manually or with optional remote control
  • Single inlet for cold or tempered water
  • Optional deck plates and remote control available (sold separately)
Nominal Dimensions: 7-1/2 in x 2 in x 7-1/2 in (191 mm x 51 mm x 191 mm)
Description
Net Weight
SKU
Color
List Price USD
Paradigm® Selectronic® Touchless Faucet, Base Model, 0.35 gpm/1.3 Lpm
4 lb (1.8 kg)
702B103.295 *
Brushed Nickel (295)
545
702B103.002 *
Chrome (002)
490
Required Components (Not Included)
Selectronic® PWRX Power Kit
0 lb (0.2 kg)
PK00.WRK
No Finish
172
spacer
Selectronic® Hard Wired AC Power Kit
1 lb (0.3 kg)
PK01.HAC
No Finish
140
spacer
Selectronic® Multi-AC Power Kit
0 lb (0.1 kg)
PK01.MAC
No Finish
78
spacer
Selectronic® Plug-In AC Power Kit
1 lb (0.4 kg)
PK01.PAC
No Finish
102
Optional Components (Not Included)

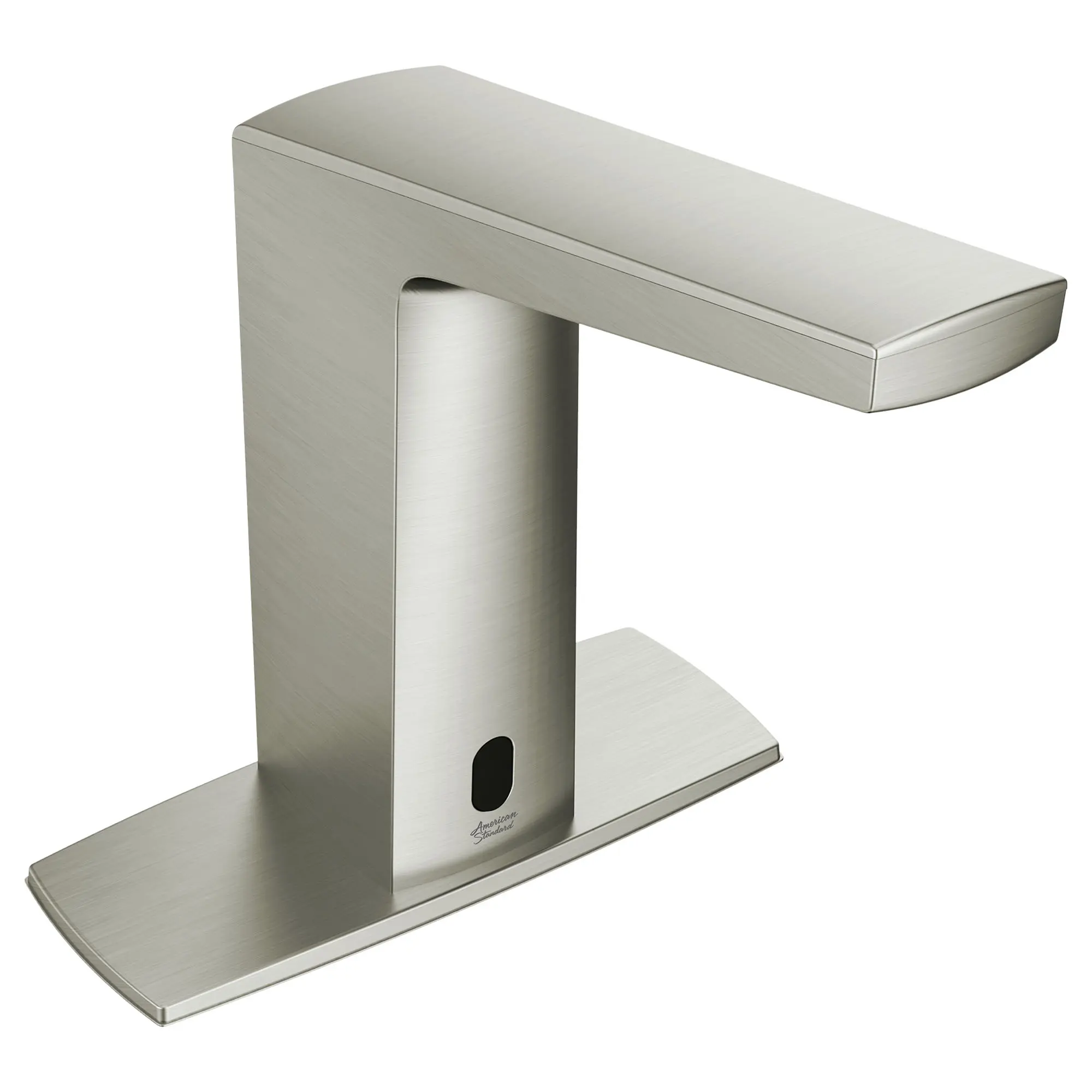

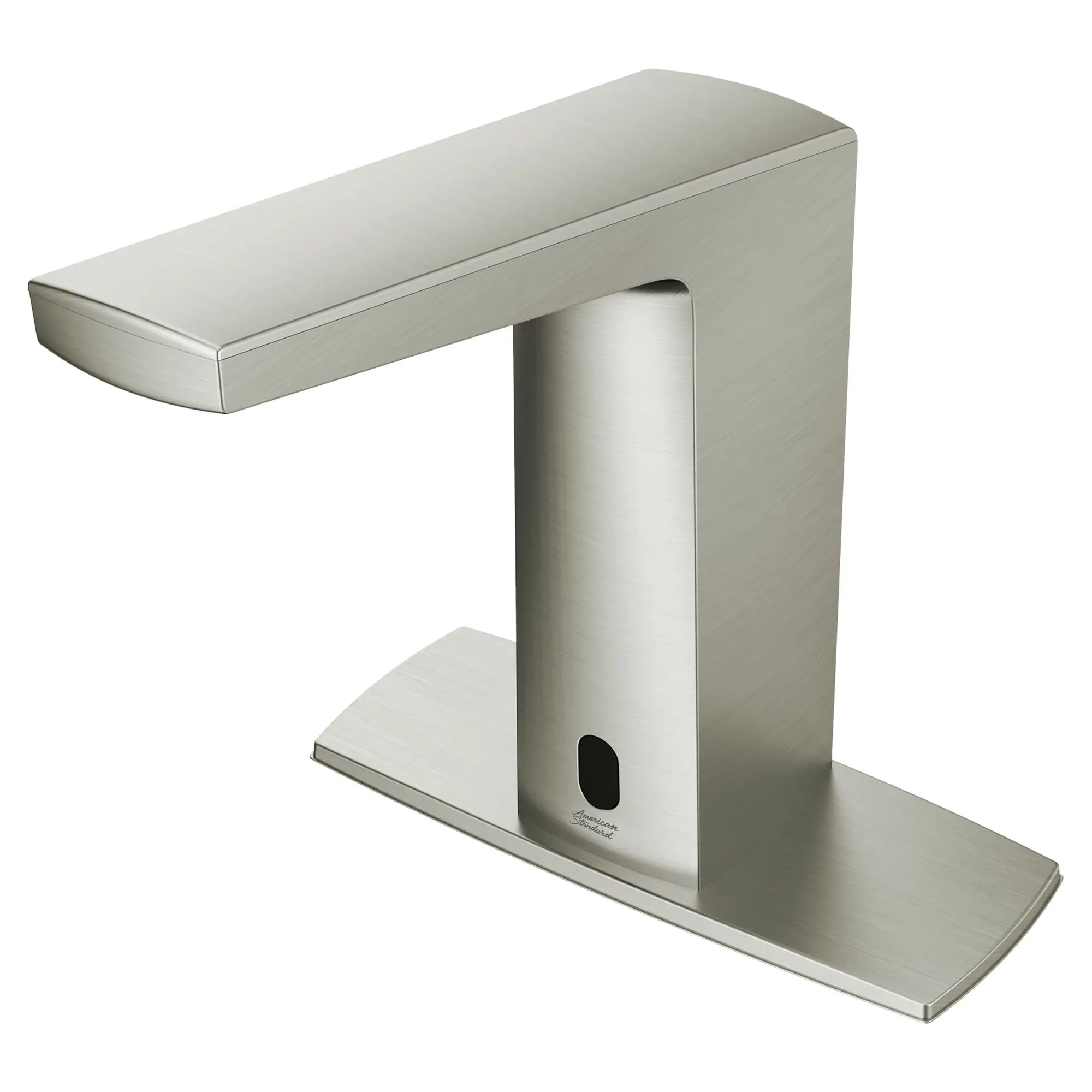

Paradigm® 4-Inch Deck Plate
1 lb (0.4 kg)
702P400.295 *
Brushed Nickel
82
spacer
NextGen 8-Inch Deck Plate
1 lb (0.5 kg)
775P800.295 *
Brushed Nickel
115
Substitutions
Paradigm® Selectronic® Touchless Faucet, Base Model, 0.5 gpm/1.9 Lpm
4 lb (1.8 kg)
702B105.295 *
Brushed Nickel
612


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Commercial Fittings
CEC Certified: Yes
Color / Finish: Brushed Nickel
Collections: Selectronic
Fitting Connection Size Input: 3/8
Fitting Material: Cast Metal
Mount Type: Deck Mount
Spout Height: 6-21/32
Spout Type: Standard
Touchless: Touchless
Fixture or Fitting Material: Cast Metal
Gallons Per Minute (min-max): 0.35 GPM
Input Connection Type: Compression
Hardware Included: Yes
Height: 7-1/2
Length: 7-1/2
Width: 2
Residential or Commercial: Commercial
Subcategory: Sensor Commercial Fittings
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts

Environmental Product Declaration
There are no design files currently available for this product
There are no videos currently available for this product
3D Objects are not currently available for this product
