Selectronic

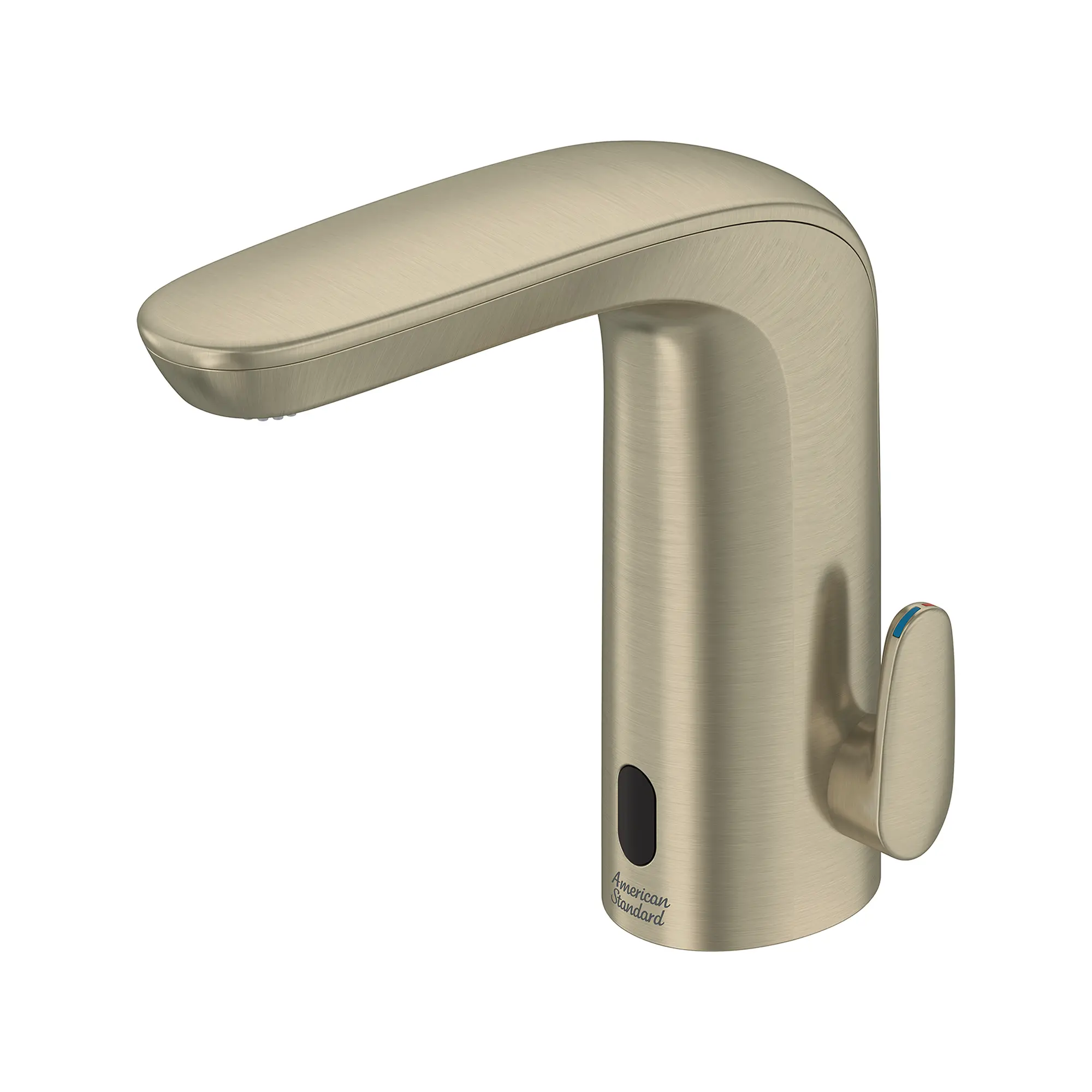

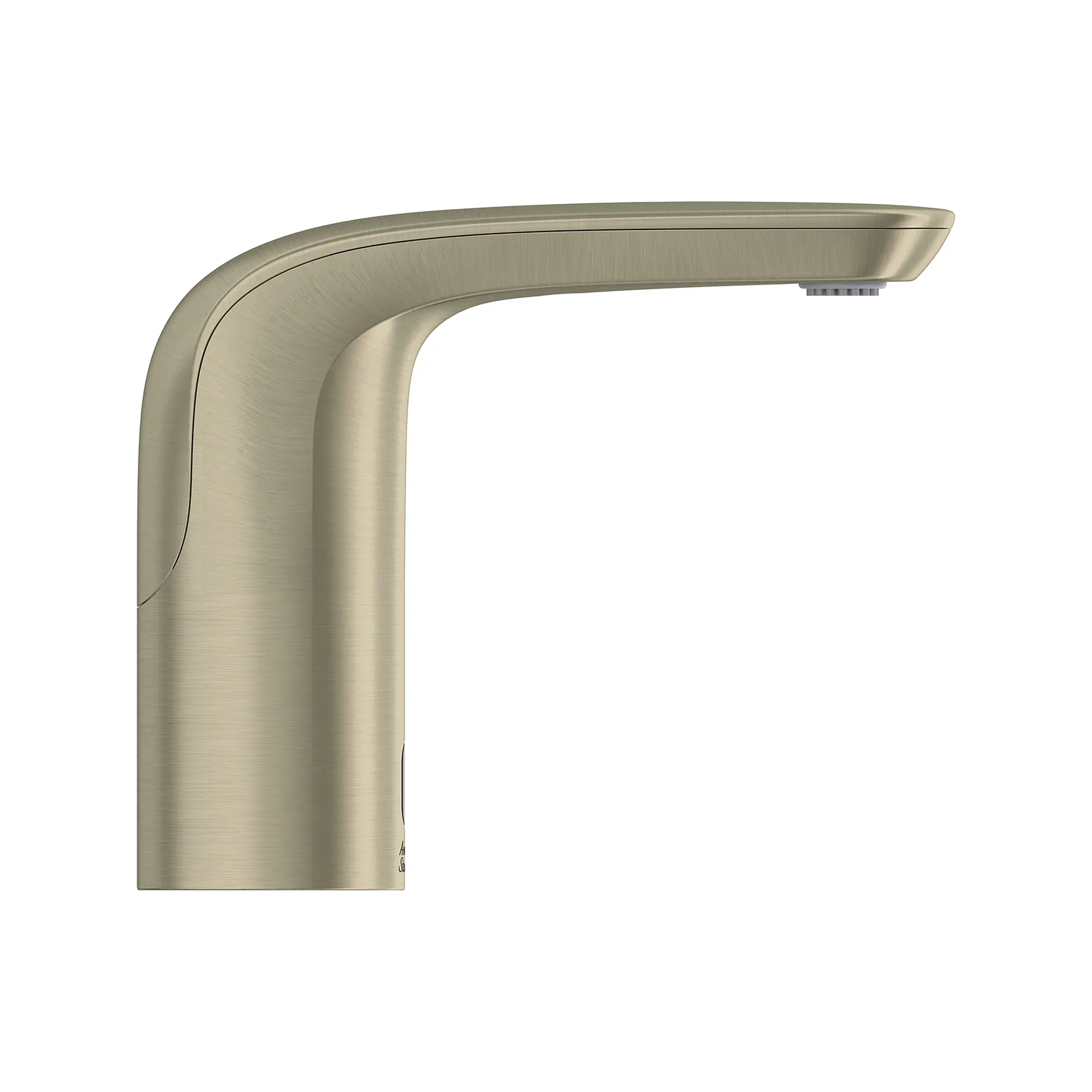

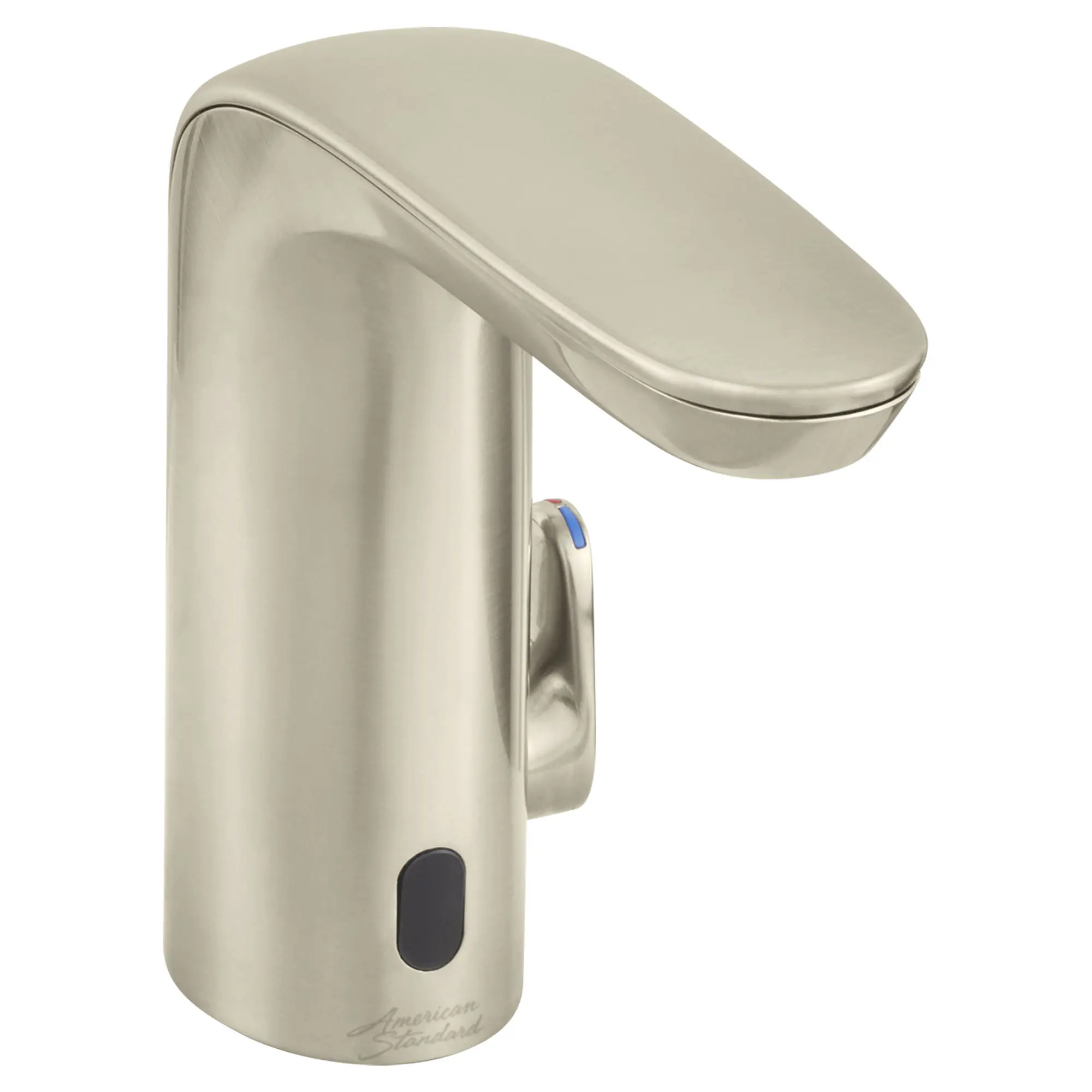

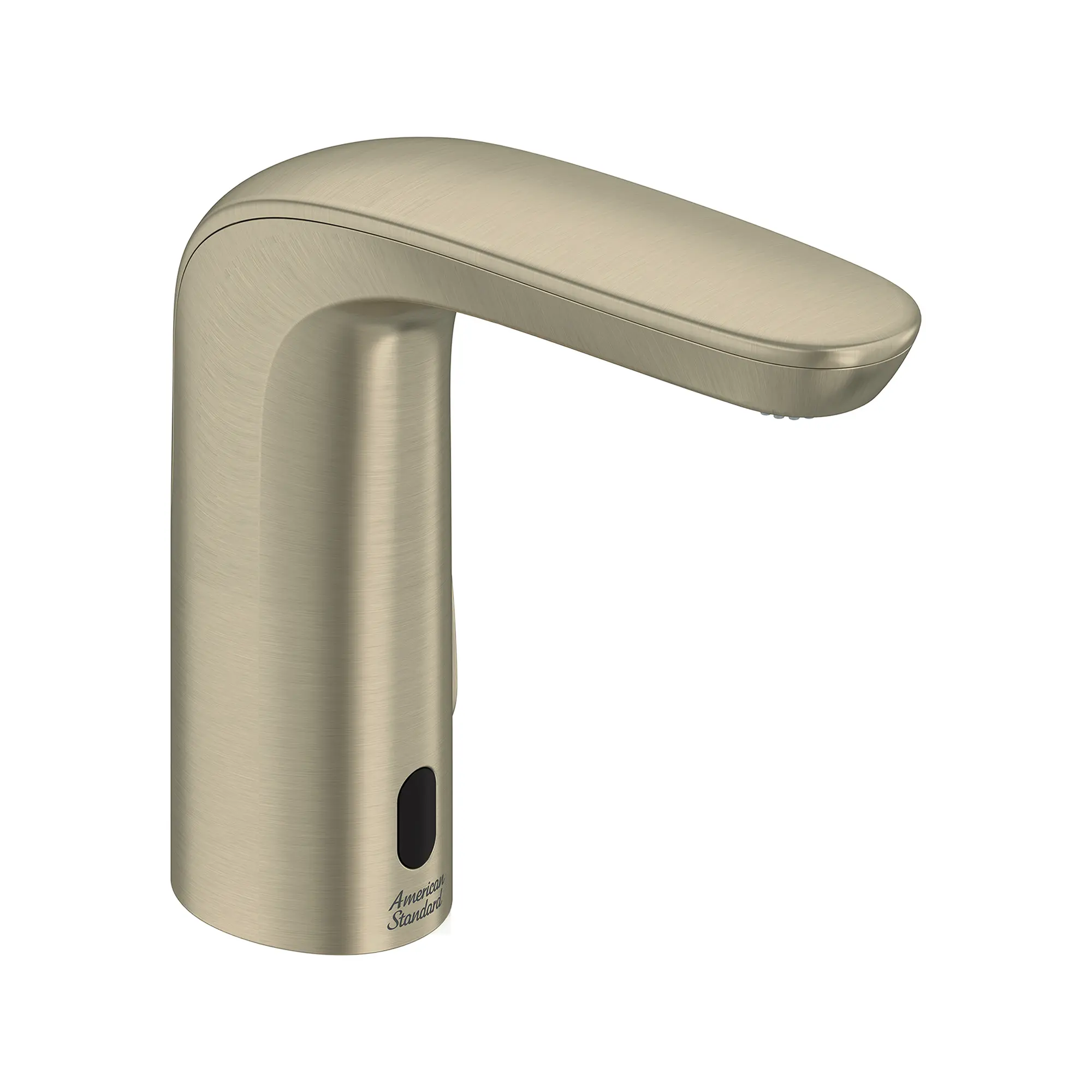

NextGen Selectronic® Touchless Faucet, Battery-Powered With Above-Deck Mixing, 0.5 gpm/1.9 Lpm

This NextGen Selectronic Commercial Faucet from American Standard has a sleek, clean design that brings elevated style to the bathroom. The integrated electronics locates the sensor, battery and solenoid valve in the faucet spout and eliminates the need for a control box.

Brushed Nickel 7755205.295 DISCONTINUED   Substitution Available (7766205.295)
List Price: $725.00
ADA Compliant Cal Green CEC Certified Environmental Product Declaration Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • 6-Year CR-P2 lithium battery installed in faucet
  • Touchless operation limits the spread of germs
  • Above-deck mixing with removable handle
  • Dual inlets for hot and cold water
  • Clean, integrated design. No control box below deck
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Safety Timer: Automatically turns water off after 55 seconds
  • Vandal-resistant 0.5 gpm/1.9 Lpm pressure-compensating multi-laminar spray
  • Optional deck plate for 4-inch (102 mm) or 8-inch (203 mm) centers available
Technical Features
  • 6-year CR-P2 lithium battery installed in faucet
  • Touchless operation limits the spread of germs
  • Above-deck mixing with removable handle
  • Clean, integrated design. No control box below deck
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Safety Timer: Automatically turns water off after 55 seconds
  • Adjustable Range: Detection zone can be adjusted manually or with optional remote control
  • Dual inlets for hot and cold water
  • Optional deck plates and remote control available (sold separately)
Nominal Dimensions: 6-7/8 in x 1-7/8 in x 5-3/4 in (175 mm x 48 mm x 146 mm)
Description
Net Weight
SKU
Color
List Price USD
NextGen Selectronic® Touchless Faucet, Battery-Powered With Above-Deck Mixing, 0.5 gpm/1.9 Lpm
3 lb (1.4 kg)
7755205.295 *
Brushed Nickel (295)
725
7755205.002 *
Chrome (002)
557
Optional Components (Not Included)
NextGen 4-Inch Deck Plate
1 lb (0.3 kg)
775P400.295 *
Brushed Nickel
79
spacer
NextGen 8-Inch Deck Plate
1 lb (0.5 kg)
775P800.295 *
Brushed Nickel
115
Substitutions
NextGen Selectronic® Touchless Faucet, Battery-Powered With Above-Deck Mixing, 0.5 gpm/1.9 Lpm
2 lb (1.0 kg)
7766205.295
Brushed Nickel
711


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Batteries Included: Yes
Batteries Required: Yes
Brand: American Standard
Cal Green: Yes
Category: Commercial Fittings
CEC Certified: Yes
Color / Finish: Brushed Nickel
Collections: Selectronic
Fitting Connection Size Input: 3/8
Handle Type: Electronic
Fitting Material: Cast Metal
Mount Type: Deck Mount
Fitting Number of Holes: 1
Spout Height: 5
Spout Type: Stationary
Touchless: Touchless
Fixture or Fitting Material: Cast Metal
Gallons Per Minute (min-max): 0.5 GPM
Input Connection Type: Compression
Hardware Included: Yes
Number of Batteries Included: 1
Height: 5-3/4
Length: 6-7/8
Width: 1-7/8
Residential or Commercial: Commercial
Subcategory: Sensor Commercial Fittings
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts

Environmental Product Declaration
