Selectronic

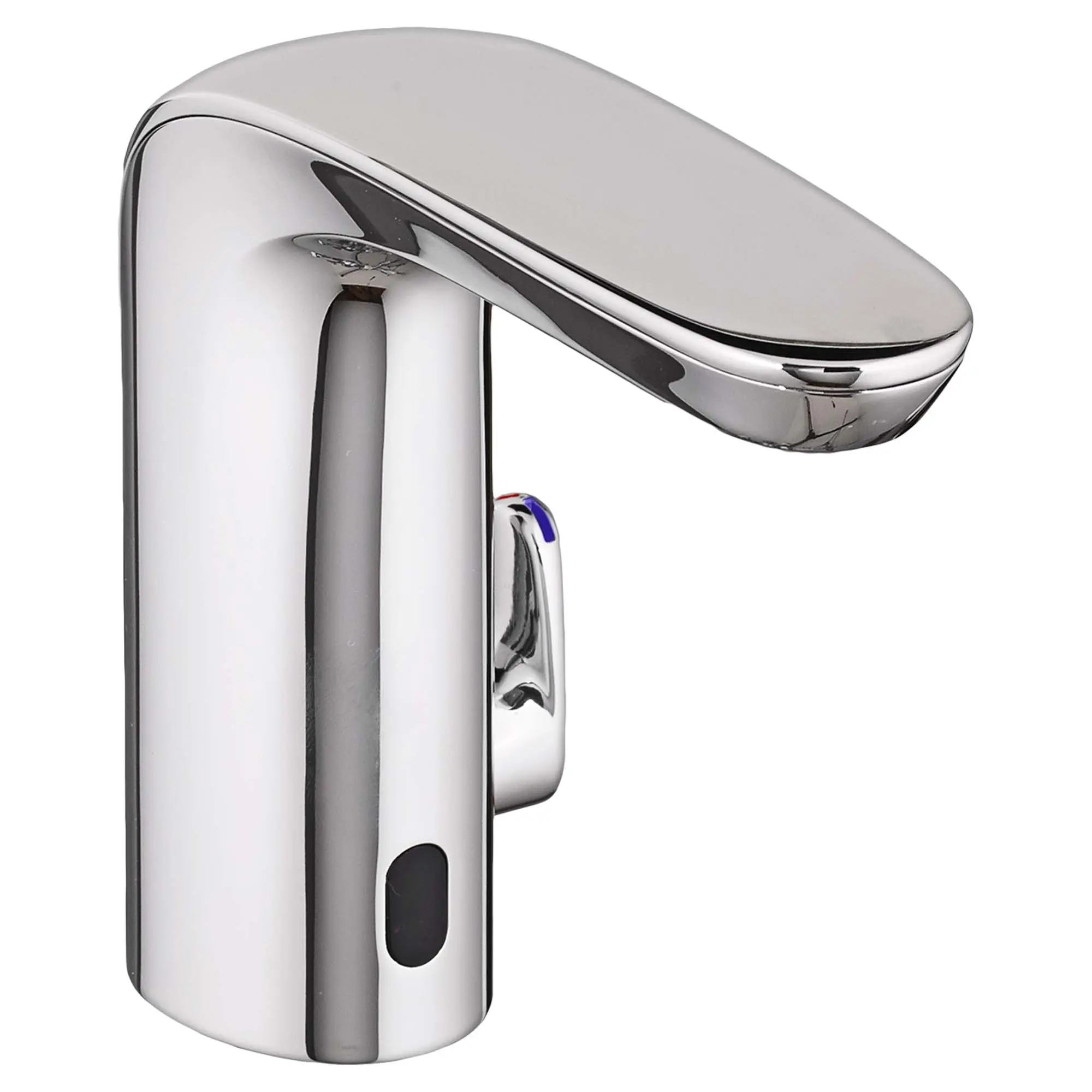

NextGen Selectronic® Touchless Faucet, Battery-Powered With Above-Deck Mixing, 0.35 gpm/1.3 Lpm

This NextGen Selectronic Commercial Faucet from American Standard has a sleek, clean design that brings elevated style to the bathroom. The integrated electronics locates the sensor, battery and solenoid valve in the faucet spout and eliminates the need for a control box.

Chrome 7755203.002 DISCONTINUED   Substitution Available (7766203.002)
List Price: $557.00
ADA Compliant Cal Green CEC Certified Environmental Product Declaration Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • 6-Year CR-P2 lithium battery installed in faucet
  • Touchless operation limits the spread of germs
  • Above-deck mixing with removable handle
  • Dual inlets for hot and cold water
  • Clean, integrated design. No control box below deck
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Safety Timer: Automatically turns water off after 55 seconds
  • Vandal-resistant 0.35 gpm/1.3 Lpm pressure-compensating multi-laminar spray
  • Optional deck plate for 4-inch (102 mm) or 8-inch (203 mm) centers available
Technical Features
  • 6-year CR-P2 lithium battery installed in faucet
  • Touchless operation limits the spread of germs
  • Above-deck mixing with removable handle
  • Clean, integrated design. No control box below deck
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Safety Timer: Automatically turns water off after 55 seconds
  • Adjustable Range: Detection zone can be adjusted manually or with optional remote control
  • Dual inlets for hot and cold water
  • Optional deck plates and remote control available (sold separately)
Nominal Dimensions: 6-7/8 in x 1-7/8 in x 5-3/4 in (175 mm x 48 mm x 146 mm)
Description
Net Weight
SKU
Color
List Price USD
NextGen Selectronic® Touchless Faucet, Battery-Powered With Above-Deck Mixing, 0.35 gpm/1.3 Lpm
3 lb (1.4 kg)
7755203.002 *
Chrome (002)
557
7755203.295 *
Brushed Nickel (295)
646
Optional Components (Not Included)
NextGen 4-Inch Deck Plate
1 lb (0.3 kg)
775P400.002 *
Chrome
58
spacer
NextGen 8-Inch Deck Plate
1 lb (0.5 kg)
775P800.002 *
Chrome
97
Substitutions
NextGen Selectronic® Touchless Faucet, Battery-Powered With Above-Deck Mixing, 0.35 gpm/1.3 Lpm
2 lb (1.1 kg)
7766203.002
Chrome
546


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Batteries Included: Yes
Batteries Required: Yes
Brand: American Standard
Cal Green: Yes
Category: Commercial Fittings
CEC Certified: Yes
Color / Finish: Chrome
Collections: Selectronic
Fitting Connection Size Input: 3/8
Handle Type: Electronic
Fitting Material: Cast Metal
Mount Type: Deck Mount
Fitting Number of Holes: 1
Spout Height: 5
Spout Type: Stationary
Touchless: Touchless
Fixture or Fitting Material: Cast Metal
Gallons Per Minute (min-max): 0.35 GPM
Input Connection Type: Compression
Hardware Included: Yes
Number of Batteries Included: 1
Height: 5-3/4
Length: 6-7/8
Width: 1-7/8
Residential or Commercial: Commercial
Subcategory: Sensor Commercial Fittings
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts

Environmental Product Declaration
Download All Design Files
REVIT Files
.rfa icon REVIT File
3D Objects are not currently available for this product
