NextGen Selectronic® Touchless Faucet, Base Model With Above-Deck Mixing, 0.5 gpm/1.9 Lpm

This NextGen Selectronic Commercial Faucet from American Standard includes an above-deck mixing handle, allowing the user to adjust the water temperature to their liking. This faucet has a sleek, clean design that brings elevated style to the bathroom. The integrated electronics locates the sensor, battery and solenoid valve in the faucet spout and eliminates the need for a control box. POWER KITS MUST BE PURCHASED SEPARATELY.

Brushed Nickel 775B205.295 DISCONTINUED   Substitution Available (706B205.295)
List Price: $628.00
ADA Compliant Cal Green CEC Certified Environmental Product Declaration Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • Touchless operation limits the spread of germs

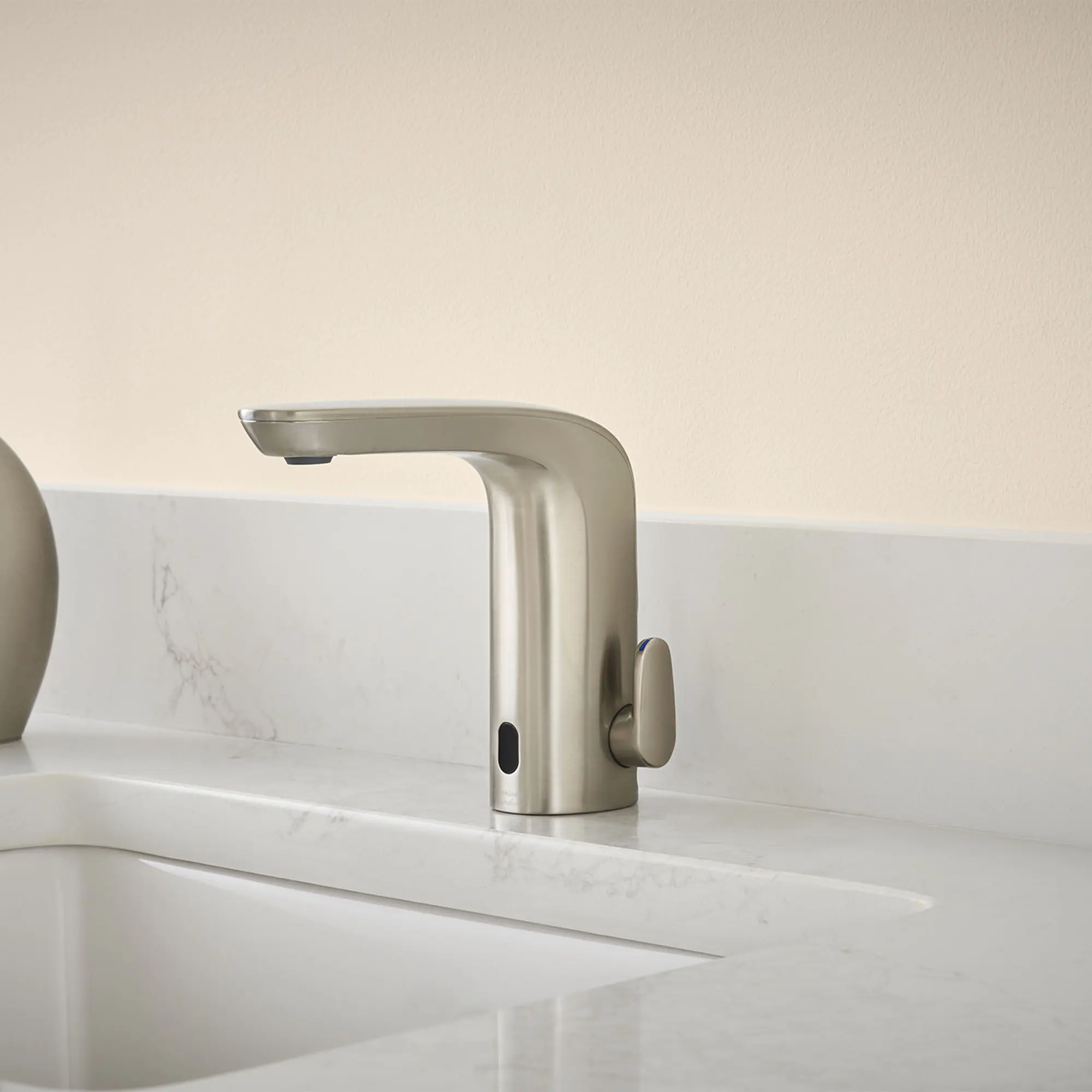

  • Above-deck mixing with removable handle
  • Dual inlets for hot and cold water
  • Clean, integrated design. No control box below deck
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Safety Timer: Automatically turns water off after 55 seconds
  • Vandal-resistant 0.5 gpm/1.9 Lpm pressure-compensating multi-laminar spray
  • Optional deck plate for 4-inch (102 mm) or 8-inch (203 mm) centers available
Technical Features
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • Touchless operation limits the spread of germs
  • Above-deck mixing with removable handle
  • Clean, integrated design. No control box below deck
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Safety Timer: Automatically turns water off after 55 seconds
  • Adjustable Range: Detection zone can be adjusted manually or with optional remote control
  • Dual inlets for hot and cold water
  • Optional deck plates and remote control available (sold separately)
Nominal Dimensions: 6-7/8 in x 1-7/8 in x 5-3/4 in (175 mm x 48 mm x 146 mm)
Description
Net Weight
SKU
Color
List Price USD
NextGen Selectronic® Touchless Faucet, Base Model With Above-Deck Mixing, 0.5 gpm/1.9 Lpm
3 lb (1.3 kg)
775B205.295 *
Brushed Nickel (295)
628
775B205.002 *
Chrome (002)
502
Optional Components (Not Included)
NextGen 4-Inch Deck Plate
1 lb (0.3 kg)
775P400.295 *
Brushed Nickel
79
spacer
NextGen 8-Inch Deck Plate
1 lb (0.5 kg)
775P800.295 *
Brushed Nickel
115
Substitutions
NextGen Selectronic® Touchless Faucet, Base Model With Above-Deck Mixing, 0.5 gpm/1.9 Lpm
2 lb (1.0 kg)
706B205.295
Brushed Nickel
615


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Commercial Fittings
CEC Certified: Yes
Color / Finish: Brushed Nickel
Collections: Selectronic
Fitting Connection Size Input: 3/8
Handle Type: Electronic
Fitting Material: Cast Metal
Mount Type: Deck Mount
Fitting Number of Holes: 1
Spout Height: 5
Spout Type: Stationary
Touchless: Touchless
Fixture or Fitting Material: Cast Metal
Gallons Per Minute (min-max): 0.5 GPM
Input Connection Type: Compression
Hardware Included: Yes
Number of Batteries Included: 1
Height: 5-3/4
Length: 6-7/8
Width: 1-7/8
Residential or Commercial: Commercial
Subcategory: Sensor Commercial Fittings
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Environmental Product Declaration
There are no design files currently available for this product
3D Objects are not currently available for this product
