Selectronic

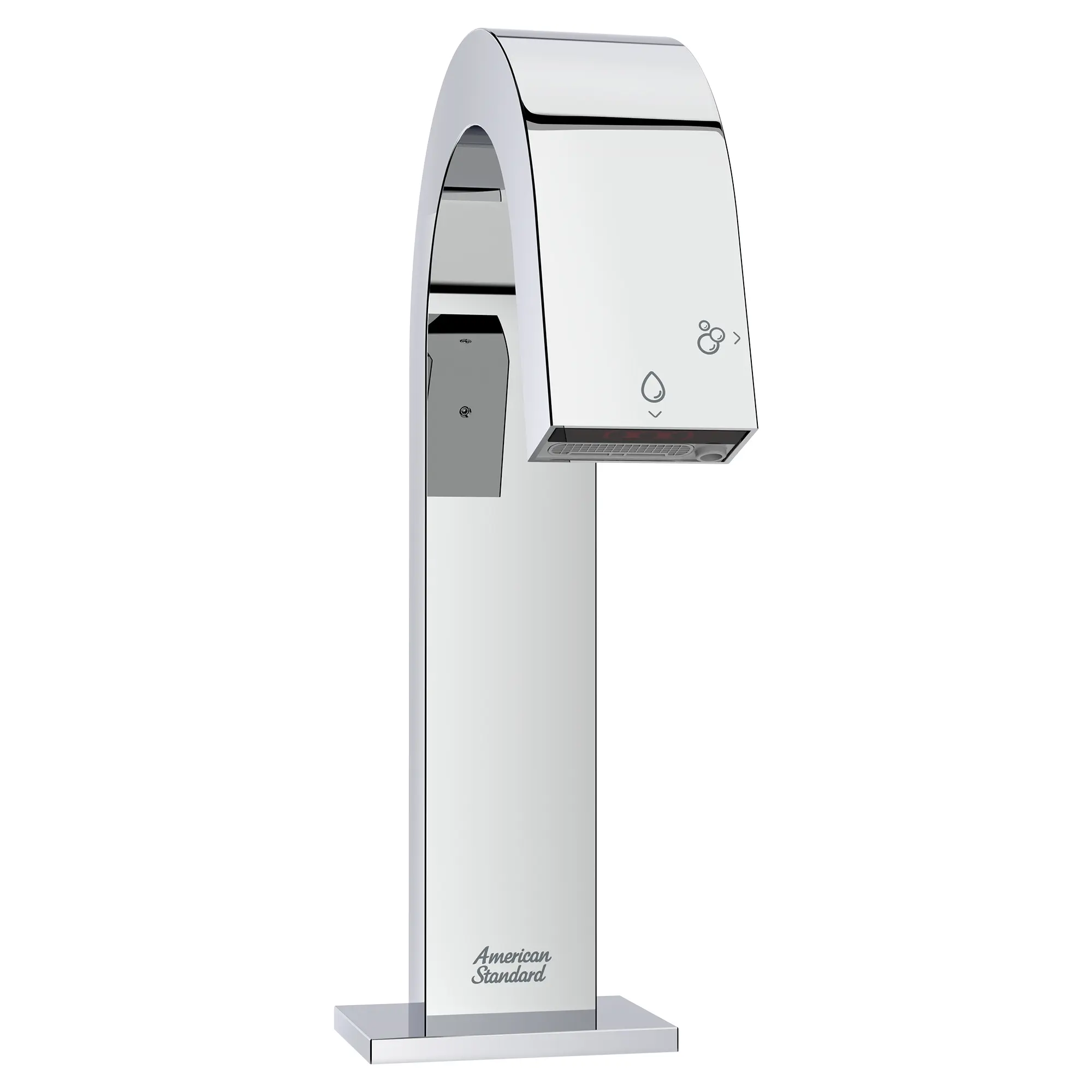

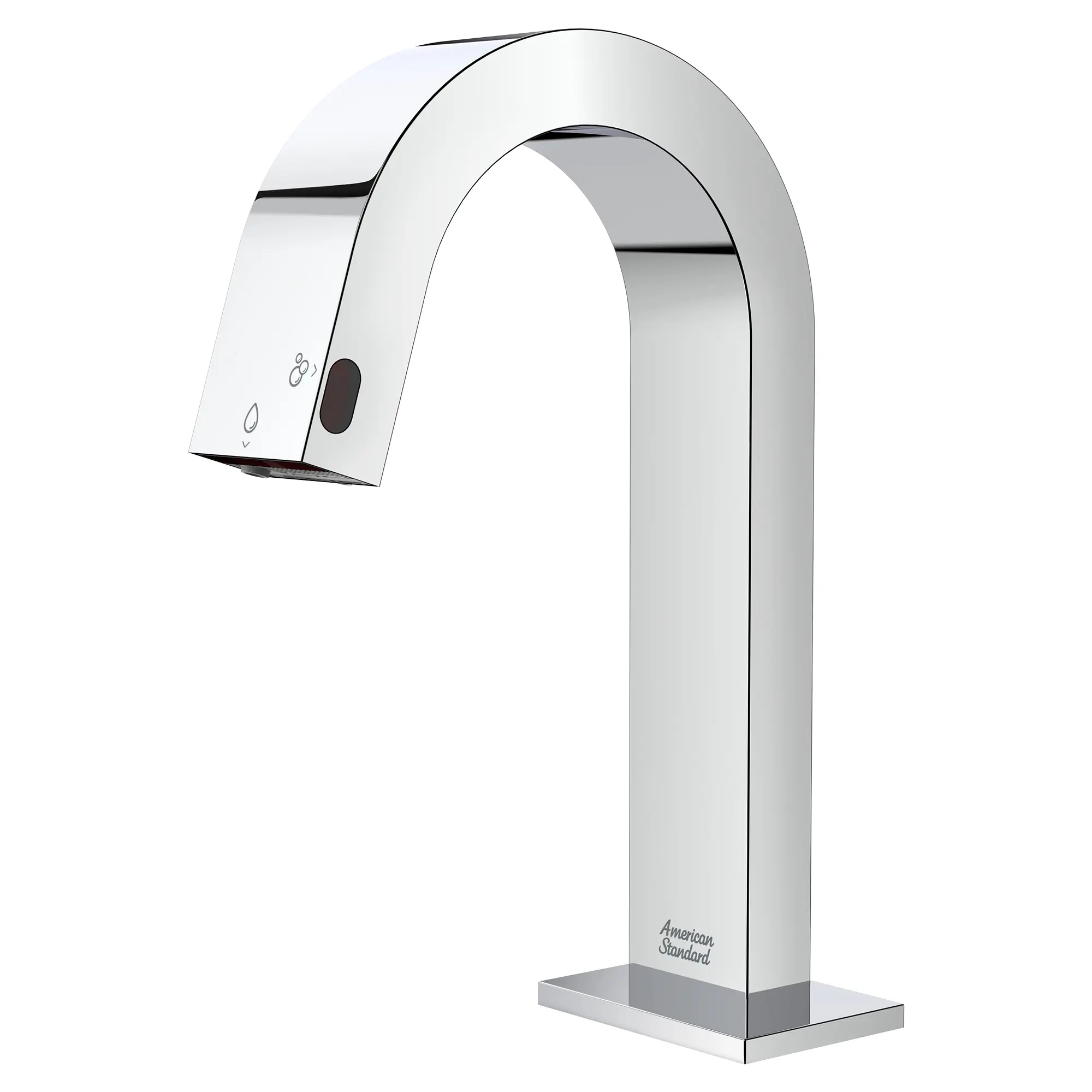

2-In-1 Integral Touchless Faucet/Soap Dispenser, Base Model

The sleek 2-In-1 Integral Touchless Faucet/Soap Dispenser from American Standard is an innovative solution for hygienic, hands-free hand-washing that helps to reduce the spread of germs with its contactless convenience. This unique integrated combination features two infrared sensors: one to dispense water and another to dispense a rich, foam soap. Clean, contemporary design is ideal for new projects and a smart, easy update for retrofit applications, from the industry’s most trusted name in bathroom fittings.

Chrome 776B112.002 DISCONTINUED
List Price: $885.00
ADA Compliant Cal Green CEC Certified Water Efficient WaterSense
Items REQUIRED for Install
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Flexible single post design can be installed on sinks with single-hole (CHO) or 4" centerset. Deck plate sold separately.
  • Two separate infrared sensors
  • To activate, place hand near sensor on side of spout to dispense soap; place hand under front of spout to dispense water
  • Rectangular 1.2 gpm pressure-compensating, vandal-resistant aerator
  • Brass spout and shank
  • Below deck soap and air pump
  • Adjustable foam volume (4 levels)
  • Uses any brand of foam soap that meets viscosity requirements of 1-20 cps; no proprietary soaps needed
  • Includes 1.8L soap bottle with quick release button
  • Base model uses existing American Standard AC power kits, sold separately,Optional 4-inch deck plate, sold separately, for easy installation on sink with 4" centerset
Technical Features
  • Base model uses the existing American Standard Plug-In or Hard-Wired AC power kits (sold separately)
  • Stylish spout dispenses foam soap and water for a hygienic hand wash
  • Touchless operation limits the spread of germs
  • Uses universal bulk foam soap; no proprietary soaps needed
  • Air infused foam soap generator with 4 adjustable foam volume settings
  • Includes 1,800 ml soap bottle with quick disconnect
  • Vandal-resistant brass spout with single-hole installation
  • Vandal-resistant 1.2 gpm/4.5 Lpm rectangular aerator
  • Optional deck plate for 4" (102 mm) centers available
Description
Net Weight
SKU
Color
List Price USD
2-In-1 Integral Touchless Faucet/Soap Dispenser, Base Model
4 lb (1.8 kg)
776B112.002
Chrome (002)
885
Required Components (Not Included)
Selectronic® Hard Wired AC Power Kit
1 lb (0.3 kg)
PK01.HAC
No Finish
140
spacer
Selectronic® Plug-In AC Power Kit
1 lb (0.4 kg)
PK01.PAC
No Finish
102
Optional Components (Not Included)
4-Inch Deck Plate
0 lb (0.1 kg)
7353101P.002
Chrome
50
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Commercial Fittings
CEC Certified: Yes
Color / Finish: Chrome
Department of Energy Certified: Yes
Collections: Selectronic
WaterSense: Yes
Fitting Material: Brass
Spout Type: High Arc
Touchless: Touchless
Fixture or Fitting Material: Brass
Gallons Per Minute (min-max): 1.2 GPM
Hardware Included: Yes
Height: 8-11/16
Width: 1-9/16
Residential or Commercial: Commercial
Subcategory: Sensor Commercial Fittings
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
Download All Design Files
REVIT Files
.rfa icon REVIT File
3D Objects are not currently available for this product
