Evolution

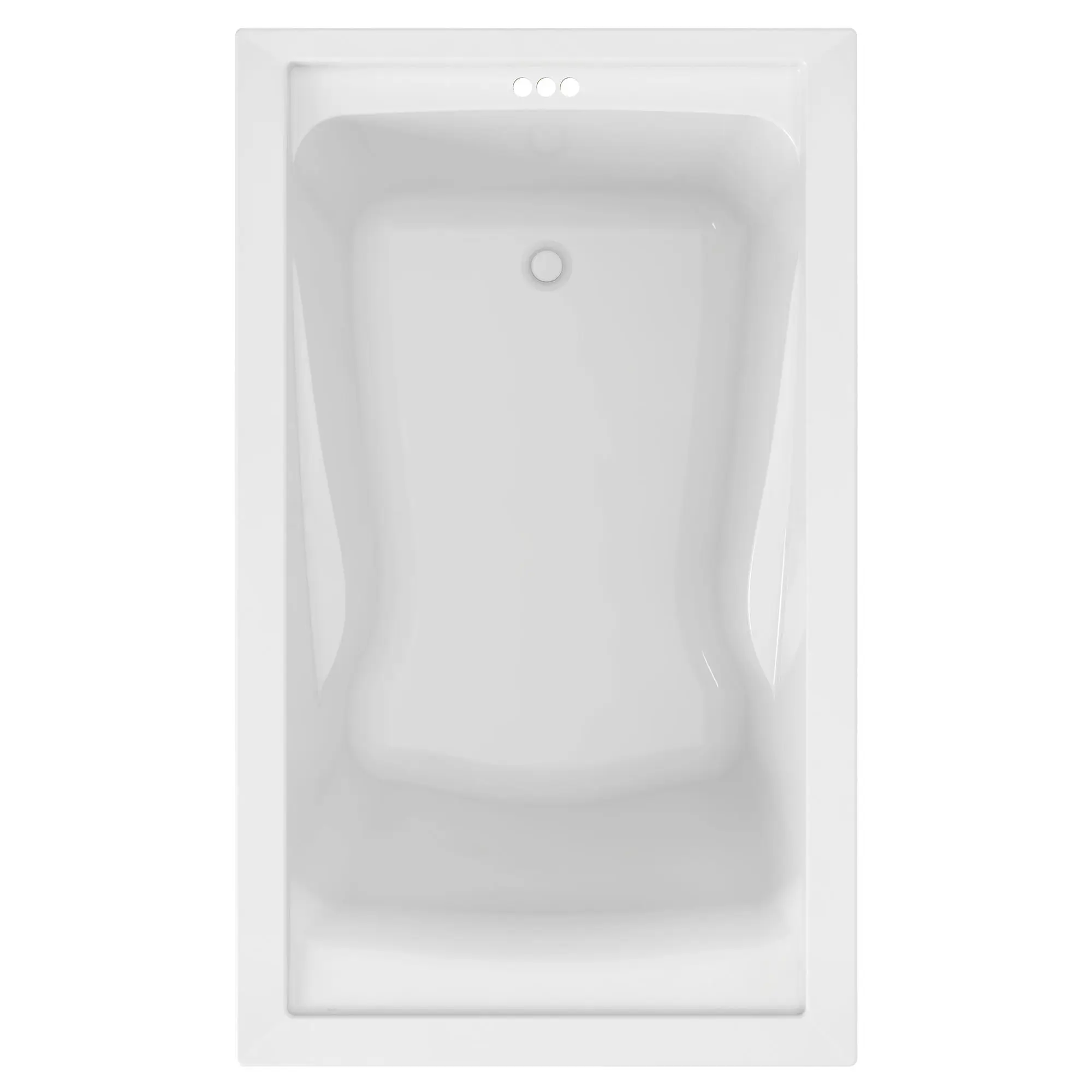

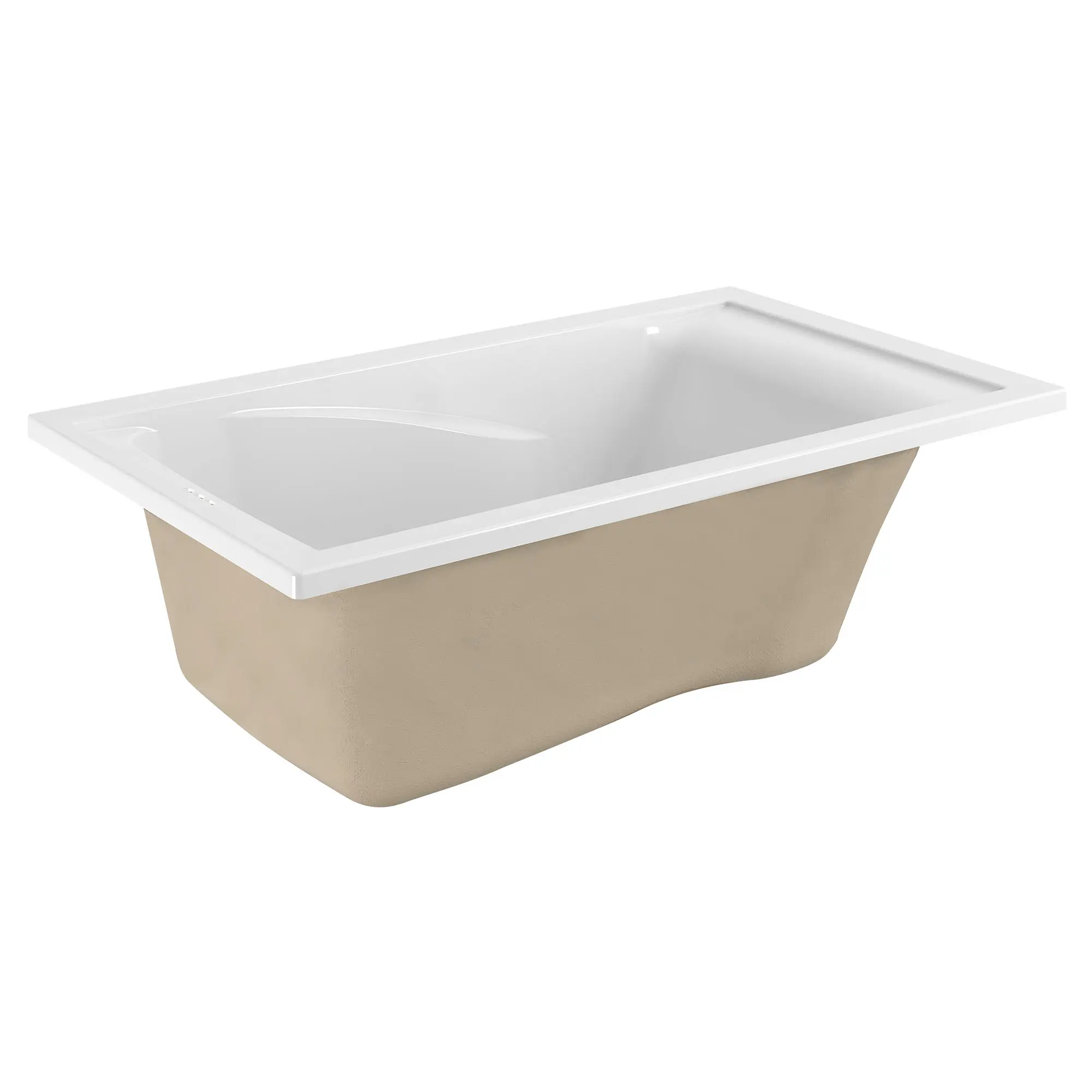

Evolution® 60 x 36-Inch Deep Soak® Drop-In Bathtub

Adapt to greater depths of relaxation. This bathtub from our Evolution® Collection goes well with casual bathroom décor. Made from fiberglass-reinforced acrylic for extra strength, plus a backrest and dual armrests for added comfort. Requires a Deep Soak® Max Drain that allows 3" more water. Drop-in or alcove installation with an optional apron.

White 2771V002.020 DISCONTINUED
List Price: $1,057.00
Enjoy More Rewards
Items REQUIRED for Install
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Acrylic with fiberglass reinforcement
  • Dual molded-in armrests
  • Pre-leveled tub bottom
  • Undermount option
  • Must order Deep Soak Max Drain
  • Nominal Dimensions:
  • 60" x 36" x 21-1/2" (1524 x 914 x 546 mm)
Technical Features
  • Transitional style soaking tub
  • High-quality acrylic with fiberglass reinforcement
  • Easy-to-clean high-gloss surface that’s UV stable and stain resistant
  • Dual molded-in armrests
  • Pre-leveled tub bottom for easier installation
  • Drop-in or undermount option
  • Must order Deep Soak® Max Drain
  • Limited lifetime warranty
Nominal Dimensions: 60 in x 36 in x 21-1/2 in (1524 mm x 914 mm x 546 mm)
Description
Net Weight
SKU
Color
List Price USD
Evolution® 60 x 36-Inch Deep Soak® Drop-In Bathtub
114 lb (51.7 kg)
2771V002.020
White (020)
1057
2771V002.011 *
Arctic (011)
1057
2771V002.222 *
Linen (222)
1246
Required Components (Not Included)
Deep Soak® Max Bathtub Drain
6 lb (2.7 kg)
1599205.002
Chrome
223
1599205.011 *
Arctic
257
1599205.020
White
223
1599205.021 *
Bone
173
1599205.099 *
Polished Brass
241
1599205.222 *
Linen
234
1599205.295
Brushed Nickel
357
Optional Components (Not Included)
Universal Tile Bead Kit
2 lb (1.0 kg)
751755-100
White
87
spacer
EverClean® 60-Inch Apron With Frame
10 lb (4.7 kg)
9261019.020 *
White
425
spacer
Universal Tile Bead Adhesive (Bulk)
21 lb (9.5 kg)
9330014
No Finish
57


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Bath Therapy: Soaking
Brand: American Standard
Category: Bath Tubs
Color / Finish: White
Collections: Evolution
Drain Locaton: Reversible
Fixture Material: High Gloss Acrylic
Fixture or Fitting Material: High Gloss Acrylic
Height: 21-1/2
Length: 60
Length: 60
Width: 36
Width: 36
Residential or Commercial: Residential
Soaking Depth: 18-1/2
Subcategory: Drop in Bath Tubs
Tub Depth: 18-1/2
Tub Exterior Shape: Rectangle
Tub Interior Shape: Hourglass
Tub Type: Drop In Rectangular Bath Tub
Water Depth: 18-1/2
Warranty: Limited Lifetime Residential; 3 Years Commercial
Download All Supporting Documents

Specification Sheet

Installation Instructions
