Evolution

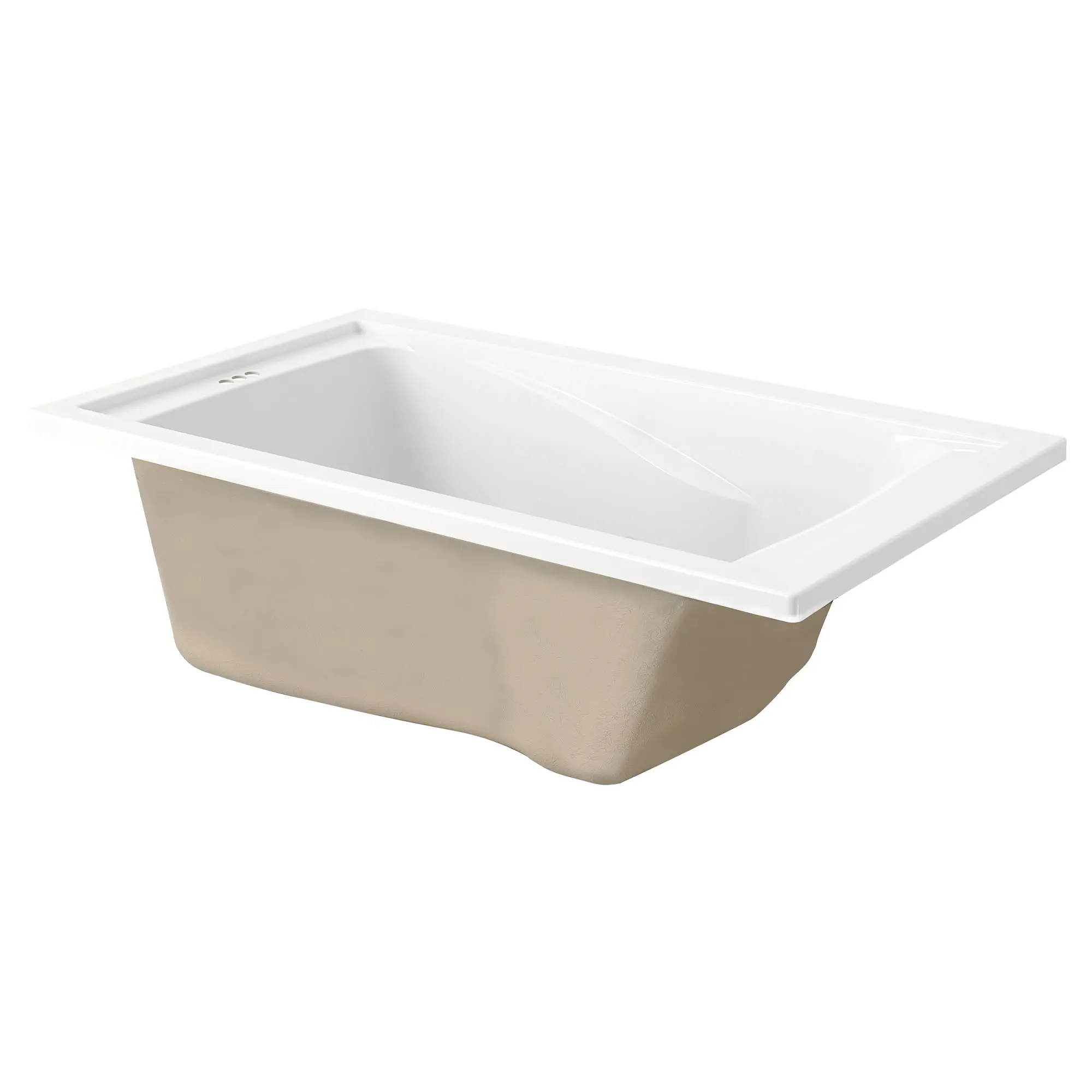

Evolution® 60 x 32-Inch Deep Soak® Drop-In Bathtub

Adapt to greater depths of relaxation. This bathtub from our Evolution® Collection goes well with casual bathroom décor. Made from fiberglass-reinforced acrylic for extra strength, plus a backrest and dual armrests for added comfort. Requires a Deep Soak® Max Drain that allows 3" more water. Drop-in or alcove installation with an optional apron.

Arctic 2422V002.011 DISCONTINUED   Substitution Available (2422V002.020)
List Price: $1,012.00
Enjoy More Rewards
Items REQUIRED for Install
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Acrylic with fiberglass reinforcement
  • Dual molded-in armrests
  • Pre-leveled tub bottom
  • Undermount option
  • Must order Deep Soak® Max Drain
  • Nominal Dimensions:
  • 60" x 32' x 21-1/2" (1524 x 813 x 546 mm)
Technical Features
  • Transitional style soaking tub
  • High-quality acrylic with fiberglass reinforcement
  • Easy-to-clean high-gloss surface that’s UV stable and stain resistant
  • Dual molded-in armrests
  • Pre-leveled tub bottom for easier installation
  • Drop-in or undermount option
  • Must order Deep Soak® Max Drain
  • Limited lifetime warranty
Nominal Dimensions: 60 in x 32 in x 21-1/2 in (1524 mm x 813 mm x 546 mm)
Description
Net Weight
SKU
Color
List Price USD
Evolution® 60 x 32-Inch Deep Soak® Drop-In Bathtub
73 lb (33.1 kg)
2422V002.011 *
Arctic (011)
1012
2422V002.020
White (020)
1012
2422V002.222 *
Linen (222)
1198
Required Components (Not Included)
Deep Soak® Max Bathtub Drain
6 lb (2.7 kg)
1599205.002
Chrome
223
1599205.011 *
Arctic
257
1599205.020
White
223
1599205.021 *
Bone
173
1599205.099 *
Polished Brass
241
1599205.222 *
Linen
234
1599205.295
Brushed Nickel
357
Optional Components (Not Included)
Universal Tile Bead Kit
2 lb (1.0 kg)
751755-100
White
87
spacer
Universal Tile Bead Adhesive (Bulk)
21 lb (9.5 kg)
9330014
No Finish
57
Substitutions
Evolution® 60 x 32-Inch Deep Soak® Drop-In Bathtub
73 lb (33.1 kg)
2422V002.020
White
1012


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Bath Therapy: Soaking
Brand: American Standard
Category: Bath Tubs
Color / Finish: Arctic
Collections: Evolution
Drain Locaton: Reversible
Fixture Material: High Gloss Acrylic
Fixture or Fitting Material: High Gloss Acrylic
Height: 21-1/2
Length: 60
Length: 60
Width: 32
Width: 32
Residential or Commercial: Residential
Soaking Depth: 18-1/2
Subcategory: Drop in Bath Tubs
Tub Depth: 18-1/2
Tub Exterior Shape: Rectangle
Tub Interior Shape: Hourglass
Tub Type: Drop In Rectangular Bath Tub
Water Depth: 18-1/2
Warranty: Limited Lifetime Residential; 3 Years Commercial
Download All Supporting Documents

Specification Sheet

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
REVIT Files
.rfa icon REVIT File
3D Objects are not currently available for this product
