Greenbrook

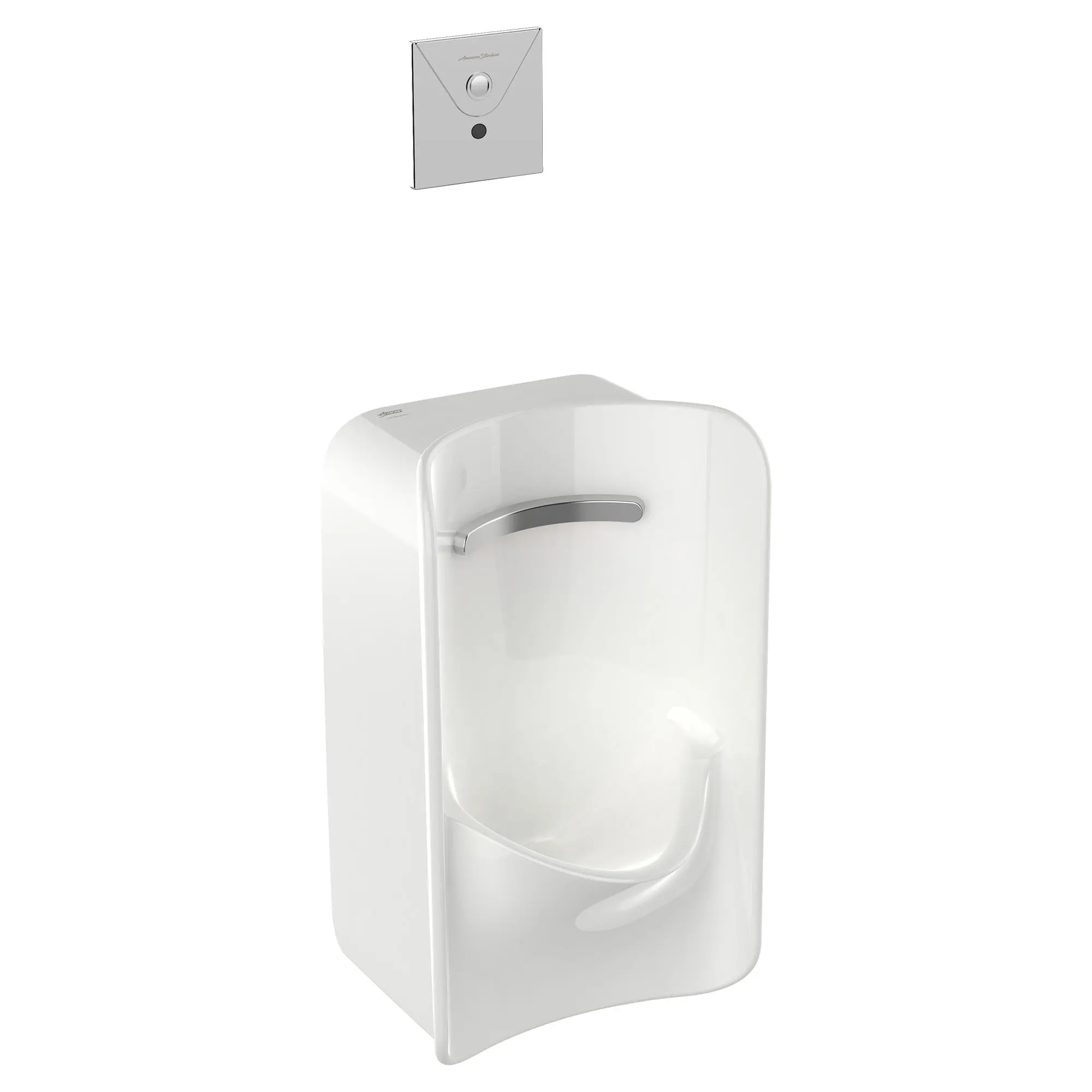

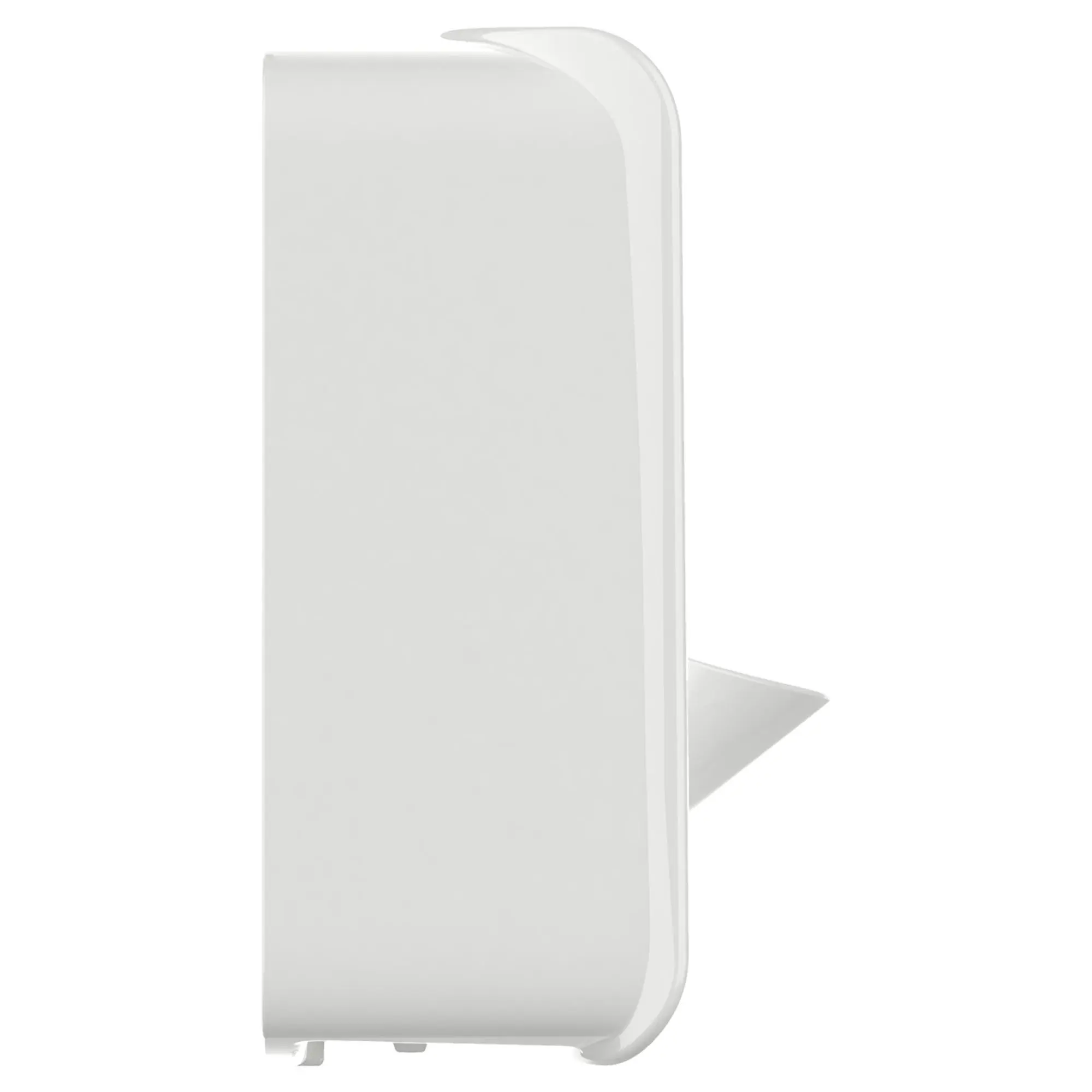

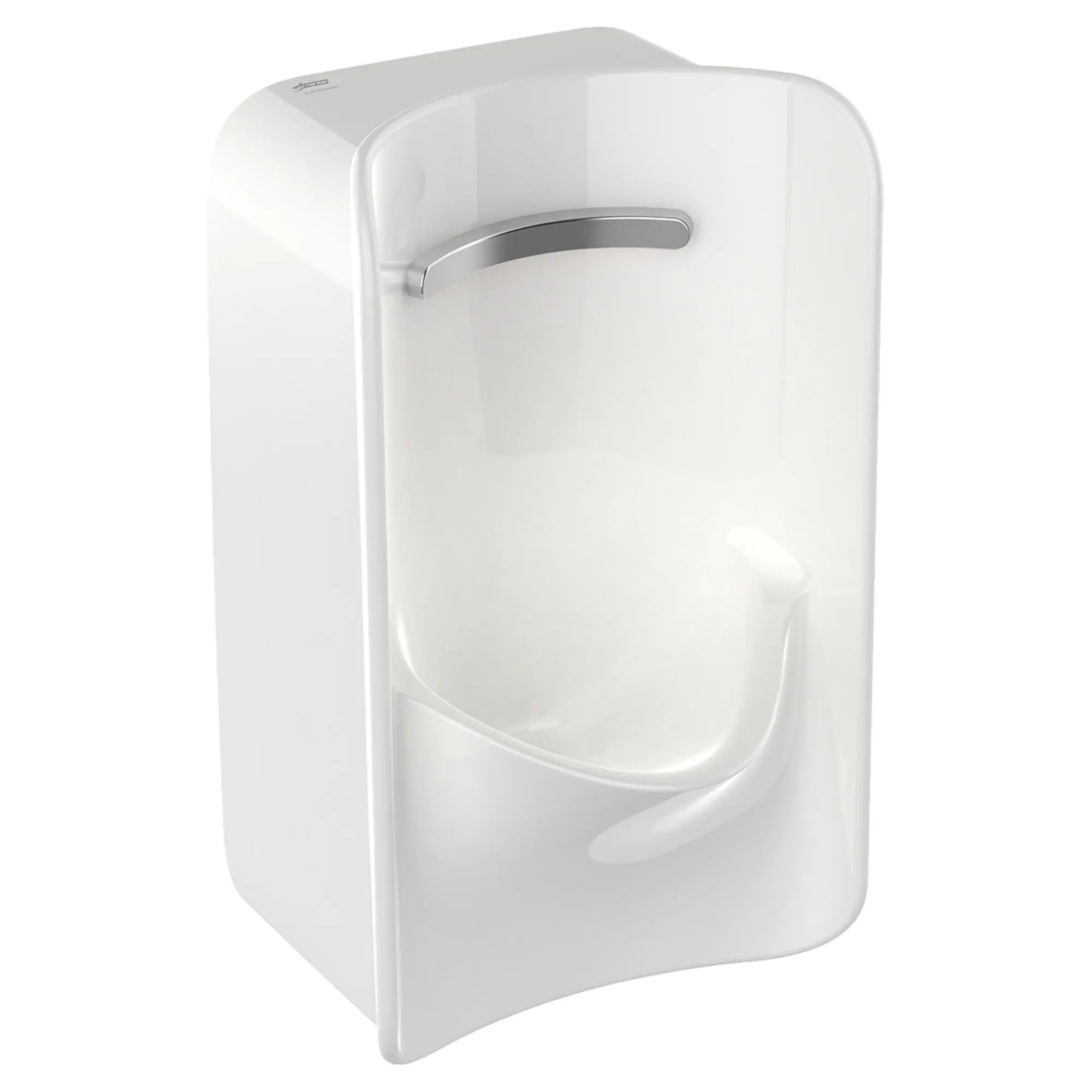

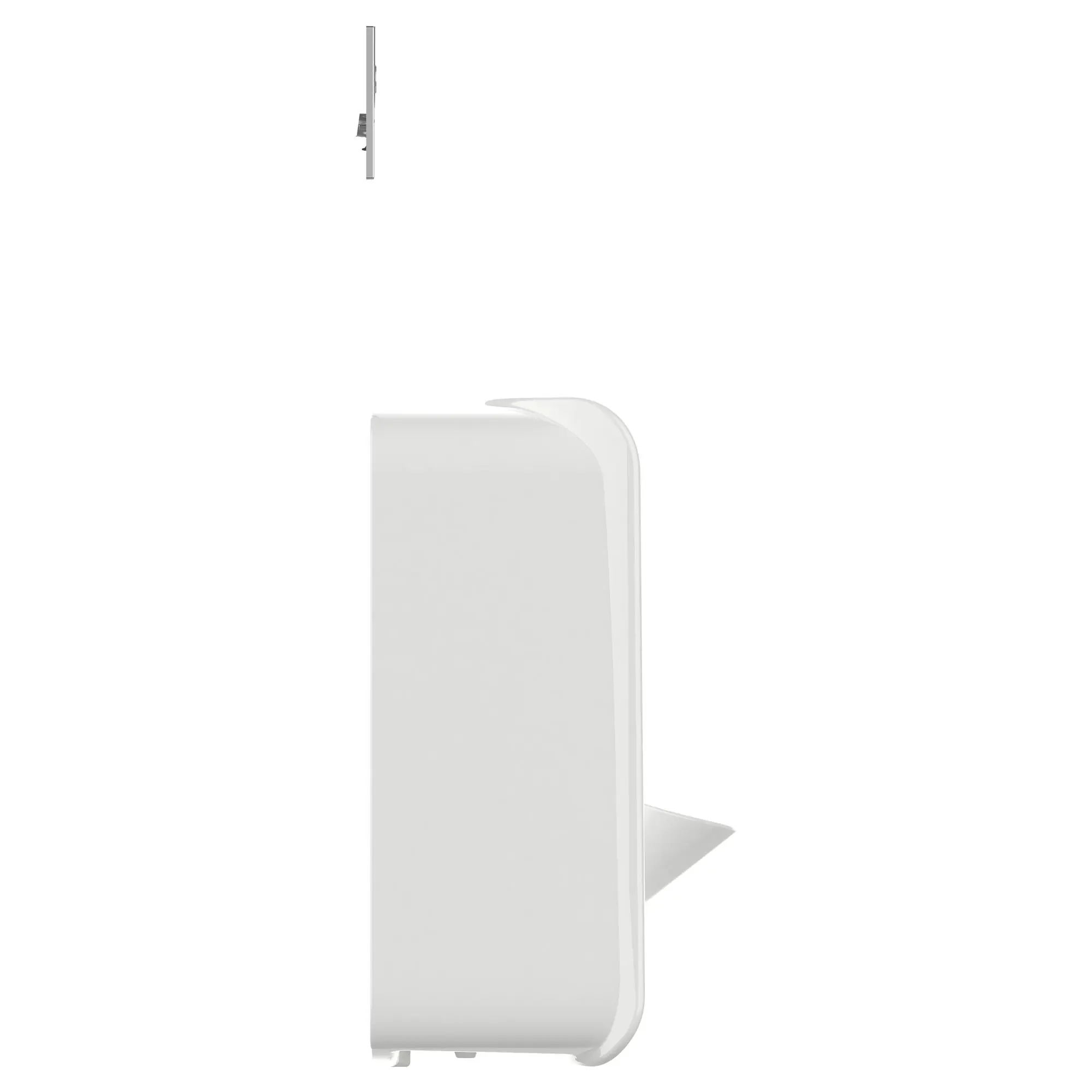

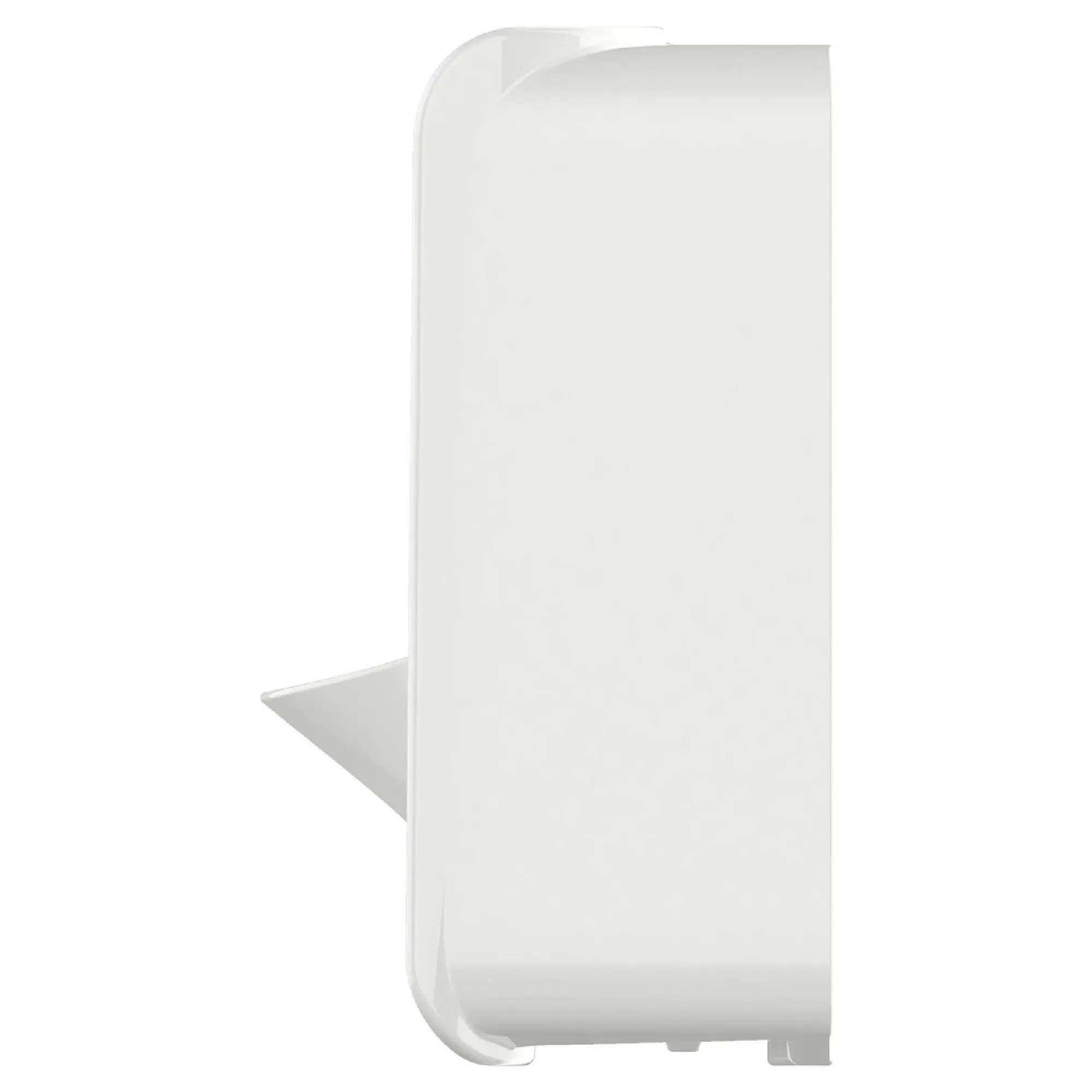

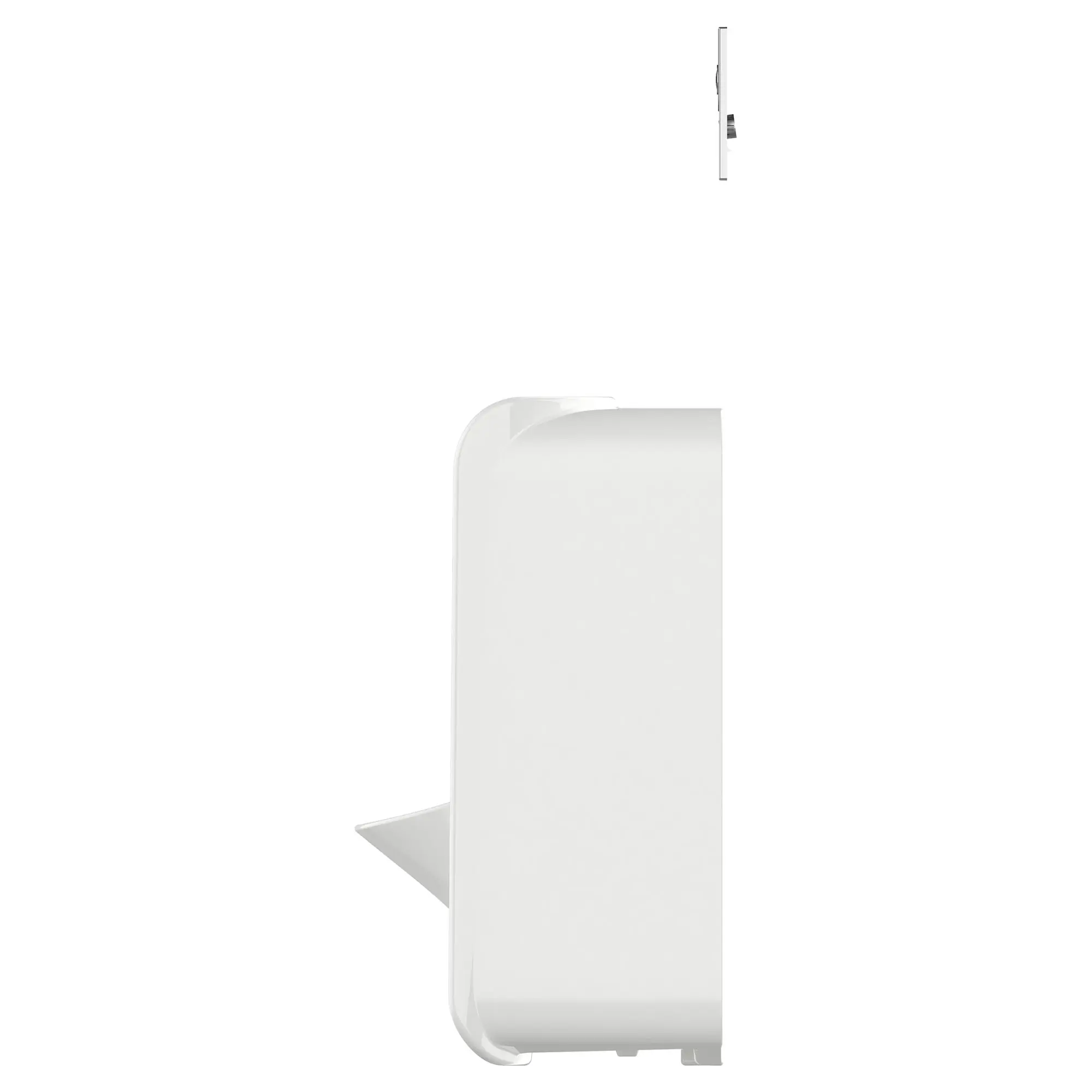

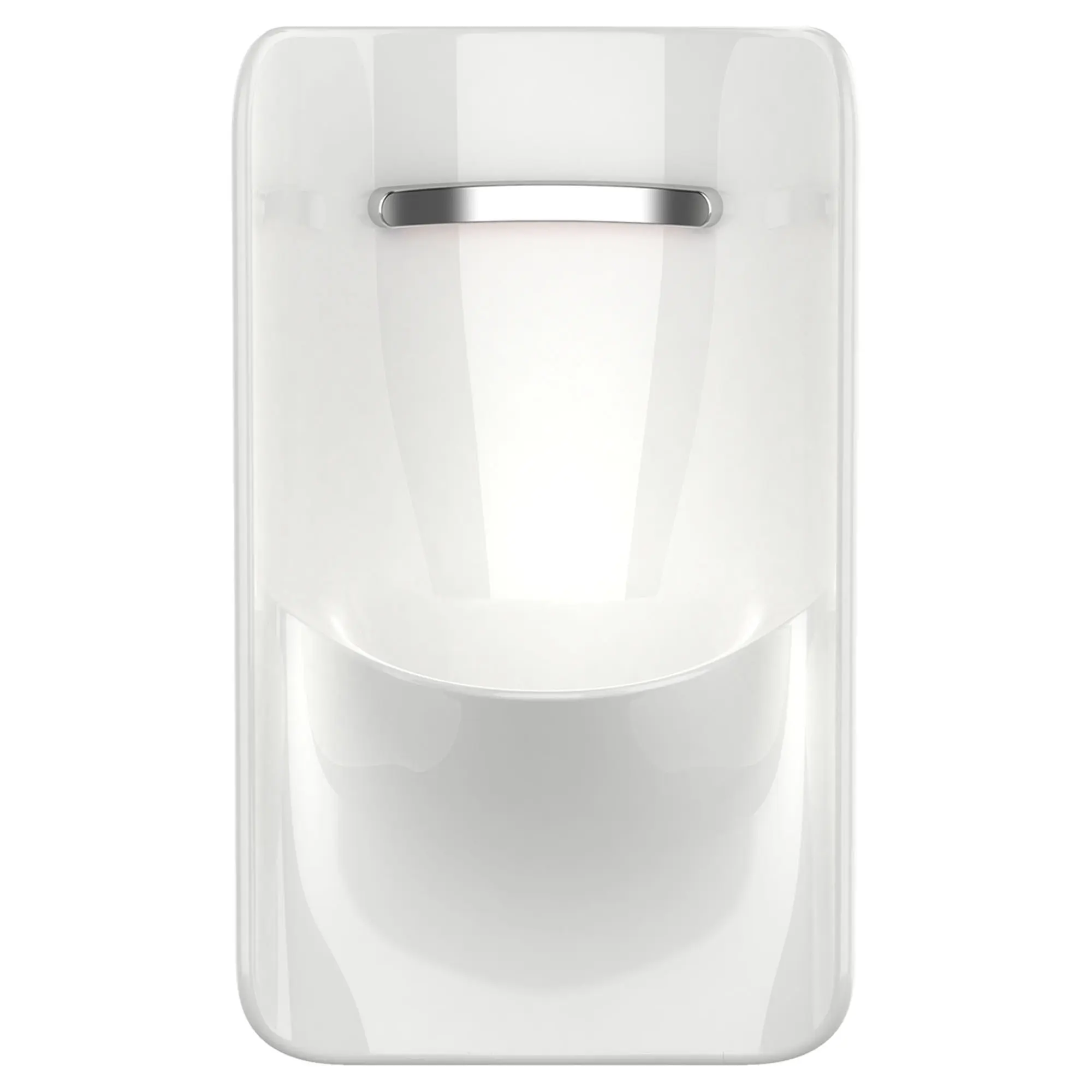

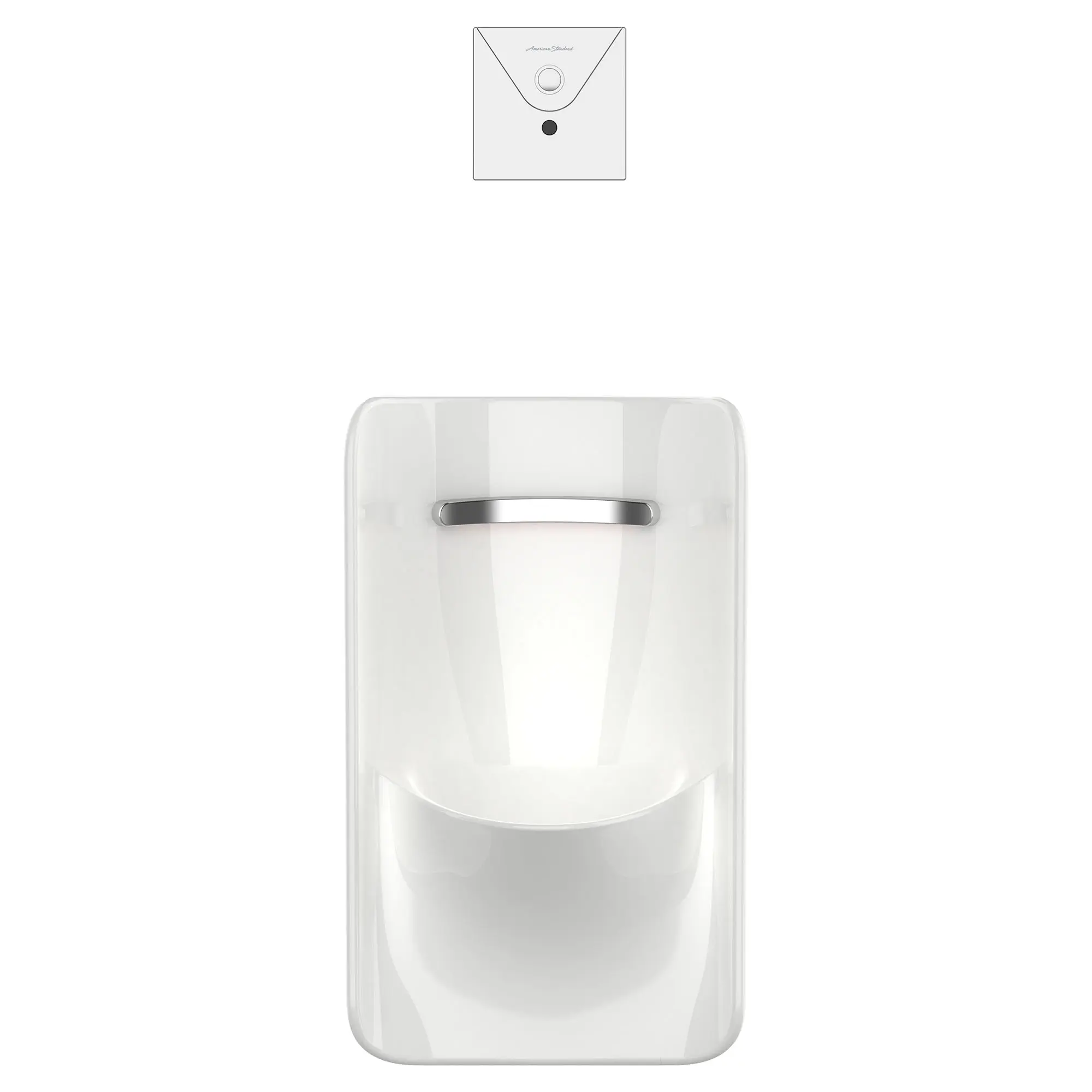

Greenbrook® 0.125 – 0.5 gpf (0.47 – 1.9 Lpf) Back Spud Urinal With EverClean®

The Greenbrook Urinal from American Standard is defined by sleek curves designed for practicality and a clean, modern aesthetic. Optimized surface contours and water flushing spreader ensure a thorough rinse and superior splash protection.

White 6517001EC.020 DISCONTINUED
List Price: $857.00
ADA Compliant Cal Green CEC Certified WaterSense Everclean Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Highly aesthetic vitreous china urinal with large footprint
  • High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 0.5 gpf (0.47 Lpf – 1.9 Lpf)
  • Urinal has optimized surface contours and water flushing spreader that rinses inverted back wall for superior splash protection
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
  • 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
  • Two wall hangers included
  • Fixture only
  • Chrome plated non-metallic strainer included
Technical Features
  • Highly aesthetic vitreous china urinal with large footprint
  • High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 0.5 gpf (0.47 Lpf – 1.9 Lpf)
  • Urinal has optimized surface contours and water flushing spreader that rinses inverted back wall for superior splash protection
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
  • Two wall hangers included
  • Fixture only
  • Chrome plated non-metallic strainer included
Nominal Dimensions: 15 in x 16-1/8 in x 27-1/2 in (381 mm x 410 mm x 699 mm)
Description
Net Weight
SKU
Color
List Price USD
Greenbrook® 0.125 – 0.5 gpf (0.47 – 1.9 Lpf) Back Spud Urinal With EverClean®
71 lb (32.1 kg)
6517001EC.020
White (020)
857
Optional Components (Not Included)
Vandal-Resistant Stainless Steel Strainer
0 lb (0.2 kg)
7381755-200.0020A
Chrome
36
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Urinals
CEC Certified: Yes
Color / Finish: White
Department of Energy Certified: Yes
Collections: Greenbrook
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Gallons Per Flush (min-max): 0.125 - 0.5 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Height: 27-1/2
Length: 15
Length: 15
Width: 16-1/8
Residential or Commercial: Commercial
Subcategory: Back Spud Urinals
Warranty: 1 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.zip icon 2D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
